Campbell 107 Instruction Manual

Model 107 Temperature Probe
7
Tools required for installing a radiation shield to a tripod or tower include:
• 1/2-inch open end wrench
• UV resistant cable ties
• adjustable wrench with a minimum 1-1/2 inch jaw size

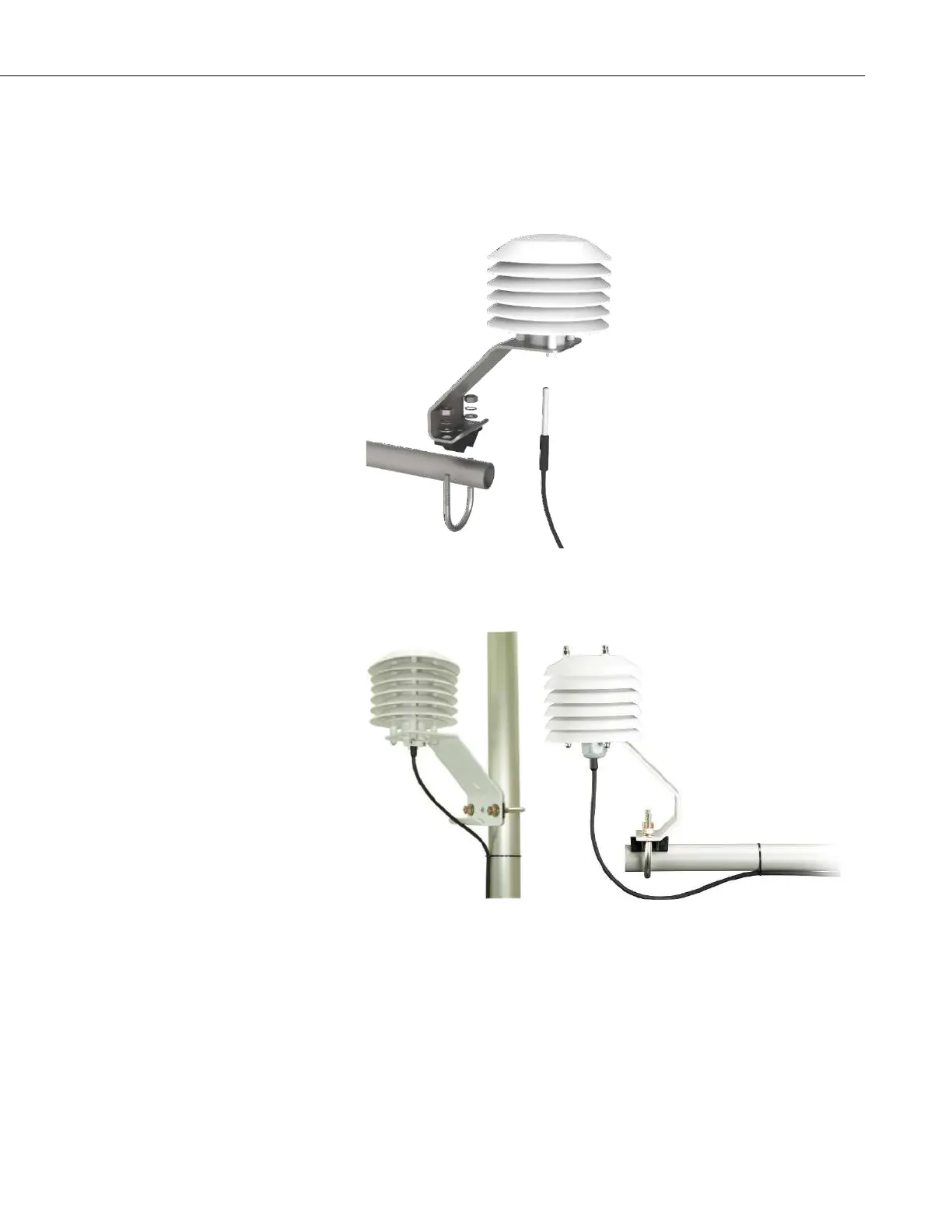

FIGURE 7-1. Installing a 107 and 41303-5A Radiation Shield on a
CM200-Series Crossarm
FIGURE 7-2. 107 and 41303-5A Radiation Shield on a tripod mast
(left). 107 and RAD06 Radiation Shield on a CM200-Series
Crossarm (right).
The 107 is held in the 41303-5A radiation shield by a mounting clamp at the
bottom (FIGURE 7-1 and FIGURE 7-2 left). Loosen the mounting clamp
screws, and insert the probe through the clamp. Tighten the screws to secure
the sensor, and route the sensor cable to the instrument enclosure.
