4. Preparations for start-up
10 11
4. Preparations for start-up
ENGLISH ENGLISH

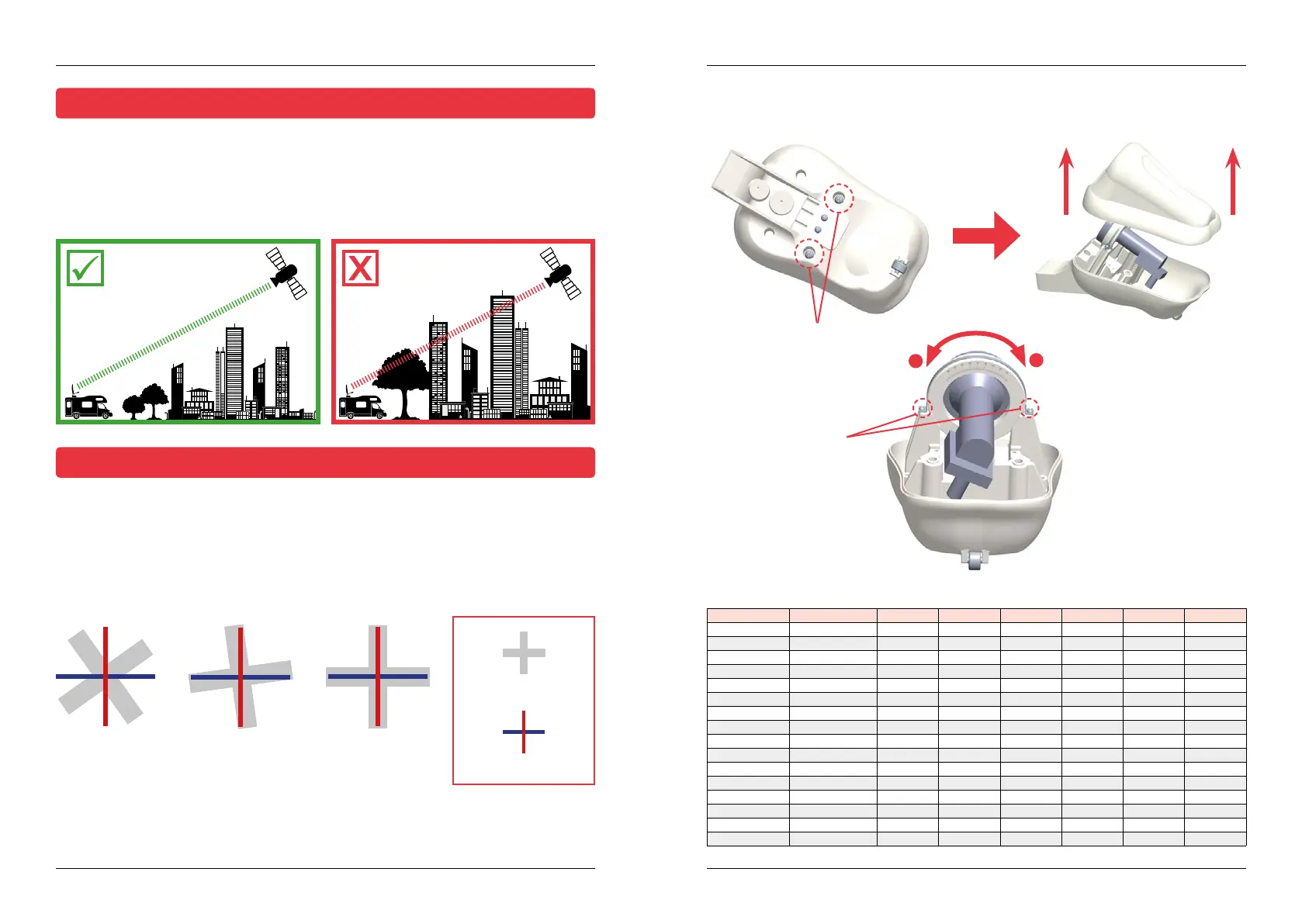

Objects such as trees, bridges and large houses located at the satellite‘s angle of in-
cidence cause the signal to be lost. Heavy rain, clouds, snow or ice can affect the recep-
tion quality. If the satellite signal is lost due to severe weather conditions, the current
program of the receiver will be stopped (the image will freeze or disappear). When the
weather conditions allow good reception again, the TV picture will be restored.
Signals in vertical (red) and horizontal (blue) lines have an offset of exactly 90º to each
other. Due to the different positions of the satellites, depending on your location, it is
possible that the signals do not hit the LNB exactly vertically and horizontally. To adjust
this, you must place the LNB in the correct position to the transmitted signal. This
adjustment to the LNB is called a „skew setting“. The following figure shows the optimal
adjustment of the LNB. The better the match, the better the reception.
If you are in Central Europe, no skew settings are usually necessary. To adjust the skew
setting, proceed as follows:
Overview of Skew settings for european capitals
1. Loosen the screws on the
underside of the LNB.
poor
reception
good
reception
best
reception
LNB position
Satellite signal
Country Town Astra 1 Astra 2 Astra 3 Hotbird Thor Eutelsat 9B
Bulgaria Sofia +11.4 +1.7 +6.8 +11.0 +24.0 +15.0
Denmark Copenhagen +2.5 -3.4 -0.4 -0.3 +9.1 +2,4
Finland Helsinki +10.3 +5.2 +7.9 +6.8 +14.2 +9.0
France Paris -7.2 -13.9 -10.5 -9.2 +2.9 -5.8
Germany Berlin +2.6 -4.1 -0.7 +0.3 +10.8 +3.3
England London -7.8 -13.7 -10.7 -10.3 +0.6 - 7.1
Greece Athens +12.7 +1.3 +7. 3 +13.4 +28.1 +18.0
Hungary Budapest +6.9 -1.3 +3.0 +5.6 +17.5 +9.1
Italy Rome -0.4 -9.8 -5.0 -0.6 +14.6 +3.9
Poland Warsaw +8.4 +1.5 +5.1 +6.1 +16.2 +9.1
Portugal Lisbon -23.7 -30.2 -27.0 -25.3 -10.1 -21.2
Spain Madrid -17.6 -24.8 -21.2 -18.7 -3.2 -14.5
Belgium Brussels -4.8 -11.2 - 7. 9 - 7. 0 +4.4 -4.1
Sweden Stockholm +6.4 +1.1 +3.8 +3.0 +11.0 +5.4
Switzerland Bern -3.8 -11.3 -7.5 -5.2 +7. 8 -1.4
Austria Vienna +4.5 -3.4 +0.7 +3.0 +15.0 +6.5
4.1 Choice of location
4.2 Manual skew setting
2. Open the LNB cover.
3. Loosen the two
screws on the LNB
holder.
4. Now turn the LNB to the
left or right to set the
correct degree.
5. Then retighten the
screws and close the LNB
cover.
+–
