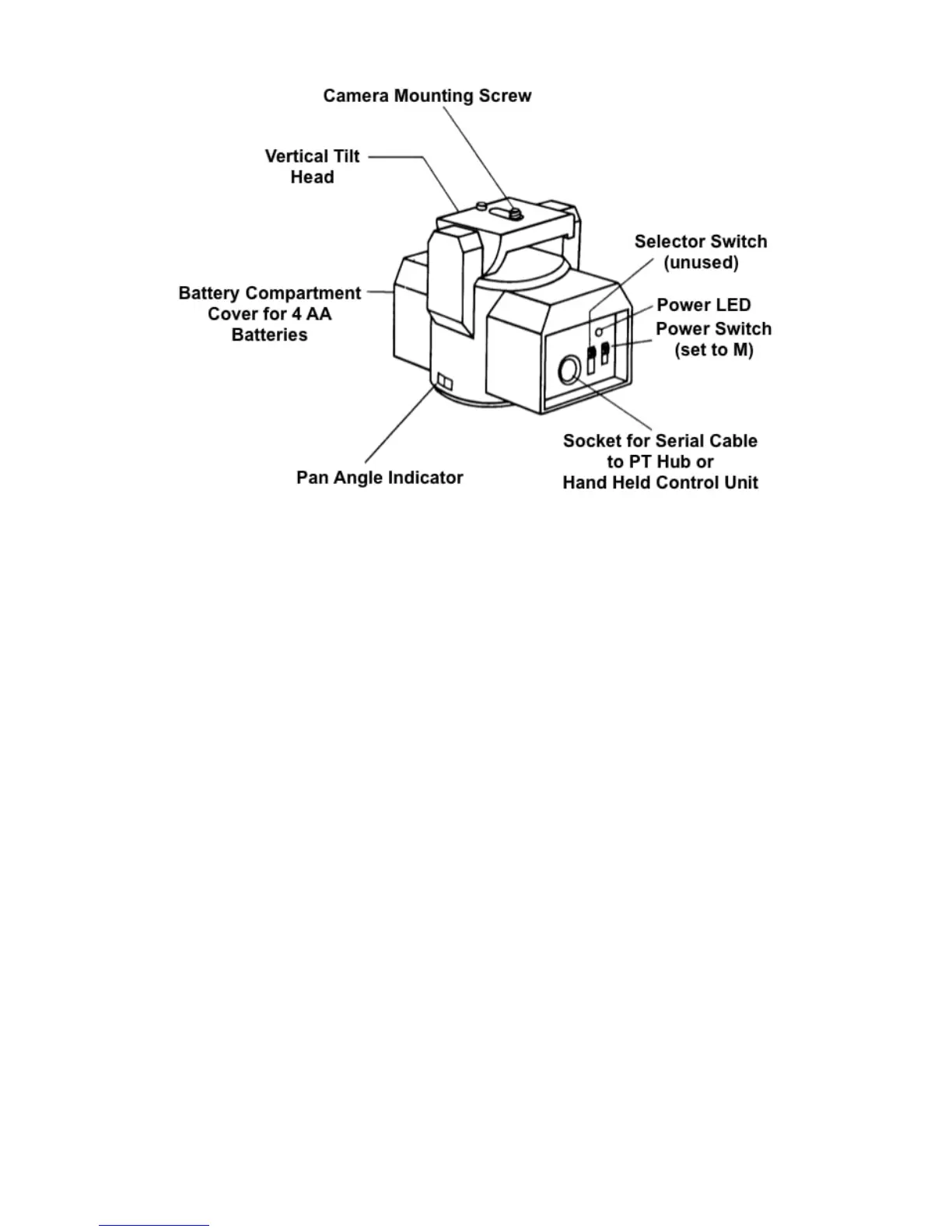

Battery Compartment - Open the battery compartment by sliding the cover downward and
then lifting it outward. Insert 4 AA batteries oriented according to the markings in the battery
compartment. The MP-360 may also be powered by an AC adapter.!
•
Power LED - Green when power is on (cannot be used to determine battery level)!
•
Power Switch - To turn on, set to “M”!
•
Camera Mounting Screw - 1/4 20 mounting screw!
Specifications!
•
Power Source: 4 AA batteries or A/C adapter (neither included)!
•
Vertical Tilt: +/- 15 degrees!
•
Horizontal Pan: 360 degrees with unlimited rotation!
•
Maximum Camera Weight: 6 lb (2.7 kg)!
•
Size (LxHxW): 5.75 x 4.5 x 4 inches (145 x 115 x 103 mm)!
•
Weight: 1.75 lb (800 g) !
Setup
Required Parts:!
•
CamRanger Mini!
