ADJUSTMENTS

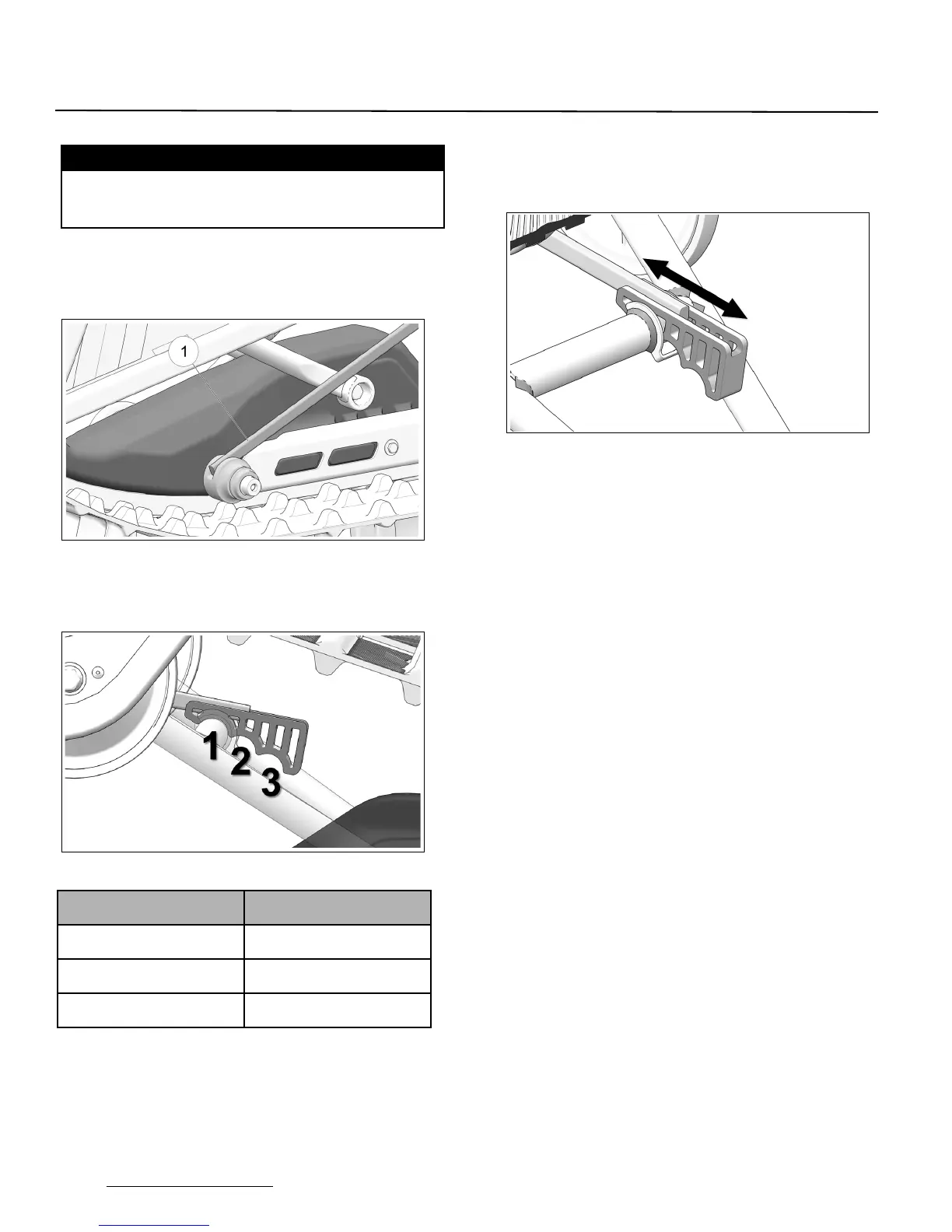

• Using an appropriate tool, lift the long end of the
spring (1) out of its groove to release the tension.
See
Figure 15.
Figure 15
Torsion Spring tension cam positions
Figure 16
• Position Tension Cam in its seat on the
suspension arm. Move cam forward or
backward depending on the level of stiffness
desired in the suspension.
See
Figure 17.
Figure 17
• Using an appropriate tool, re-install the long
end of the spring in its groove in the spring
support bushing.
• Depress the suspension and re-insert limiter
cable loop in its groove in the spring support
bushing.
• Re-install wheel on its shaft. Tighten bolt to 27
N-m (20 lb-ft) of torque.
CAUTION: Each time the rear suspension is
adjusted, check rubber track tension and adjust it
if necessary.
WARNING
Suspension spring tension is very high. Handle
with care and use appropriate tools to avoid any
risk of injury during spring calibration.
CAM POSITION SPRING PRELOAD
1Minimum
2Medium
3Maximum
