5
OPERATING INSTRUCTIONS
TORQUE SPECIFICATIONS
Refer to the exploded views at the end of the
Manual to obtain torque specifications applied to
bolts at important points on the System.
NOTE: Use a thread locker (Loctite 263 type or its
equivalent) at indicated places in the exploded
views of the system.
STORAGE
CAUTION: Contaminants can alter and corrode the
moving parts of the System during storage.
Performing the prescribed maintenance before
storing the System is strongly recommended.

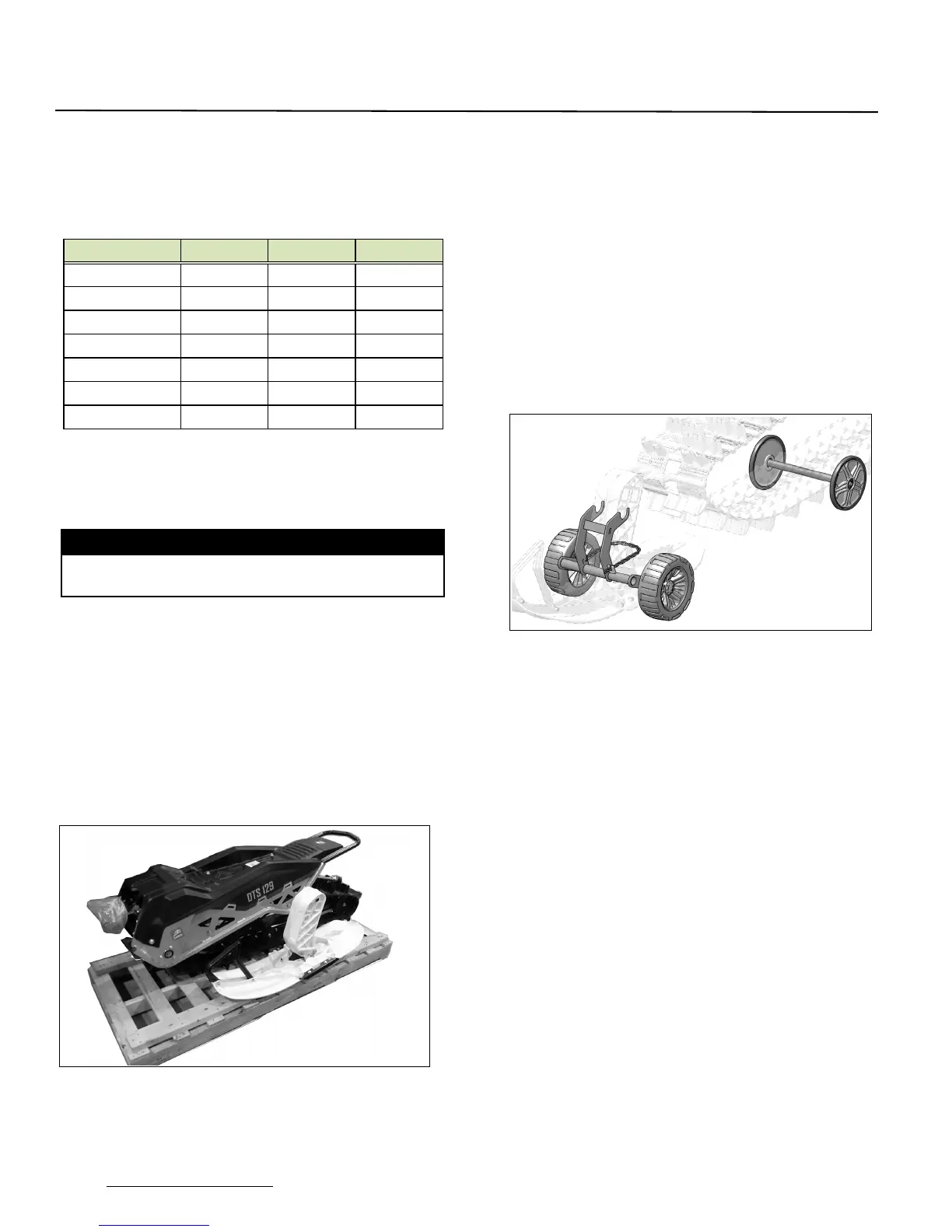

The best way to store the System is to lay it down
on a wood pallet, away from direct sunlight.
Figure 3
NOTE: Camso recommends releasing track tension
during storage period.
NOTE: Camso recommends setting torsion spring at
lowest tension position during storage period.
ACCESSORIES
• A Wheel kit is available to help move your
motorcycle fitted with a DTS 129 Conversion kit.
NOTE: The Wheel kit, shown below in Figure 4, can be
purchased through an authorized Camso dealer.
Part #7200-00-9050.
Figure 4
DIMENSION GRADE N•m lb-ft
M6-1.0 GR 8.8 10 N•m 7 lb-ft
M8-1.25 GR 8.8 25 N•m 18 lb-ft
M8-1.25 GR 10.9 33 N•m 24 lb-ft
M10-1.5 GR 8.8 50 N•m 37 lb-ft
M10-1.5 GR 10.9 70 N•m 52 lb-ft
M12-1.75 GR 8.8 90 N•m 66 lb-ft
M12-1.75 GR 10.9 125 N•m 92 lb-ft
WARNING
Overtightening bolts may damage parts and safety
features may be affected.
