SUSPENSION - LIMITER CABLE
ADJUSTMENT
Upon reception of the Conversion kit, you will find
the suspension limiter cables adjusted to the
short position. To adjust limiter cables to the long
position, proceed as follows:
• Use a 3 mm Allen key to remove one of the
two bolts (1) that lock the limiter cable on the
upper cam. Figure 18.

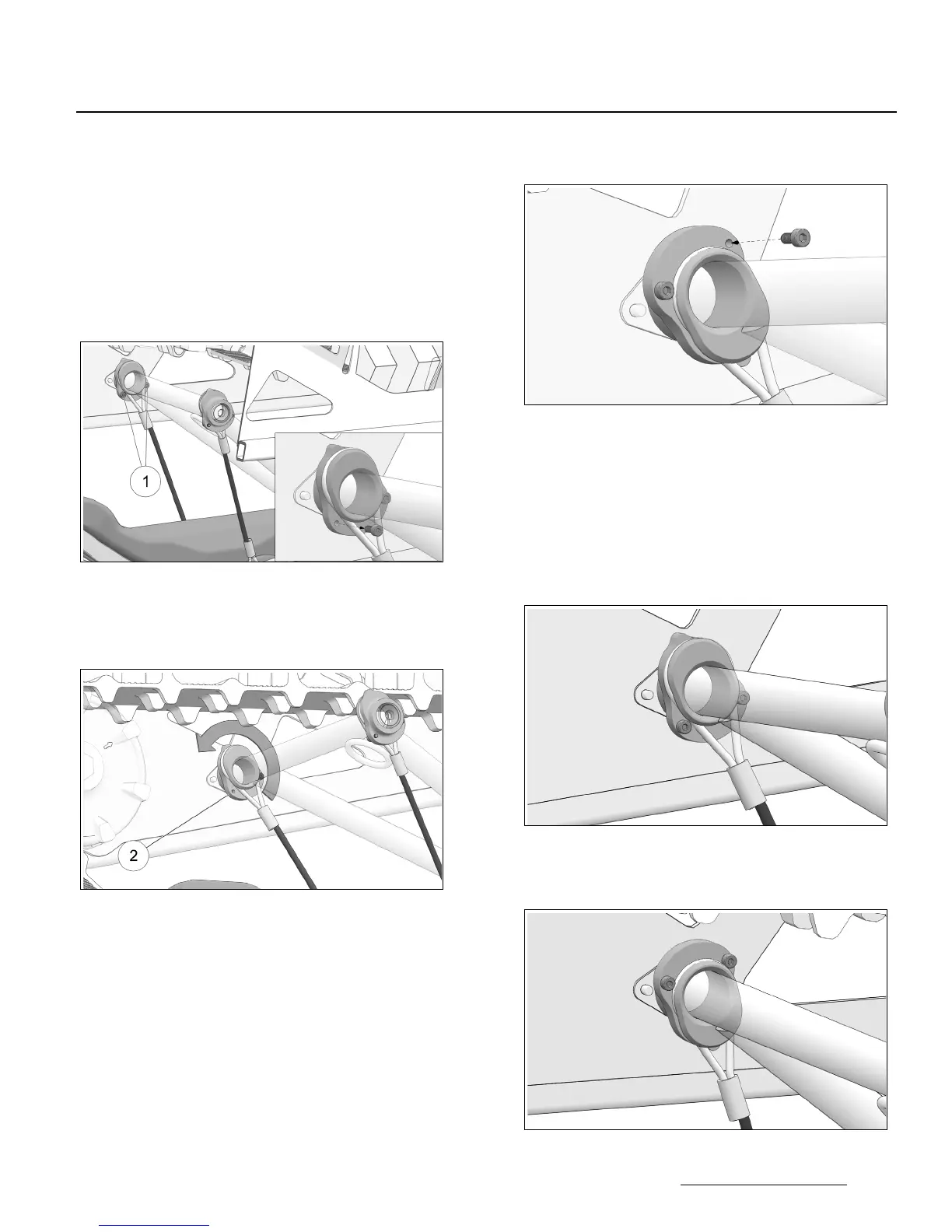

Figure 18
• Rotate upper cam (2) 180°. See reference
figures and BASIC TUNING to identify the
preferred cam position. See Figure 19.
Figure 19
• Re-install bolt that was removed to complete
adjustment. Figure 20.
Figure 20
CAUTION: Always set cams to the same position
on both sides of the suspension.
BASIC TUNING
• Short position: powder snow conditions.
Figure 21.
Figure 21
• Long position: hard-packed snow conditions.
Figure 22.
Figure 22
