27
MAINTENANCE
Urethane cones (Stabilizers)

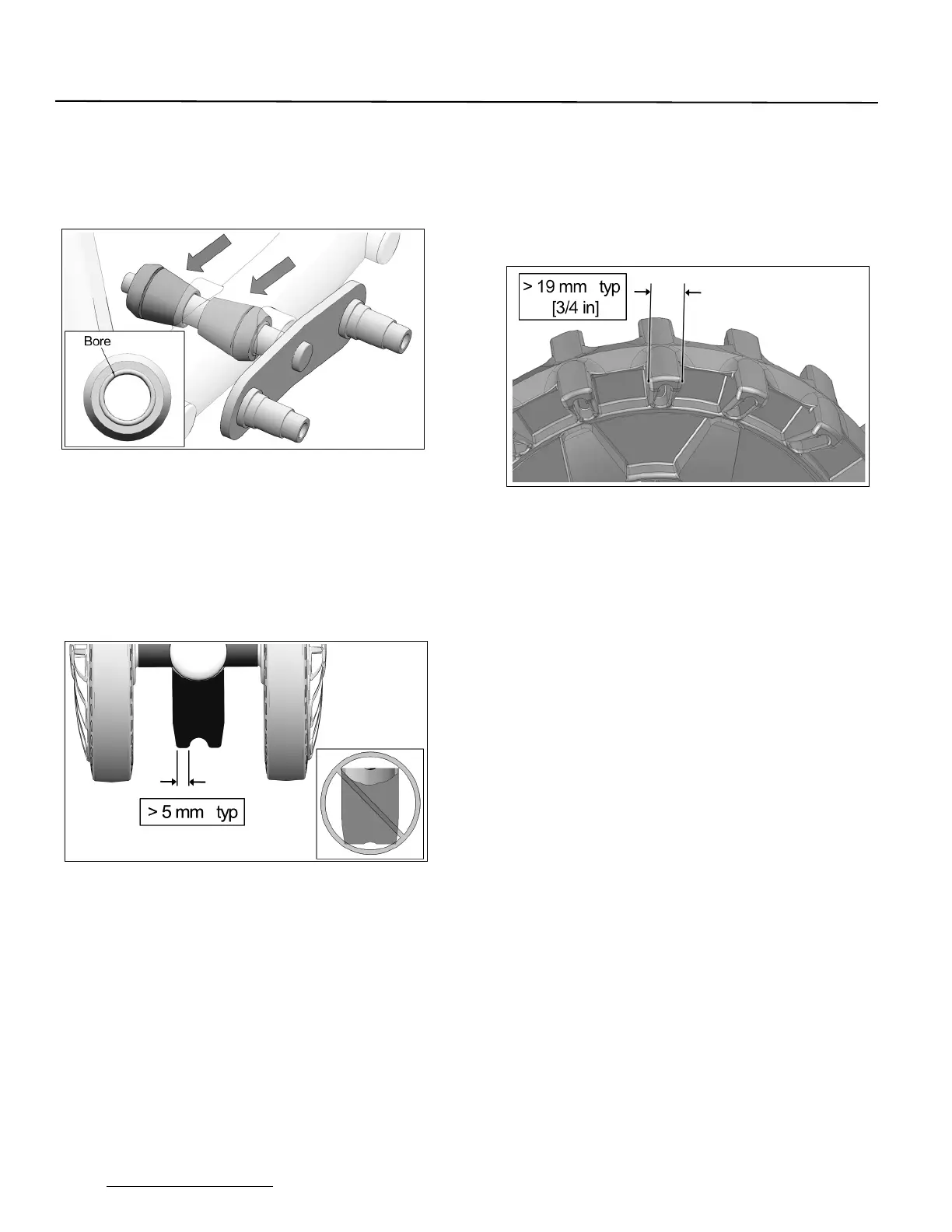

Check condition of urethane cones mounted on
stabilizer shaft. Replace both of them, if they
show oval wear on the bore, cracks or are
deformed. See Figure 41.
Figure 41
Track guide
Verify wear on Track guide by measuring width of
guide rails. If rail dimensions, illustrated in Figure
42, are less than 5 mm at any point along Track
guide, replace part. If guide is so worn that
concave shape is no longer visible, replace part.
Figure 42
CAUTION: An overly worn Track guide could
cause premature wear
and damage
on other
guidance components of the System.
Sprocket
Check wear on Sprocket by measuring sprocket
teeth as illustrated on Figure 43. Replace
sprocket if dimensions are less than 19 mm.
CAUTION: Excessive wear could lower track drive
efficiency and reduce System performance.
Figure 43
CAUTION: In order that wear on sprockets be
produced evenly across all 4 sprockets, the
vehicle should be driven in 4x4 mode, especially in
abrasive conditions.
