3. Operating Instructions
The purpose of this section is to familiarize you with the operation and controls of the
Model 2015A Amplifier/TSCA so that best performance can be obtained. Since it is
difficult to determine the exact system configuration in which the module will be used,
explicit operating instructions cannot be given. However, if the following procedures
are carried out, you will gain sufficient familiarity with this instrument to permit its
proper use in the system at hand.
Spectroscopy System Operation
Setup
A block diagram of a typical Canberra gamma spectroscopy system is shown in Figure
5.
1. Prior to installation and setup, the internal jumper plugs should be set to their
desired positions. See Figure 4 (Internal Controls) on page 6.
The Z
OUT
jumper plug controls the output impedance of the front panel
(only) AMP OUTPUT. The output impedance can be changed from 0 ohms
7
Spectroscopy System Operation

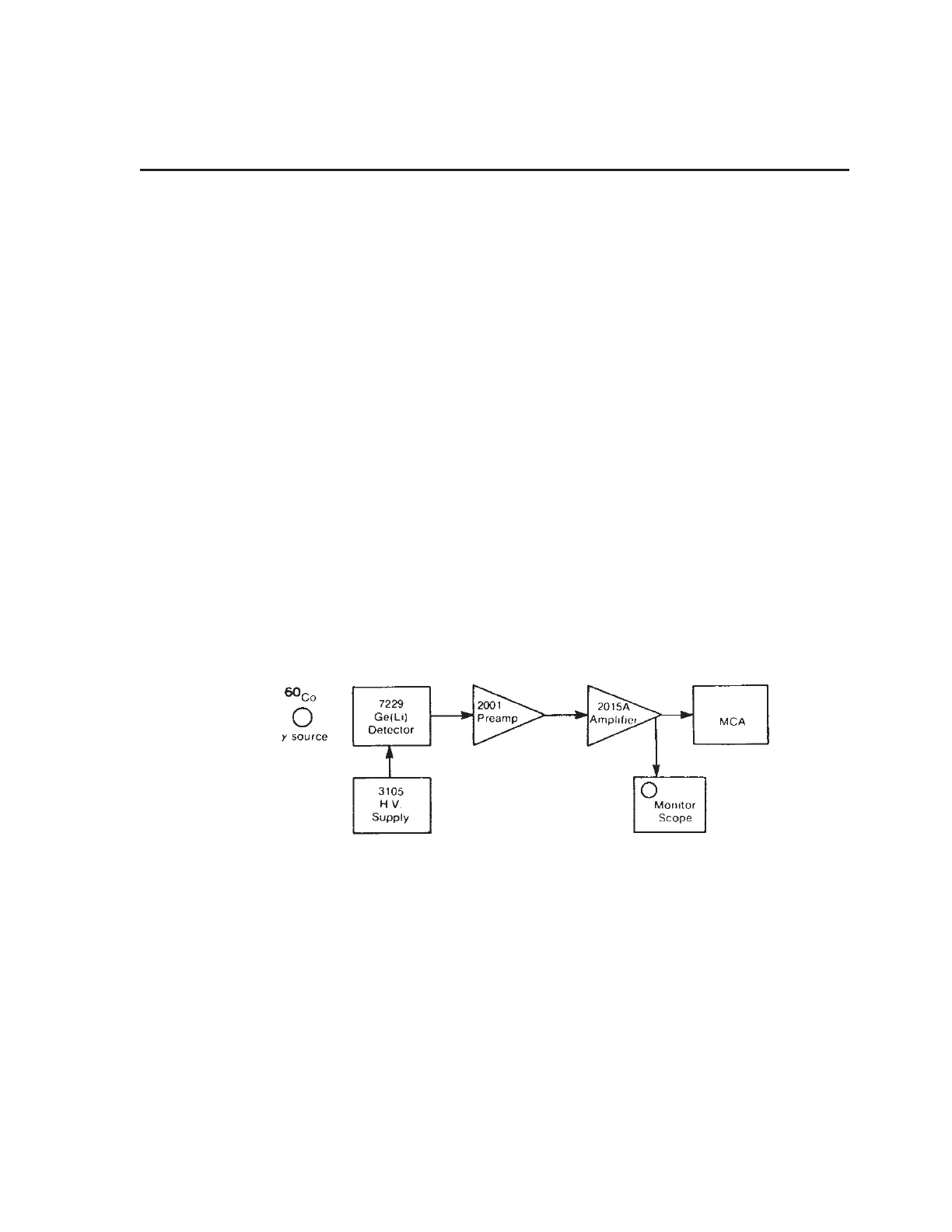

Figure 5 Typical Gamma Spectroscopy System
