Canberra 2015A - Page 24

RG-62 cable: R
source
= 50 ohms
Upper Trace: R
load
= 1k ohms
Lower Trace: R
load
= 50 ohms
Scope:
Horizontal = 0.1 µs/cm
18
Operating Instructions

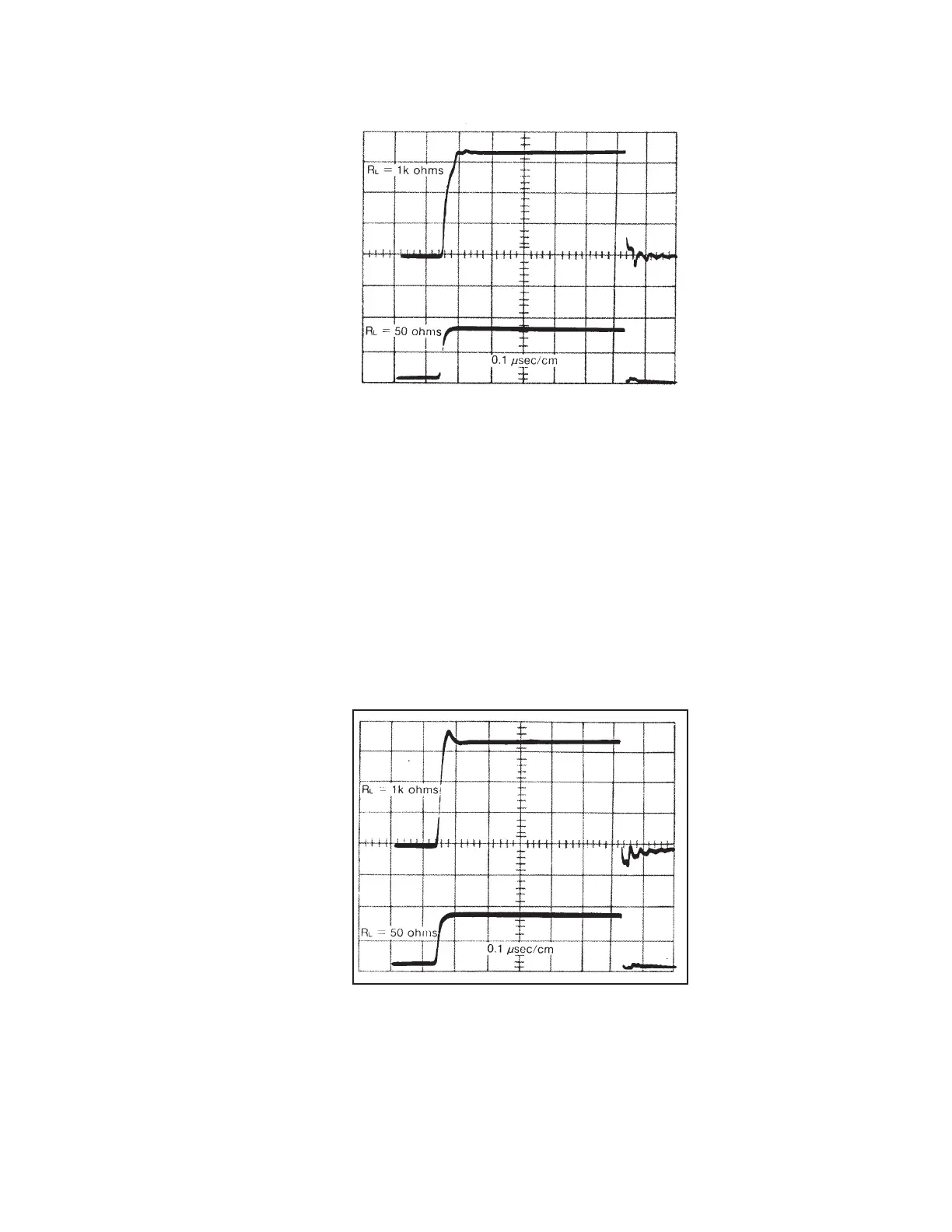

Figure 14 Typical Output Pulse Using a
RG58/U Cable
Figure 15 Typical Output Pulse Using a
RG62/U Cable
