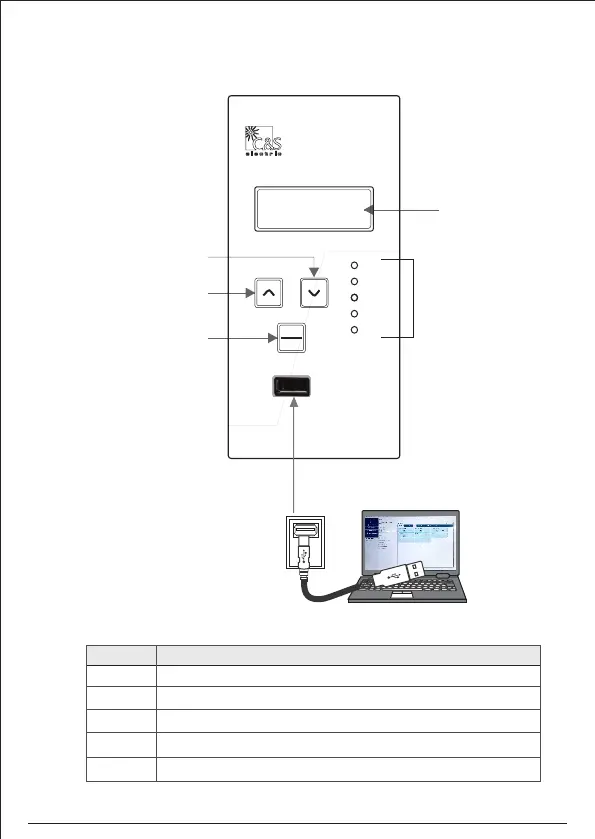

Front Interface
Enter / Reset Key
Short Press : Enter Key
Long Press : Reset Fault
(Back to Default menu)
Up Scroll / Increment Key
Down Scroll / Decrement Key
See the LED
Description
given below
LEDs Description *
LED Description
ON Indicates Power On Status
Id1 Indicates the Pickup & Trip status for L1 Phase
Id2 Indicates the Pickup & Trip status for L2 Phase
Id3 Indicates the Pickup & Trip status for L3 Phase
TRIP Indicates the Trip status of Relay
LCD
IRIPROx-3ER
CURRENT PROTECTION RELAY
ON
Id1
TRIP
Id3
Id2
RESET
ENTER
Id1:000.00A
Id2:000.00A
USB port for
PC / Laptop
communication
