C&S IRIPROx-1ER - Front Interface; Leds Description

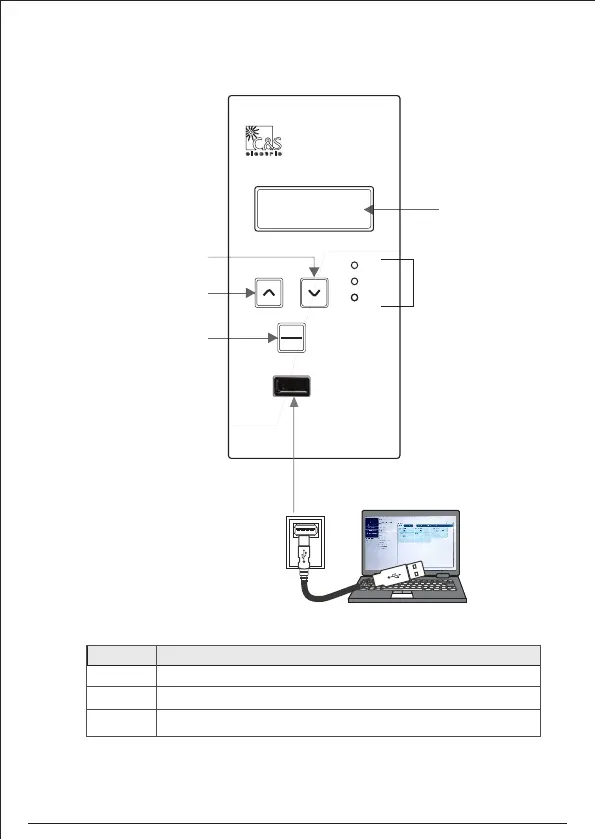

Front Interface
Enter / Reset Key
Short Press : Enter Key
Long Press : Reset Fault
(Back to Default menu)
Up Scroll / Increment Key
Down Scroll / Decrement Key
See the LED
Description
given below
LEDs Description *
LED Description
ON Indicates Power On Status
Id Indicates the Pickup & Trip status
TRIP Indicates the Trip status of Relay
LCD
IRIPROx-1ER
CURRENT PROTECTION RELAY
ON
Id
TRIP
RESET
ENTER
Id:000.00A
USB port for
PC / Laptop
communication
05
