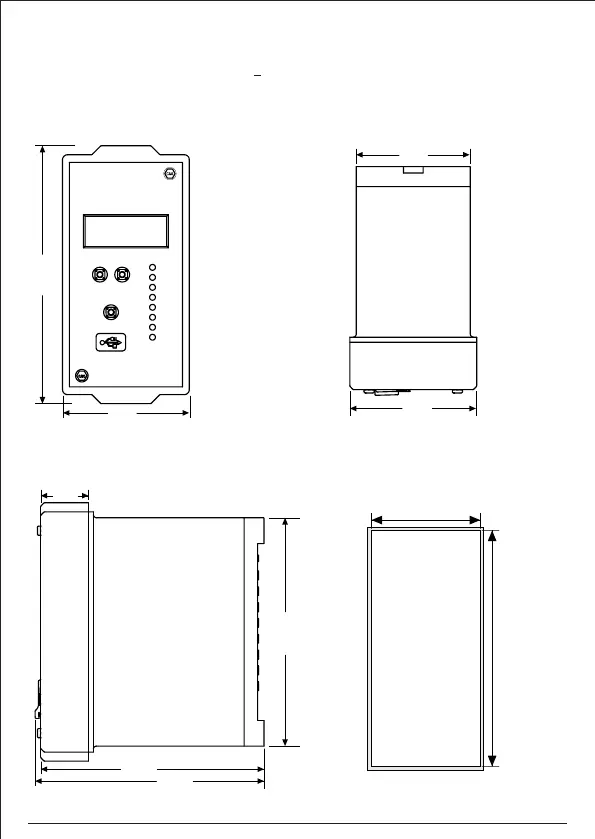

C&S IRIPROx-1ER - Dimension Details

Top View
Panel cut out Details
Side View
Front View
139.0
70.0
Panel cutout
dimensions
155.0
76.2
134.0
136.0
137.0
28.5
76.2
68.5
Dimension Details
(All the dimension are in mm, Gen. Tol : + 1.0 mm)
(Vertical Relay : V)
07
