7
8. Connect the air-outlet board and the air-outlet tube (Vent Hose) which will need to
feed through to the outside of the building. Rigid kits, if preferred, can be obtained
from either the retailer who supplied the hood, or DIY Stores and Builders
Merchants.

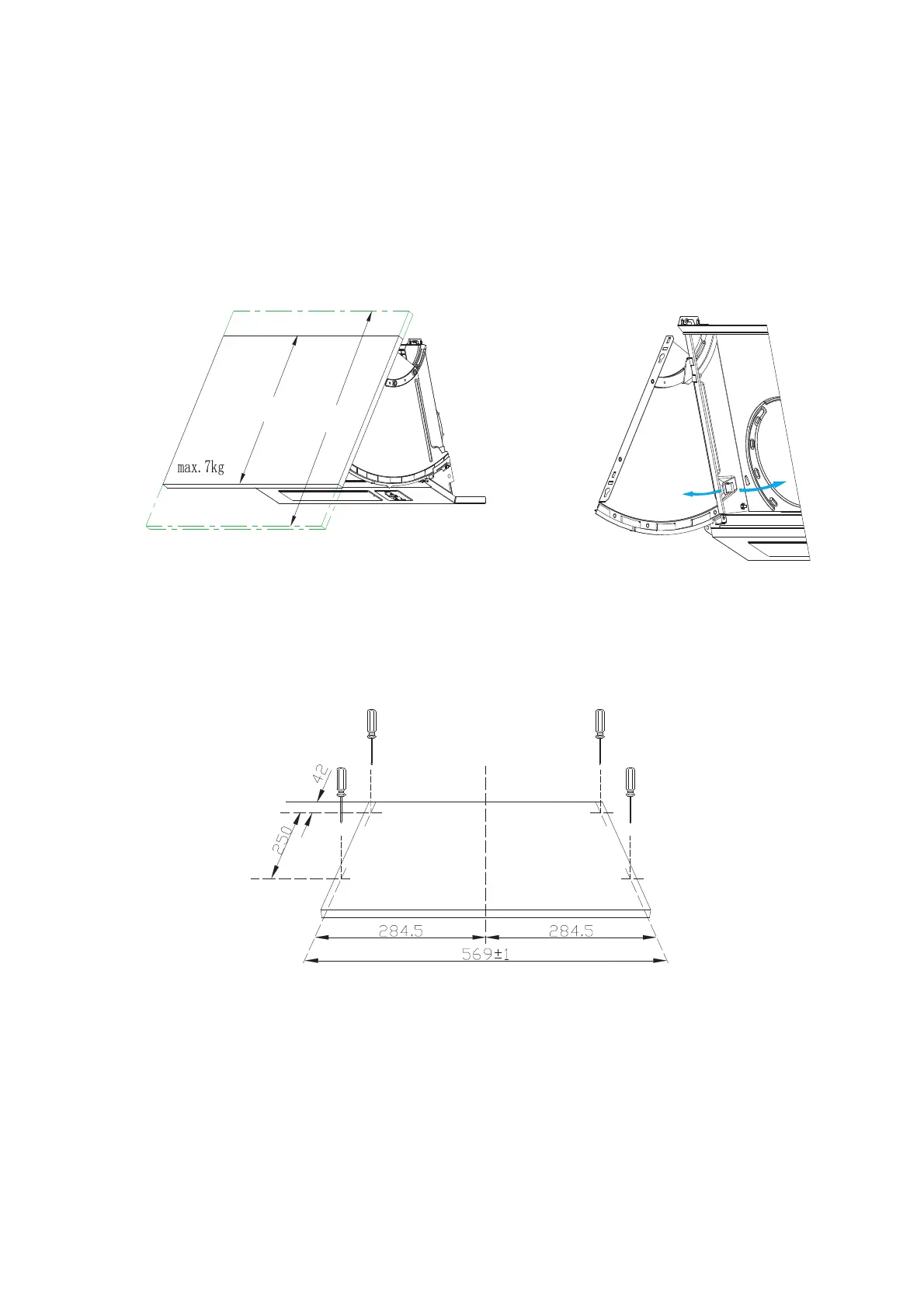

9. Door installation: The door should be no less than 16mm thick, 385-700mm high,
and weigh no more than 7KG. Pull out the movable fan-shaped door frames by the
plastic handle, and place the fan-shaped door frames one on left and one on right.
10. Mark the installation position of the door and the size of the fixed screws. If the
upper edge of the door is not as high as the upper edge of the cupboards, please
adjust the size accordingly. Mark the positions of the screws on the door, and make
sure the size is as accurate as 569±1.
11. Take down the fan-shaped door frames,then fix the left and right fan-shaped door
frames with the connected plate by 4pcs ST3.5*8mm countersunk self-tapping
screws.See pic below.Fix the fan-shaped door frames on the door with screws.
Make sure the frames are symmetrical. Install the door into the cooker hood, the
two sides of the door can be pulled to the end and the door can be safely locked. If
the door cannot be safely locked, you can release the plastic handle.
max
700
min
3 8 5
2.
1.
