1010
A
A
A
A

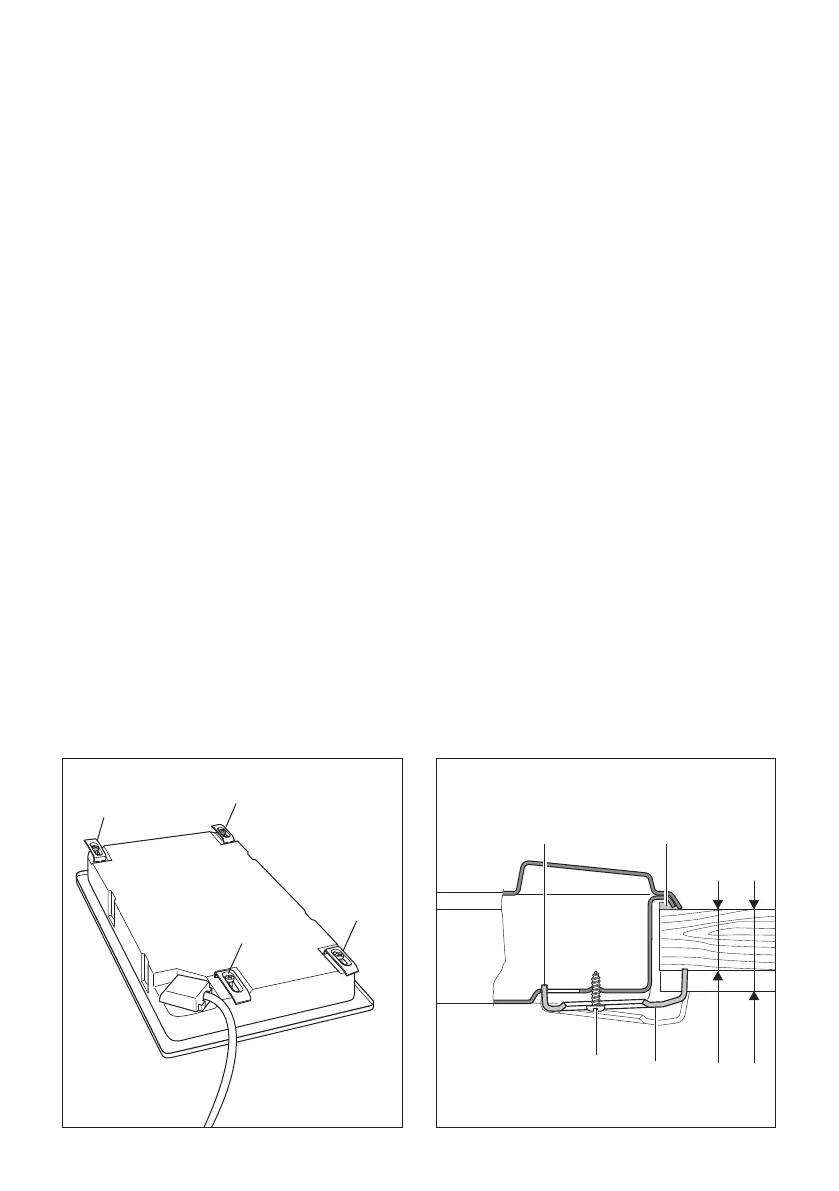

Fig. 1.4
Fig. 1.3
FASTENING THE COOKTOP
Each cooker top is provided with an installation kit including brackets and screws for
fastening the top to xture panels from 30 to 40 mm thick, gs. 1.3, 1.4.
• Cut the unit.
• Stretch gasket “D” over the edge of the hole made, being careful to overlay the junction
edges.
• Turn the cooktop over and put tabs “A” (g. 1.3) into the mountings, only tighten screws
“B” a few turns.
Make sure that the tabs are mounted correctly as shown in the gure 1.4. Turn the tabs
so that the cooktop can be put into the hole.
• Put the cooktop into the hole cut into the unit and position it correctly.
• Put tabs “A” into place, tooth “C” of the tabs should go into the hole.
• Tighten screws “B” until the cooktop is completely secured.
• Using a sharp tool cut o the part of gasket “D” which protrudes from the cooktop.
Take care not to damage the benchtop.
30
mm min.
40
mm max.
B
D
A
C
