1212
220 V
PE
N
L
1
(L )
2

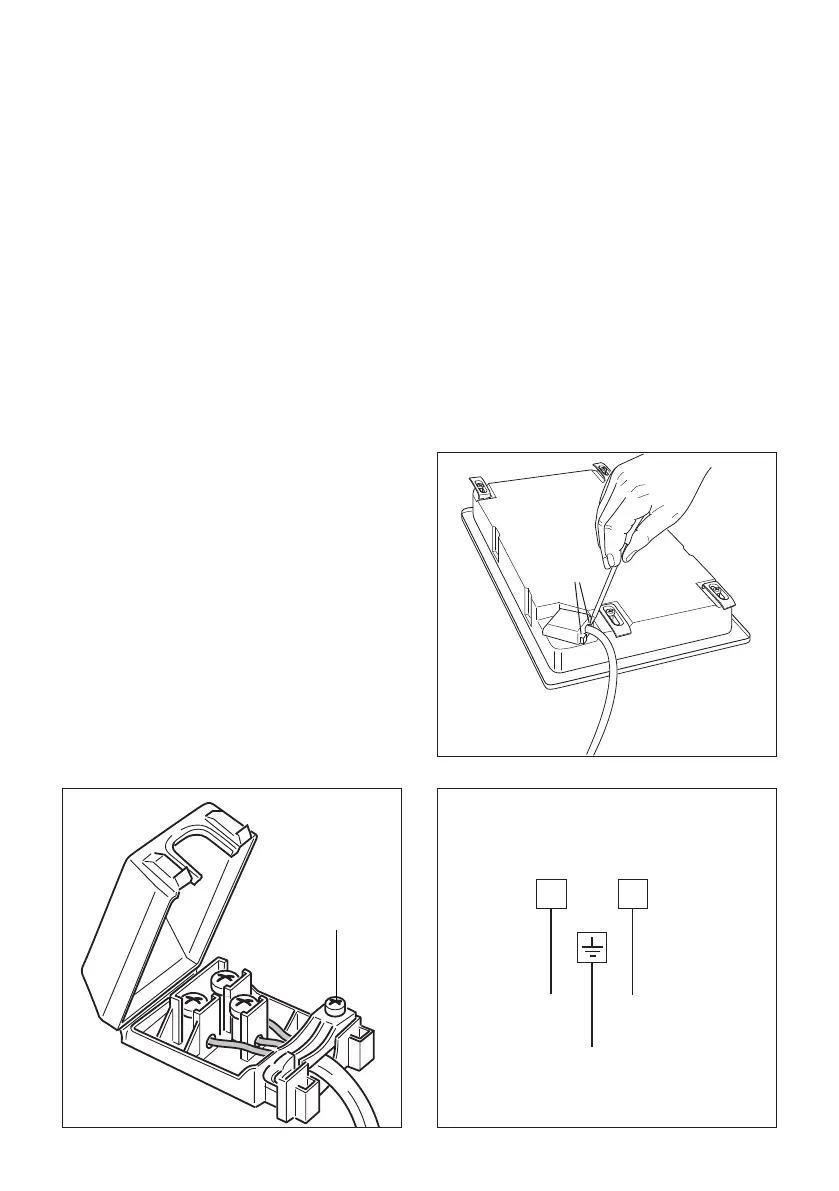

Fig. 2.1
F
A
Fig. 2.2 Fig. 2.3
SECTION OF THE SUPPLY CABLE
TYPE “H05RR-F” or “H05V2V2-F”
(resistance to temperatures of
90°C)”
220 - 240 V 50-60 Hz 3 x 1,5 mm
2
(*) (**)
(*)
Connection possible with plug and outlet
(**) Connection with wall box connection.
220-240 V ac
REPLACING THE POWER SUPPLY CABLE
Important! This appliance must be connected to the electricity supply only by an
authorised person.
WARNING: If the power supply cable is damaged, it must be replaced only by an
authorised service agent in order to avoid a hazard.
• The supply cable must be replaced with a cable of the same type.
• Turn the cooktop over and unhook the terminal board cover by inserting a screwdriver
into the two hooks “A” (g. 2.1).
• Open the cable gland by unscrewing screw “F” (g. 2.2), unscrew the terminal screws
and remove the cable.
• The new supply cable, of suitable type and section, is connected to the terminal board
following the diagram in g. 2.3.
• Pull the feeder cable and block it with cable gland.
• Close the terminal block cover (check the two hooks “A” are correctly hooked).
Note: The earth conductor must be left about 3 cm longer than the others.
