Cannondale CAAD13 - Cable Management and Brake Bridge Components; DT Guides Installation and Purpose; Rear Rim Brake Bridge Functionality

9
137370 Rev 1.
EnglishCAAD13 - Owner’s Manual Supplement
Shimano Di2
Mechanical
SRAM eTAP
1 N·m
M3
EW-RS910
3
4
2
1

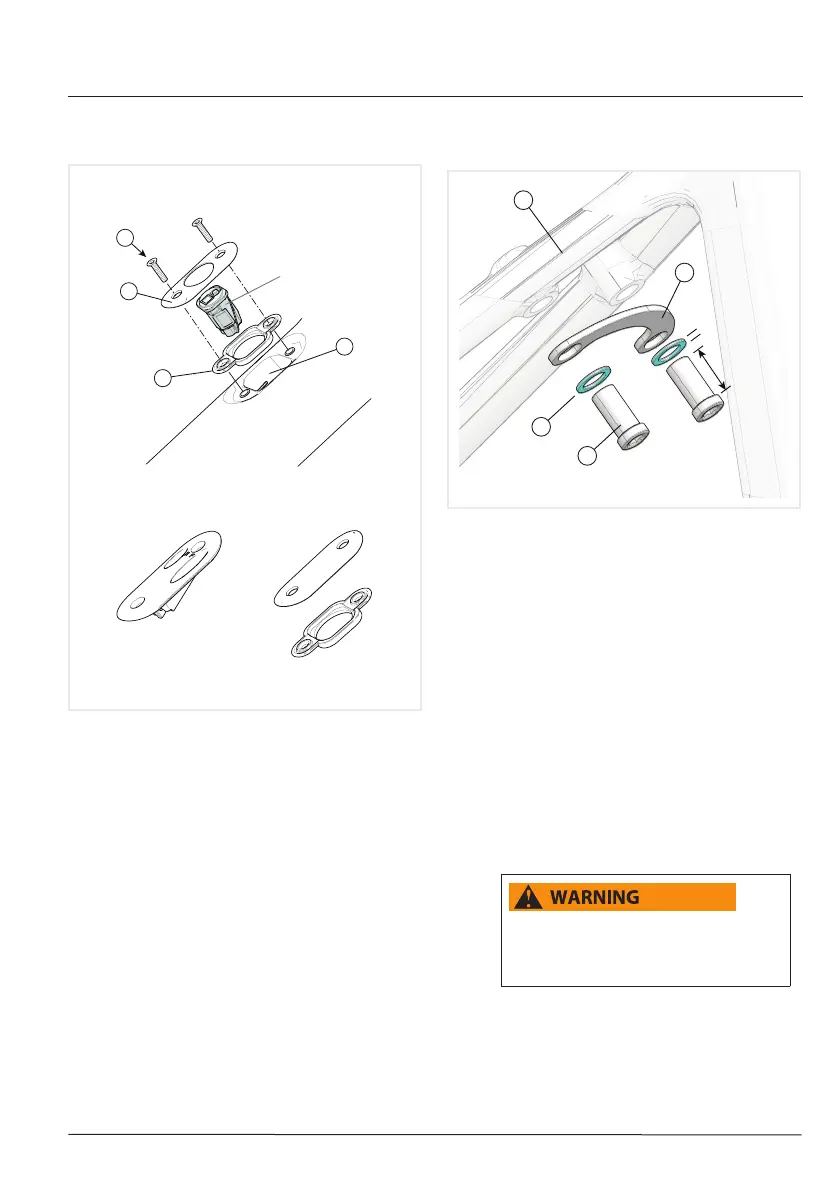

DT Guides
1. Downtube opening
2. Cover
3. Bracket
4. Screws (2X)
2
1
3
4
20 mm
1 mm
Rear Rim Brake Bridge
1. Seat Stay
2. Brake Bridge
3. Washer (2X)
4. Bolt (2X)
• The bridge parts are required for rim
brake frames. The bridge provides
necessary support to the frame and
ensures that braking force is not
absorbed by movement of the frame.
• Installed on the underside of the
seatstays.
• Follow the instruction provided by the
brake manufacturer when installing
brake.
Do not ride without a rear brake
system installed. Do not omit or
remove the rear brake bridge parts.
