Cable Guide
NOTICES
1. Both the cable guide body and the metal support must be installed together. Do
not remove the metal support leaving only the cable guide. See following pages for
explanation. The inner sleeve of some BB systems, may not be compatible. Consult with
you Cannondale Dealer on comnpatible BB systems.
2. All cables, wires, and hoses, must pass through the cable guide. Otherwise, damage may
result from contact with the moving crank system parts.

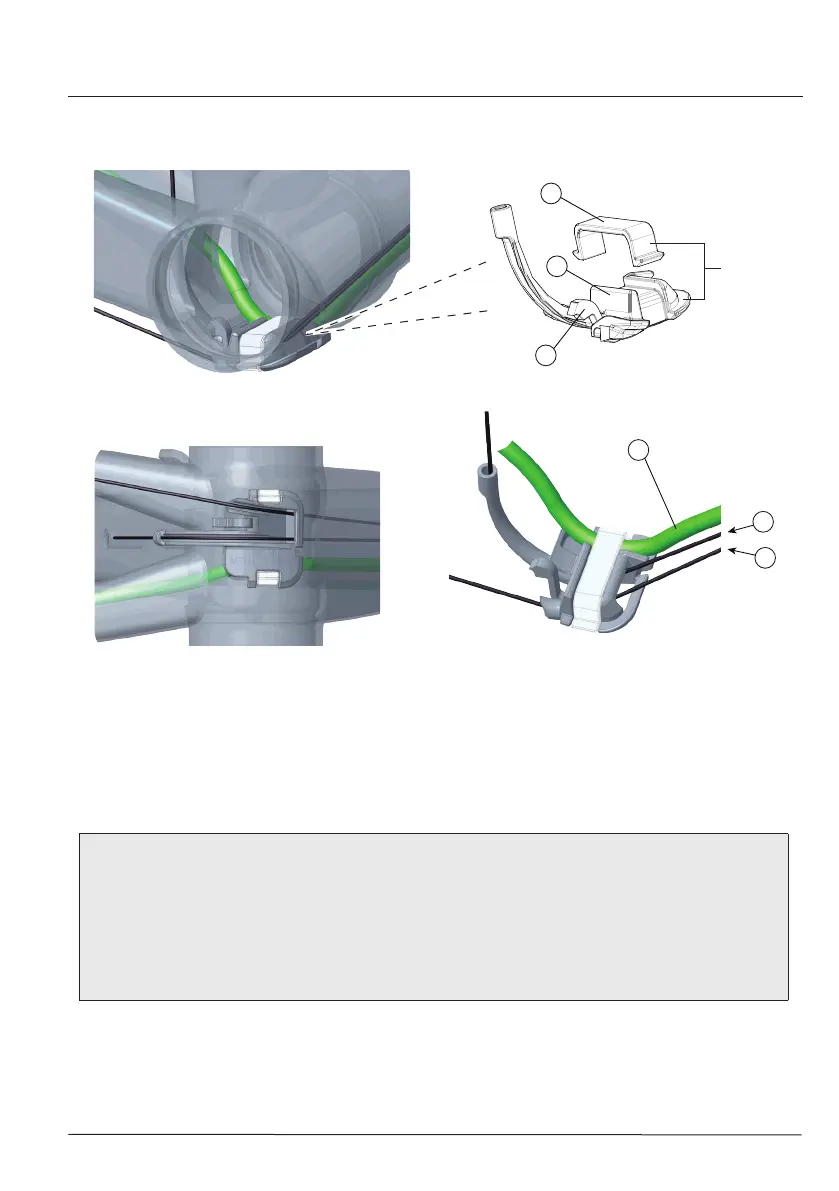

1. Guide Body
2. Guide Support
rc. Retaining Clip
3. Rear Brake Hose
4. Front Derailluer Cable
5. Rear Derailluer Cable
Identication
2
K32190
1
rc
3
4
5
SIDE VIEW
BOTTOM VIEW
