EnglishCAAD13 - Owner’s Manual Supplement
M
K
E
D
O
H
N
L
B
P
G
I
J
A
75 mm
F
A Seat Tube Length
B Top Tube Horizontal
D Head Tube Angle
E Seat Tube Angle
G Head Tube Length
H Wheelbase
I Front Center
J Chain Stay Length
K Bottom Bracket Drop
L Bottom Bracket Height
M Fork Rake
N Trail
O Stack
P Reach

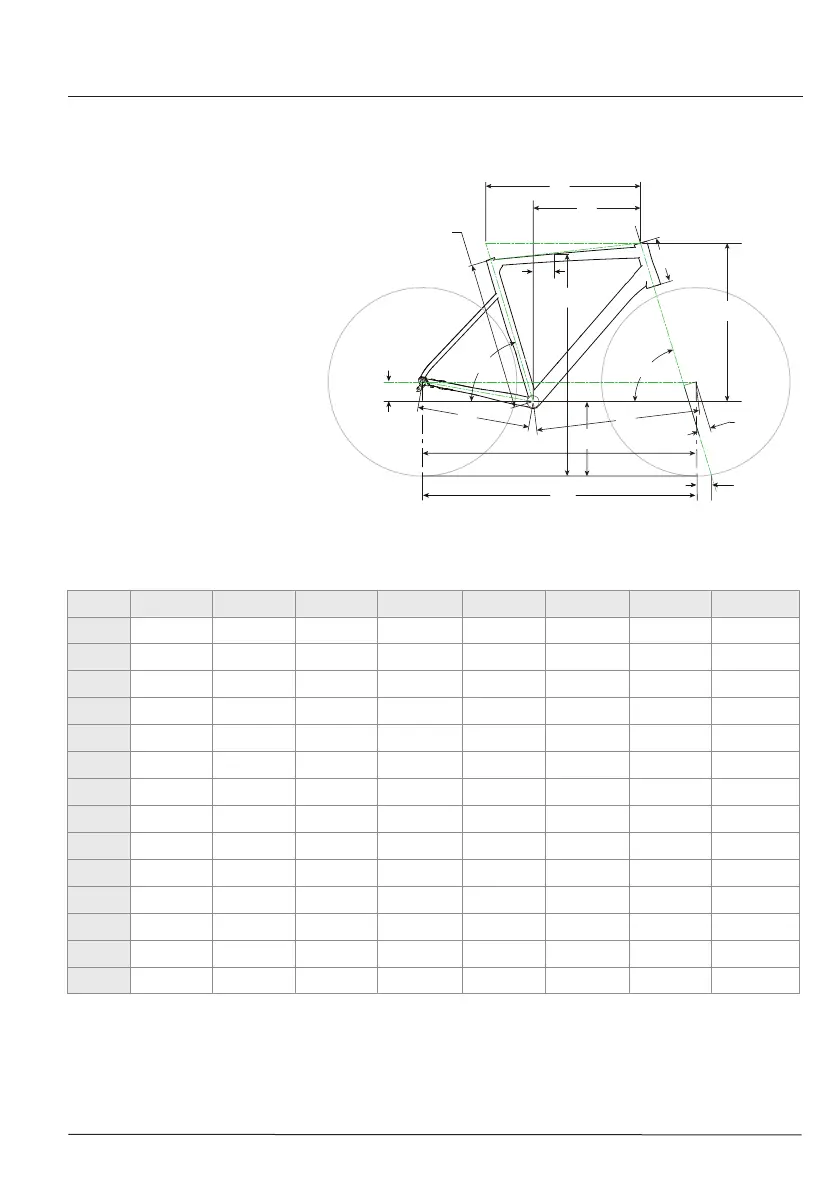

Geometry
Dimensions = centimeter/inches
Size 44 48 51 54 56 58 60 62
A 40.0/15.7 43.8/17.2 47.7/18.8 51.5/20.3 53.6/21.1 55.8/22.0 57.9/22.8 60.0/23.6
B 51.0/20.1 52.0/20.5 53.0/20.9 54.6/21.5 56.2/22.1 57.8/22.8 59.4/23.4 61.1/24.1
D 70.9° 71.2° * * 73.0° * * *
E 74.5° 74.3° 74.1° 73.7° 73.3° 72.9° 72.5° 72.1°
G 9.4/3.7 11.4/4.5 13.0/5.1 15.4/6.0 16.4/6.5 18.8/7.4 20.9/8.2 23.0/9.0
H 97.6/38.4 98.5/38.8 99.4/39.1 100.8/39.7 99.2/39.0 100.5/39.6 101.6/40.0 102.8/40.5
I 58.1/22.9 58.9/23.2 59.8/23.5 61.1/24.0 59.4/23.4 60.7/23.9 61.8/24.3 63.0/24.8
J 40.8/16.1 * * * * * * *
K 7.9/3.1 7.4/2.9 * 7.2/2.8 * 6.9/2.7 * *
L 26.3/10.4 26.8/10.6 * 27.1/10.6 * 27.3/10.7 * *
M 5.5/2.2 * * * 4.5/1.8 * * *
N 6.0/2.4 5.8/2.3 * * 5.8/2.3 * * *
O 50.4/19.8 51.9/20.4 53.4/21.0 55.4/21.8 57.4/22.6 59.4/23.4 61.4/24.2 63.4/25.0
P 37.0/14.6 37.4/14.7 37.8/14.9 38.4/15.1 38.9/15.3 39.5/15.6 40.0/15.8 40.6/16.0
* Indicates same.
All Specifications subject to change without notice.
