137370 Rev 1.
EnglishCAAD13 - Owner’s Manual Supplement
1
2
3
4
5
6
NGLI-2
NGLI-2

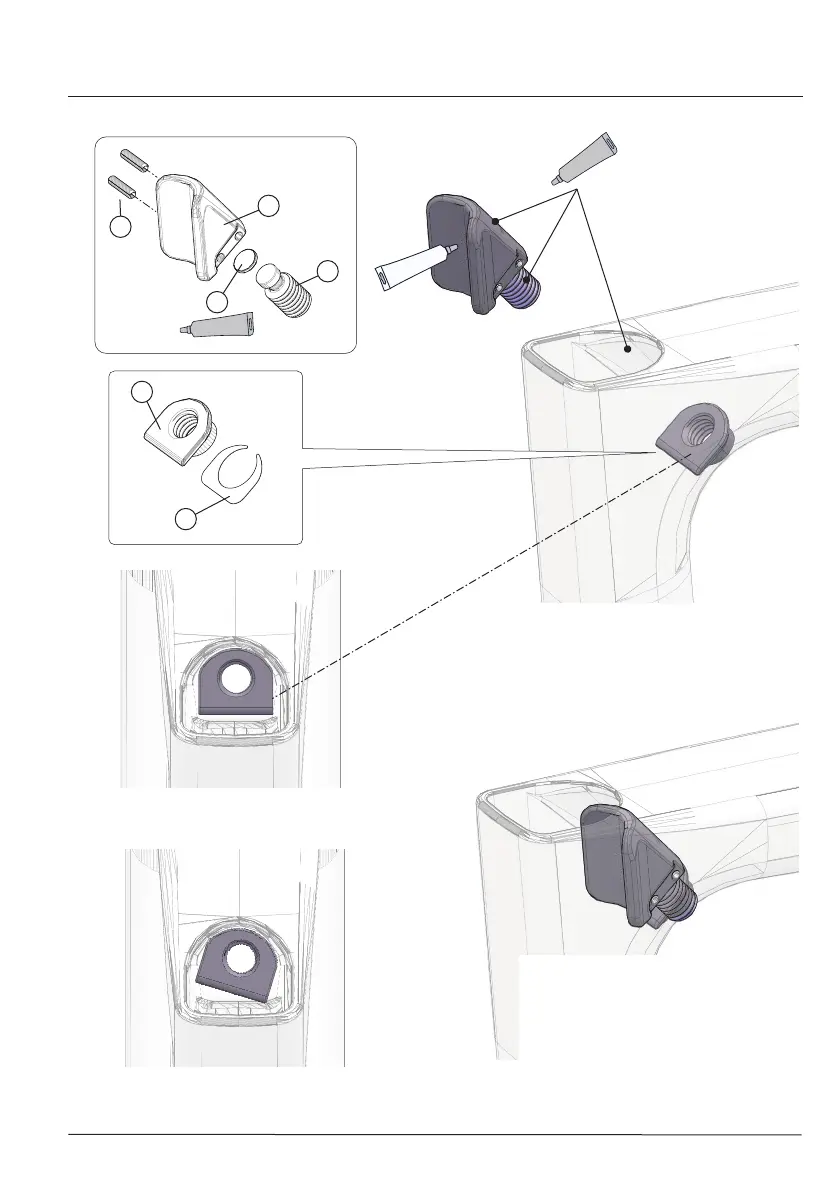

Identification
1. Sliding Clamp
2. Roll Pins (2X)
3. Washer
4. Grub Screw
5. Nut Base
6. Pressure Sensitive Adhesive Tape
(Double-sided)
This is INCORRECT.
The nut plate is rotated.
This is CORRECT.
Correct application
of carbon paste
and grease.
(shown disassembled)
The pressure sensitive adhesive
double-sidedtape secures the
aligned nut base in the frame.
When applied the nut base and
frame should be very clean for a
good bond.
Ready to accept seat post.
