137370 Rev 1.
EnglishCAAD13 - Owner’s Manual Supplement

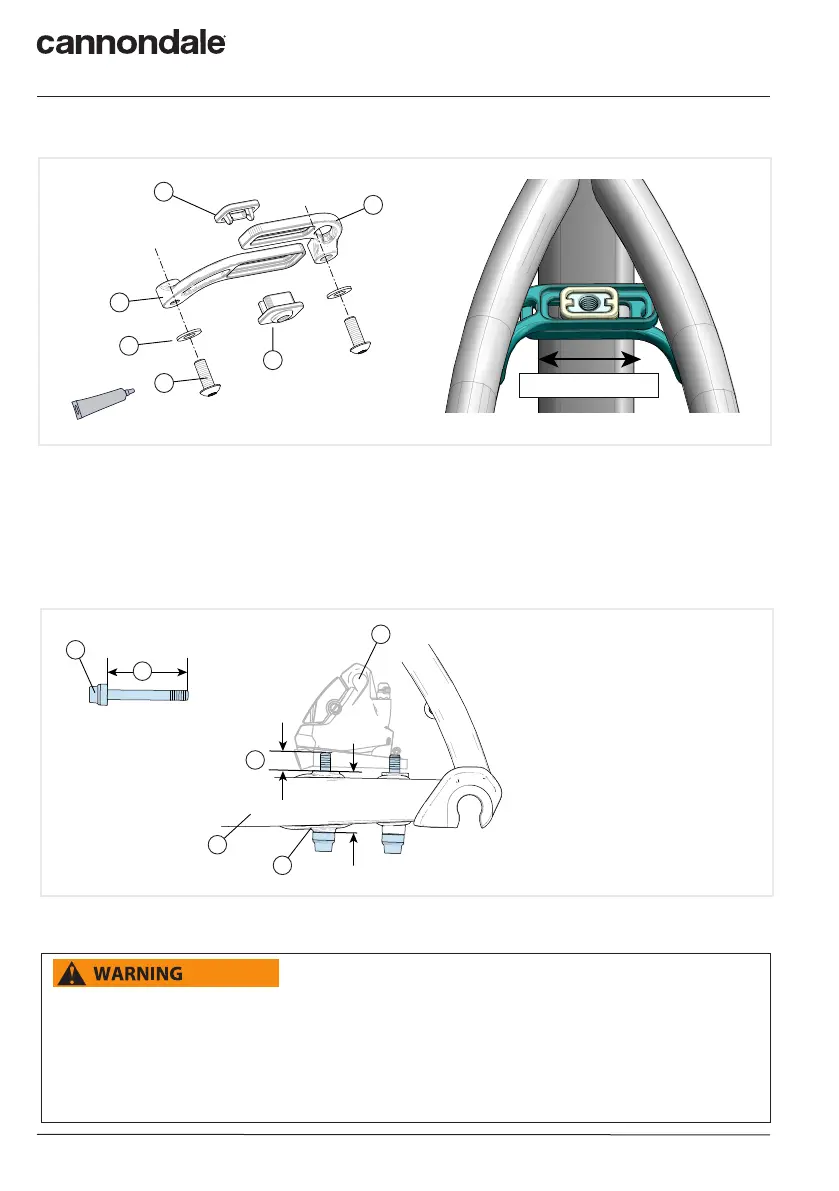

Adjustable Fender Bridge - DISC BRAKE
1. Right Mount Arm
2. Left Mount Arm
3. Nut
4. Slide Ring
5. Washer (2X)
6. Screw (2X)
Identication
Flat Mount Bolt Length - DISC BRAKE
1
a
30 mm
b
2
4
3
The correct bolts ensure proper thread engagement with the brake system parts (e.g., caliper, adapters (if
present). Your bike has been assembled with the correct bolts for the brake system. If you change the original
equipment brakes on your bike, or are building a frameset, be sure to use brake bolts lengths to achieve the
thread enagement as specified by the brake system manufacturer. Consult your Cannondale Dealer for help.
The wrong bolt length (engagement) can allow the brakes to disengage from the bicycle, which can lead to a
crash, which can lead to serious injury, paralysis, or death of the rider.
Identification
1. Left Chainstay
2. Rear Brake Caliper
System
3. Frame Thickness
(Brake Bosses )
4. Brake Mounting Bolts
(2X)
a. Bolt Length (mm)
b. Thread engagement
1
3
4
2
5
6
2 N·m
NGLI-2
Adjust
