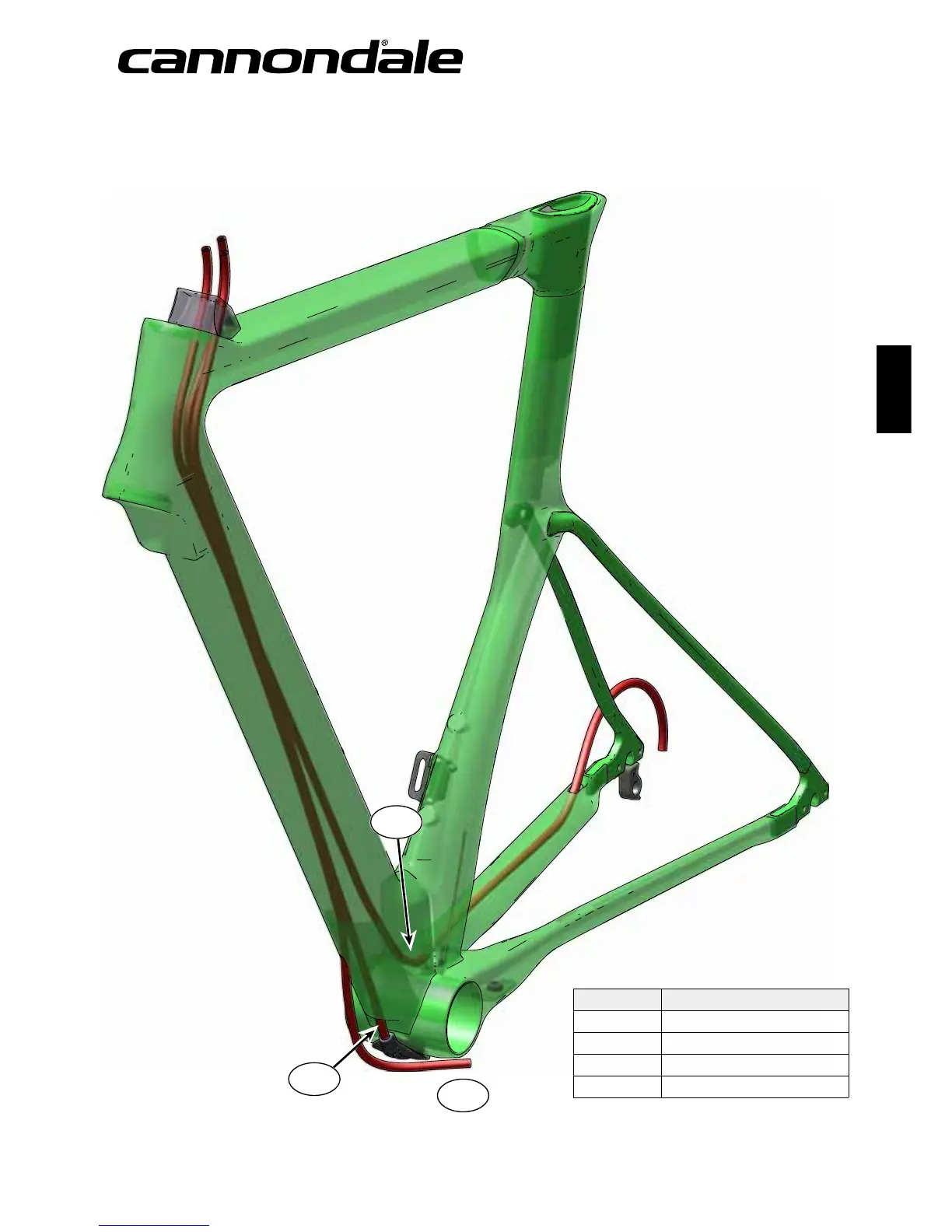

CABLE ROUTING
The frame features internal cable
routing for both electronic remote
and mechanical shifting and brakes.
Full-length housing is utilized with
mechanical shifting.
The wiring harness or electronic
remote systems are passed through
frames fitting shown on the
replacement parts page.
CODE DESCRIPTION
RD Rear Derailleur Cable
FD Front Derailleur Cable
RB Rear Brake Cable
FB Front Brake Cable
Housing length
is determined
by frame size; cut
housing to support
smooth bends inside
the frame.
To dampen possible hous-
ing noise caused by vibration
attach and leave un-cut
several small tie wraps. This can
be done during assembly.
