Cannondale TRIGGER - REPLACEMENT PARTS; TRIGGER (Carbon)

20
134910 Rev 1.
Q
Q
B
C
C
O
Q
A
M4
Loctite 242 (blue)
6 Nm
A
I
34.9 mm
A
F
Loctite 242 (blue)
12 Nm
M5
Loctite 242 (blue)
12 Nm
M4
Loctite 242 (blue)
6 Nm
M2.5
Loctite 242 (blue)
2 Nm
N
F
G
K
E
A
B
M
L
D
CS-L
CS-R
DT & SS
H
P
P
J
A
1.5 N-m
M2.5
1 N-m
M2.5
1 N-m
M2.5
1 N-m
ENGLISHTRIGGER/JEKYLL - OWNERS MANUAL SUPPLEMENT
‘

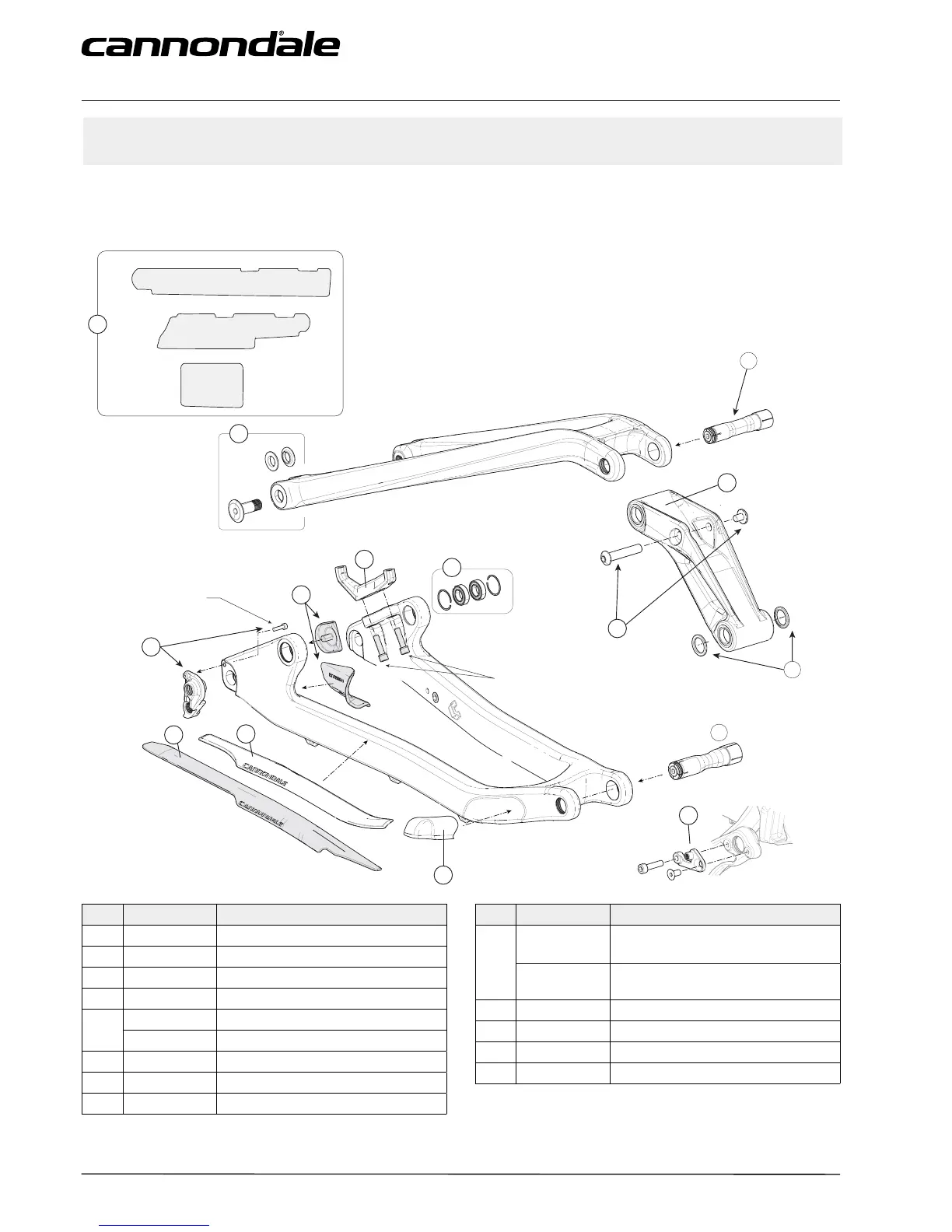

REPLACEMENT PARTS
TRIGGER (Carbon)
ID CODE DESCRIPTION
A
CK3147U00OS
Trigger Pivot Hardware
B
CK3177U00OS
Trigger Pivot Bearings
C
CK3227U00OS
Trigger Shock Bolts
D
CK3257U00OS
Jekyll/Trigger Rear Der Hanger
E
KP421/160
Brake Mount Flat 160mm
KP421/180
Brake Mount Flat 180mm
F
CK3237U00OS
Trigger CRB Cstay Protector
G CK3287U00OS Trigger CRB Cstay Guard
ID CODE DESCRIPTION
H
K34068
Trigger CRB CS Heel Rub Grds
( Trigger 1)
K34058
Trigger ALLY CS Heel Rub Grds
(Trigger 2 and 3)
I
CK3247U00OS
Trigger Al Chainstay Protector
J
C22698M00L1
27.5 M Trigger Crb Link
K
KP390/
Mount F Der
