Cannondale TRIGGER - Page 25

23
134910 Rev 1.
M5 X 18
1
= NLGI-2 Synthetic Grease
B
C Loctite 242 (blue)
12 Nm
C
Loctite 242 (blue)
12 Nm
H
F
F
A
A
A
A
2 N-m
M5x25
2 Nm
6 Nm
1.5 Nm
1
1
B
A
K
L
P
N
W
Loctite 242 (blue)
6 Nm
Loctite 242 (blue)
5 Nm
G
M
A
L
34.9 mm
E
CS-L
CS-R
DT & SS
O
D
D
I

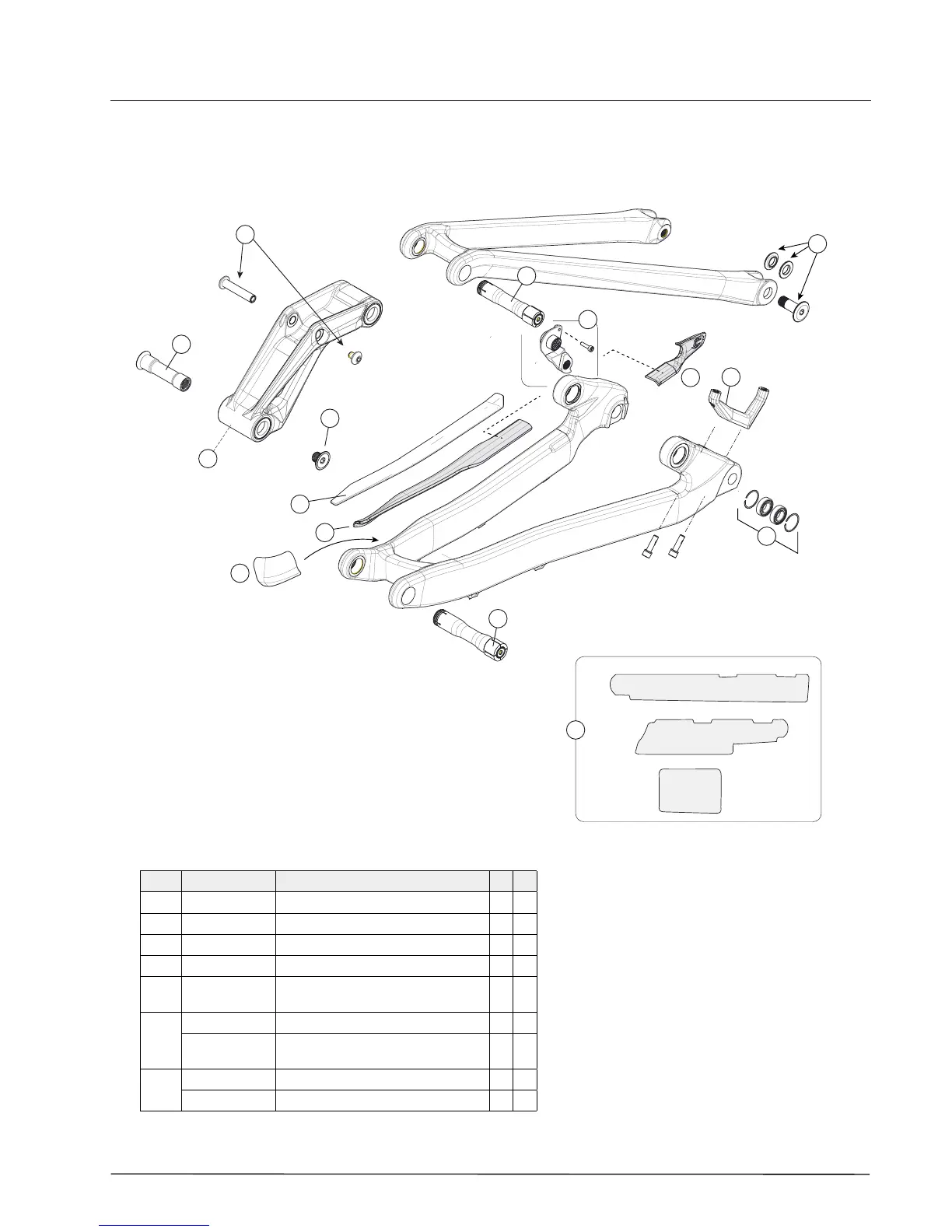

ENGLISHTRIGGER/JEKYLL - OWNERS MANUAL SUPPLEMENT
ID CODE DESCRIPTION CRB ALLY
J
CK3257U00OS
Jekyll/Trigger Rear Der Hanger X X
K
CK3217U00OS
Jekyll AL CSTAY Protector X
L
CK3197U00OS
Jekyll CRB CSTAY Protector X
M
K34078
Jekyll CRB Chainsuck Protector X
N
C21698M00L1
27.5 M Jekyll CRB Link (w/bearings)
All sizes, both carbon and alloy
X X
O
K34068
Jekyll CRB CS Heel Rub Grds (Jekyll 1) X
K34058
Jekyll/ ALLY CS Heel Rub Grds
(Jekyll 2, 3,4)
X
P
KP421/160
Brake Mount Flat 160mm X X
KP421/180
Brake Mount Flat 180mm X X
For rear shock parts and service:
www.foxracingshocks.com
