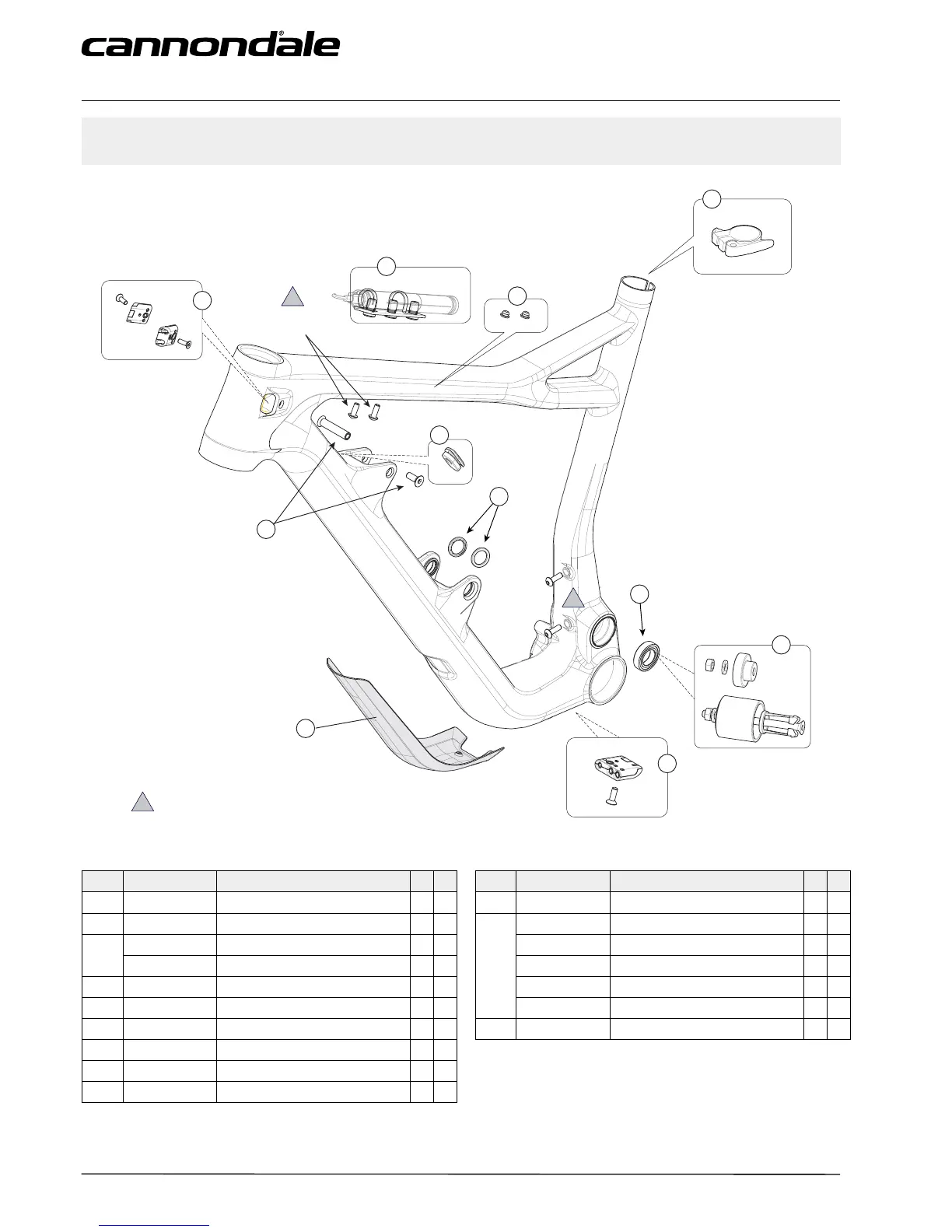

Cannondale TRIGGER - REPLACEMENT PARTS; JEKYLL (Carbon;Alloy)

22
134910 Rev 1.
M5 X 18
1
= NLGI-2 Synthetic Grease
B
C Loctite 242 (blue)
12 Nm
C
Loctite 242 (blue)
12 Nm
H
F
F
A
A
A
A
2 N-m
M5x25
2 Nm
6 Nm
1.5 Nm
1
1
B
A
K
L
P
N
W
Loctite 242 (blue)
6 Nm
Loctite 242 (blue)
5 Nm
G
M
A
L
34.9 mm
E
CS-L
CS-R
DT & SS
O
D
D
I
ENGLISHTRIGGER/JEKYLL - OWNERS MANUAL SUPPLEMENT
‘
ID CODE DESCRIPTION CRB ALLY
A
CK3157U00OS
Jekyll Pivot Hardware X X
B
CK3167U00OS
Jekyll Pivot Bearings X X
C
CK3207U00OS
Jekyll Carbon Shock Bolts X
K36018
Jekyll Alloy Shock Bolts X
D
CK3187U00OS
Jekyll/Trigger Grommets X X
E
KP388/
Seatbinder MTN 34.9 X X
F
KP436/
Cable Guides Scalpel Si X
KP197/SRM
Kit Bearing BB-Presst 30 SRM X
KB6180/
Bearing BB Si 2PCS BLU X
QC616/
Circlips 2x BB Si X
ID CODE DESCRIPTION CRB ALLY
G
K32027
Internal Di2 Battery Mount X
H
CK3107U00SM
Jekyll Crb DT Protector SM X
CK3107U00MD
Jekyll Crb DT Protector MD X
CK3107U00LG
Jekyll Crb DT Protector LG X
CK3107U00XL
Jekyll Crb DT Protector XL X
K34008
Jekyll Alloy DT Protector (all sizes) X
I
CK9017U00OS
17x30 Bearing Tool X X
REPLACEMENT PARTS
JEKYLL (Carbon/Alloy)
