MENS WOMENS
SIZE
S M L XL S M
A
40.0/15.7 43.0/16.9 46.0/18.1 52.0/20.5 40.0/15.7 43.0/16.9
B
57.6/22.7 60.2/23.7 62.7/24.7 65.5/25.8 57.6/22.7 60.2/23.7
C
N/A N/A N/A N/A N/A N/A
D
66°
H H H
66°
H
E
74.5°
H H H
74.5°
H
F
74.9/29.5 76.1/30.0 76.7/30.2 79.6/31.3 74.9/29.5 76.1/30.0
G
10.2/4.0 11.5/4.5 12.7/5.0 14.0/5.5 10.2/4.0 11.5/4.5
H
113.0/44.5 115.8/45.6 118.5/46.7 121.5/47.8 113.0/44.5 115.8/45.6
I
71.1/28.0 73.9/29.1 76.5/30.1 79.5/31.3 71.1/28.0 73.9/29.1
J
42.0/16.5
H H H
42.0/16.5
H
K
1.2/0.5
H H H
1.2/0.5
H
L
34.5/13.6
H H H
34.5/13.6
H
M
4.4/1.7
H H H
4.4/1.7
H
N
10.7/4.2
H H H
10.7/4.2
H
O
58.3/23.0 59.5/23.4 60.6/23.9 61.8/24.3 58.3/23.0 59.5/23.4
P
41.4/16.3 43.7/17.2 45.9/18.1 48.4/19.0 41.4/16.3 43.7/17.2
G
M
O
J
H
N
C
A
L
75 mm
F
B
I
D
K
P
E
All Specifications subject to change without notice.
H - Indicates same.
A
SEAT TUBE LENGTH
B
TOP TUBE HORIZONTAL
C
TOP TUBE ACTUAL
D
HEAD TUBE ANGLE
E
SEAT TUBE ANGLE EFFECTIVE
F
STANDOVER
G
HEAD TUBE LENGTH
H
WHEELBASE
I
FRONT CENTER
J
CHAIN STAY LENGTH
K
BOTTOM BRACKET DROP
L
BOTTOM BRACKET HEIGHT
M
FORK RAKE
N
TRAIL
O
STACK
P
REACH

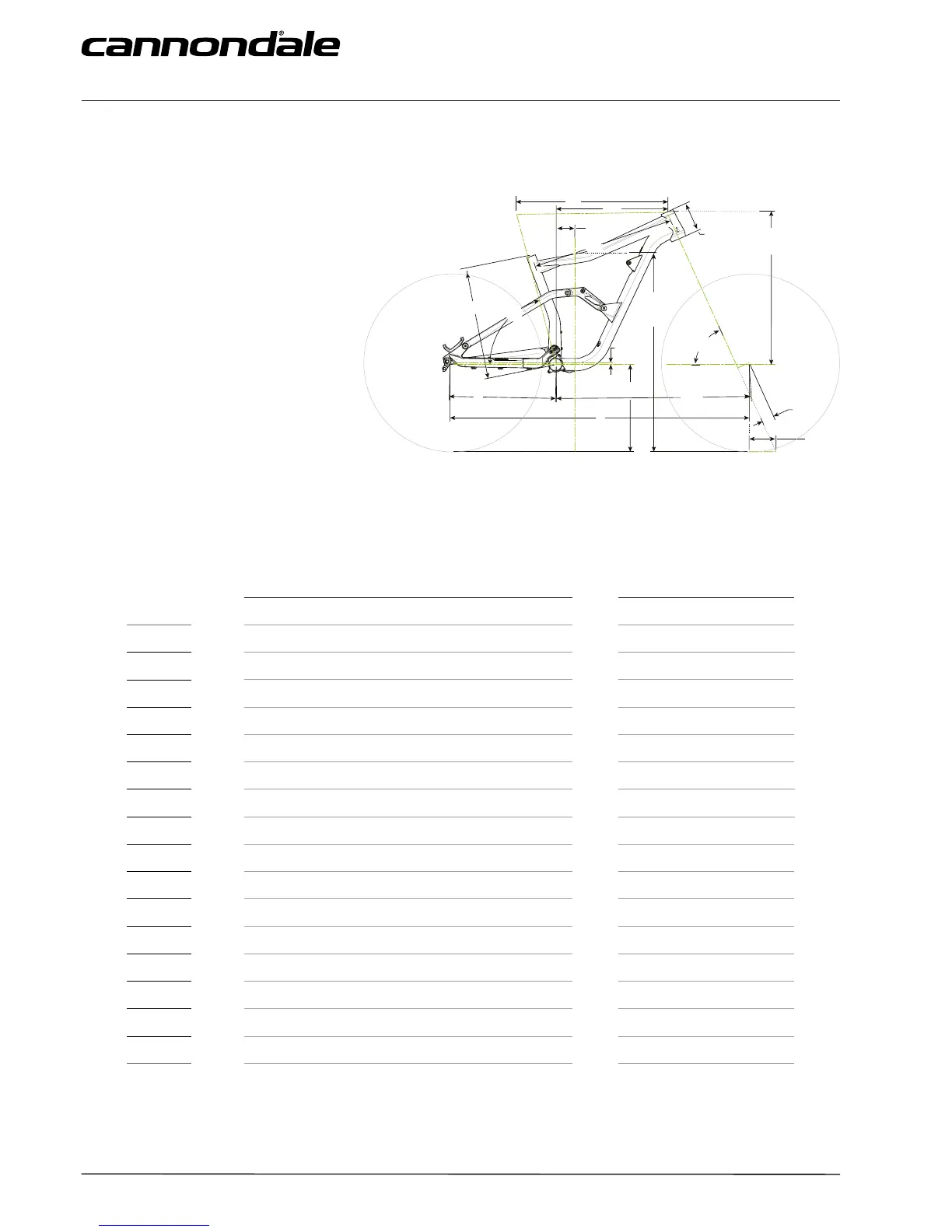

TRIGGER Geometry
Dimensions = (centimeter/inches)
