SIZE
S M L XL
A
40.0/15.7 43.0/16.9 46.0/18.1 52.0/20.5
B
58.4/23.0 60.9/24.0 63.4/25.0 66.2/26.1
C
53.7/21.1 56.2/22.1 58.7/23.1 62.1/24.5
D
65°
H H H
E
75.0°
H H H
F
75.0/29.5 75.8/29.8 76.7/30.2 77.5/30.5
G
10.2/4.0 11.5/4.5 12.7/5.0 14.0/5.5
H
116.0/45.7 118.7/46.7 121.4/47.8 124.4/49.0
I
74.0/29.1 76.7/30.2 79.4/31.3 82.4/32.5
J
42.0/16.5
H H H
K
0.8/0.3
H H H
L
34.9/13.7
H H H
M
4.4/1.7
H H H
N
11.4/4.5
H H H
O
59.2/23.3 60.4/23.8 61.5/24.2 62.6/24.7
P
42.5/16.7 44.7/17.6 46.9/18.5 49.4/19.5
O
D
G
P
B
F
L
I
H
K
J
A
M
N
E
75mm
C
All Specifications subject to change without notice.
H - Indicates same.
A
SEAT TUBE LENGTH
B
TOP TUBE HORIZONTAL
C
TOP TUBE ACTUAL
D
HEAD TUBE ANGLE
E
SEAT TUBE ANGLE EFFECTIVE
F
STANDOVER
G
HEAD TUBE LENGTH
H
WHEELBASE
I
FRONT CENTER
J
CHAIN STAY LENGTH
K
BOTTOM BRACKET DROP
L
BOTTOM BRACKET HEIGHT
M
FORK RAKE
N
TRAIL
O
STACK
P
REACH

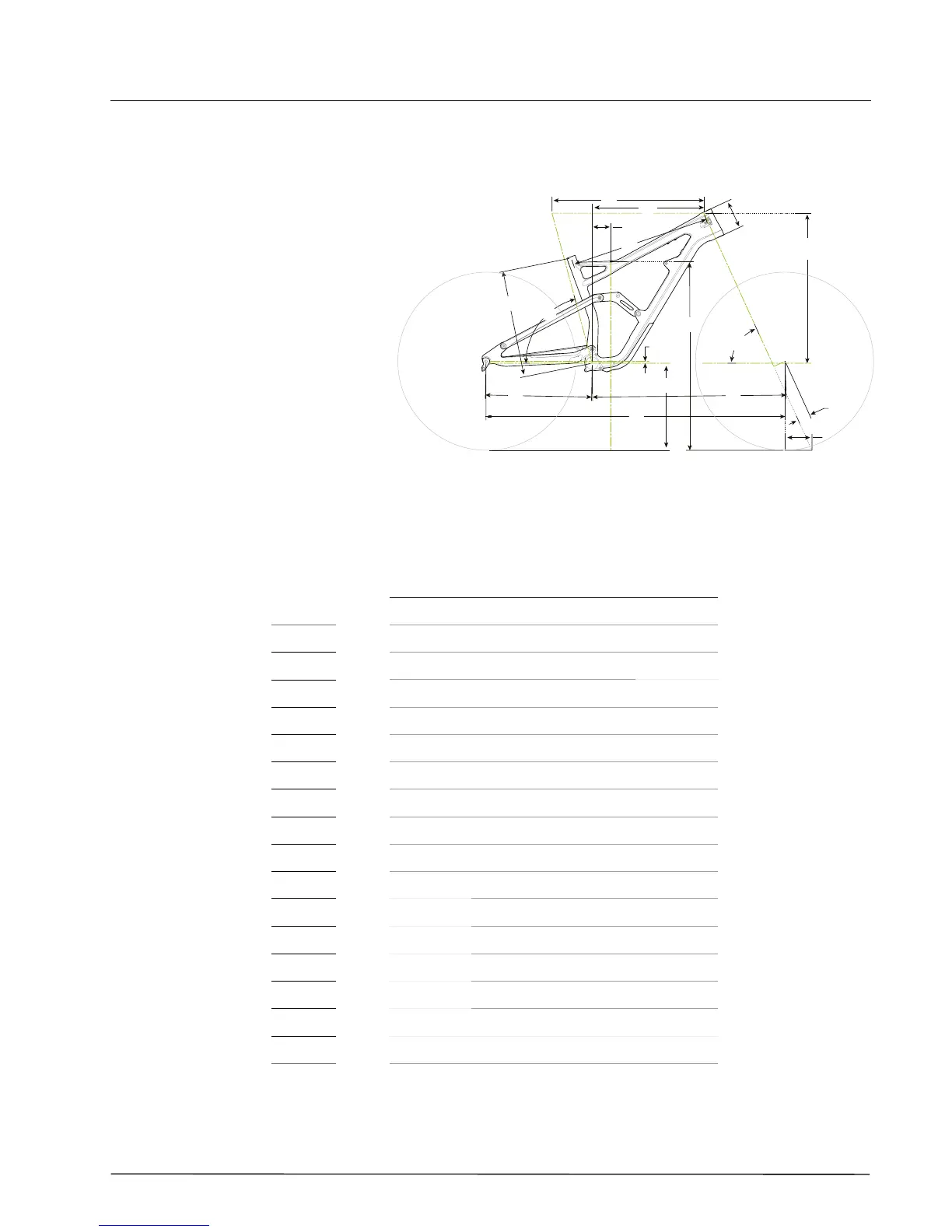

JEKYLL Geometry
Dimensions = (centimeter/inches)
