Chapter 1
1-13
T-1-9

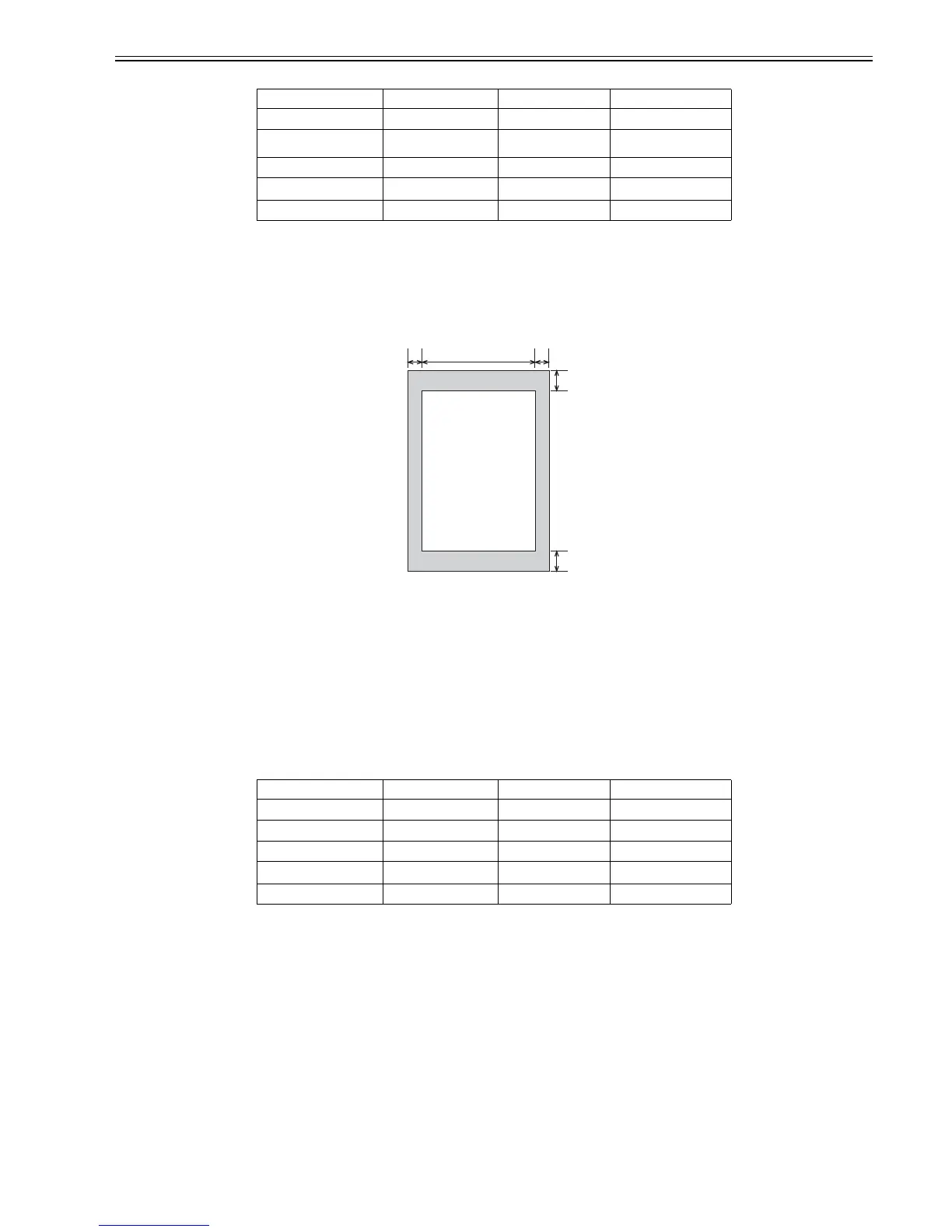

1.1.4.4 Recording Range (Reception)
0020-2562
i-SENSYS MF4300dn / i-SENSYS MF4350d / i-SENSYS MF4380dn / i-SENSYS MF4310/4318 / i-SENSYS MF4320d / i-SENSYS MF4330d / i-SENSYS
MF4340d / i-SENSYS D450d / i-SENSYS MF4370dn
F-1-15
T-1-10
1.1.4.5 Recording Range (Printer)
0020-2563
i-SENSYS MF4300dn / i-SENSYS MF4350d / i-SENSYS MF4380dn / i-SENSYS MF4310/4318 / i-SENSYS MF4320d / i-SENSYS MF4330d / i-SENSYS
MF4340d / i-SENSYS D450d / i-SENSYS MF4370dn
item A4 Letter Legal
effective recording width 204 +1.0/-2.0 mm 210 +2.0/-2.0 mm 210 +2.0/-2.0 mm
effective recording left
margin
3.0 +2.0/-2.0 mm 3.0 +2.0/-2.0 mm 3.0 +2.0/-2.0 mm
right margin 3.0 +2.0/-2.0 mm 3.0 +2.0/-2.0 mm 3.0 +2.0/-2.0 mm
leading edge margin 4.0 +2.0/-2.0 mm 4.0 +2.0/-2.0 mm 4.0 +2.0/-2.0 mm
trailing edge margin 5.0 +2.0/-2.0 mm 5.0 +2.0/-2.0 mm 5.0 +2.0/-2.0 mm
[1] leading edge of document [6] trailing edge margin
[2]left margin [7] non-scanning area
[3] effective scanning width [8] scanning range
[4] right margin [9]trailing edge of document
[5] leading edge margin
item A4 Letter Legal
effective recording width 206 +1.0/-2.0 mm 212 +2.0/-2.0 mm 212 +2.0/-2.0 mm
left margin 2.0 +2.0/-2.0 mm 2.0 +2.0/-2.0 mm 2.0 +2.0/-2.0 mm
right margin 2.0 +2.0/-2.0 mm 2.0 +2.0/-2.0 mm 2.0 +2.0/-2.0 mm
leading edge margin 2.0 +2.0/-2.0 mm 2.0 +2.0/-2.0 mm 2.0 +2.0/-2.0 mm
trailing edge margin 6.0 +2.0/-2.0 mm 6.0 +2.0/-2.0 mm 6.0 +2.0/-2.0 mm
[8]
[7]
[4][2]
[5]
[6]
[3]
[1]
[9]
