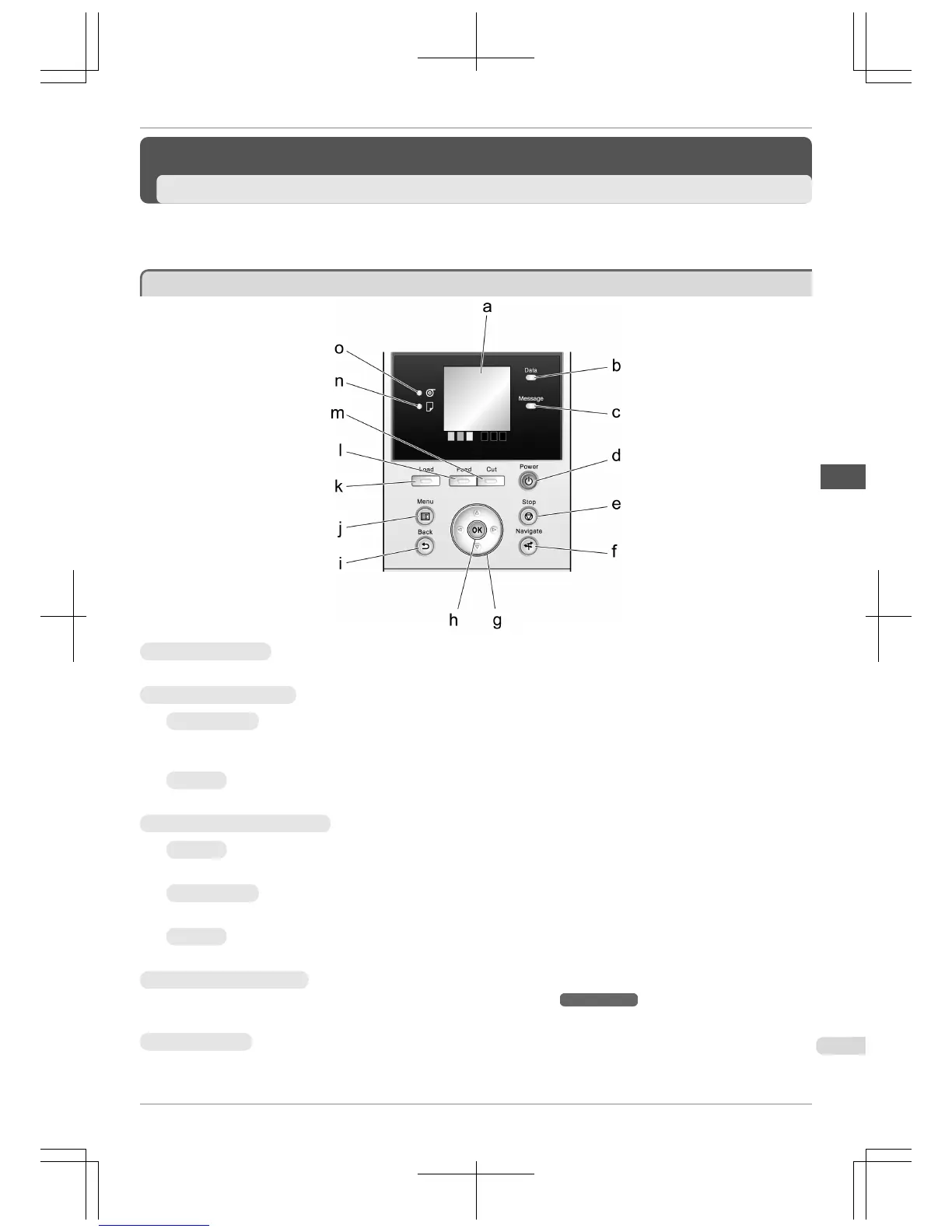

Control Panel
Control Panel
a
Display Screen
Shows printer menus, as well as the printer status and messages.
b
Data Lamp (green)
• Flashing
During printing, the Data lamp flashes when the printer is receiving or processing print jobs. Otherwise,
this lamp flashes when the print job is paused or the printer is updating the firmware.
• Off
There are no active print jobs when the Data lamp is off.
c Message Lamp (orange)
•
On
A warning message is displayed.
•
Flashing
An error message is displayed.
• Off
The printer is off or is operating normally.
d Power button (green)
Turns the printer on and off. (See "Turning the Printer On and Off.") →User's Guide
The Power button is lit when the printer is on or in Sleep mode.
e
Stop button
Cancels print jobs in progress and ends the ink drying period.
iPF765
Control Panel
Basic Guide
Printer Parts Operations and Display Screen
43

Canon imagePROGRAF iPF765 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 917 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Certification	CE, RoHS, ECO, WEEE
Storage media	HDD
Internal storage capacity	250 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Power requirements	100 - 240V, 50/60Hz
Power consumption (standby)	5 W
Power consumption (typical)	140 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7\\r Mac OS 10.5 - 10.7.x

Weight and Dimensions

Dimensions (WxDxH)	1304 x 1100 x 1062 mm
