Printer parts
Printer parts
Front .............................................................................................................................................................. 55
Side ............................................................................................................................................................... 56
Top Cover (Inside) ........................................................................................................................................ 57
Roll Cover (Inside) ........................................................................................................................................ 58
Carriage ........................................................................................................................................................ 58
Ink Tank Cover (Inside) ................................................................................................................................ 59

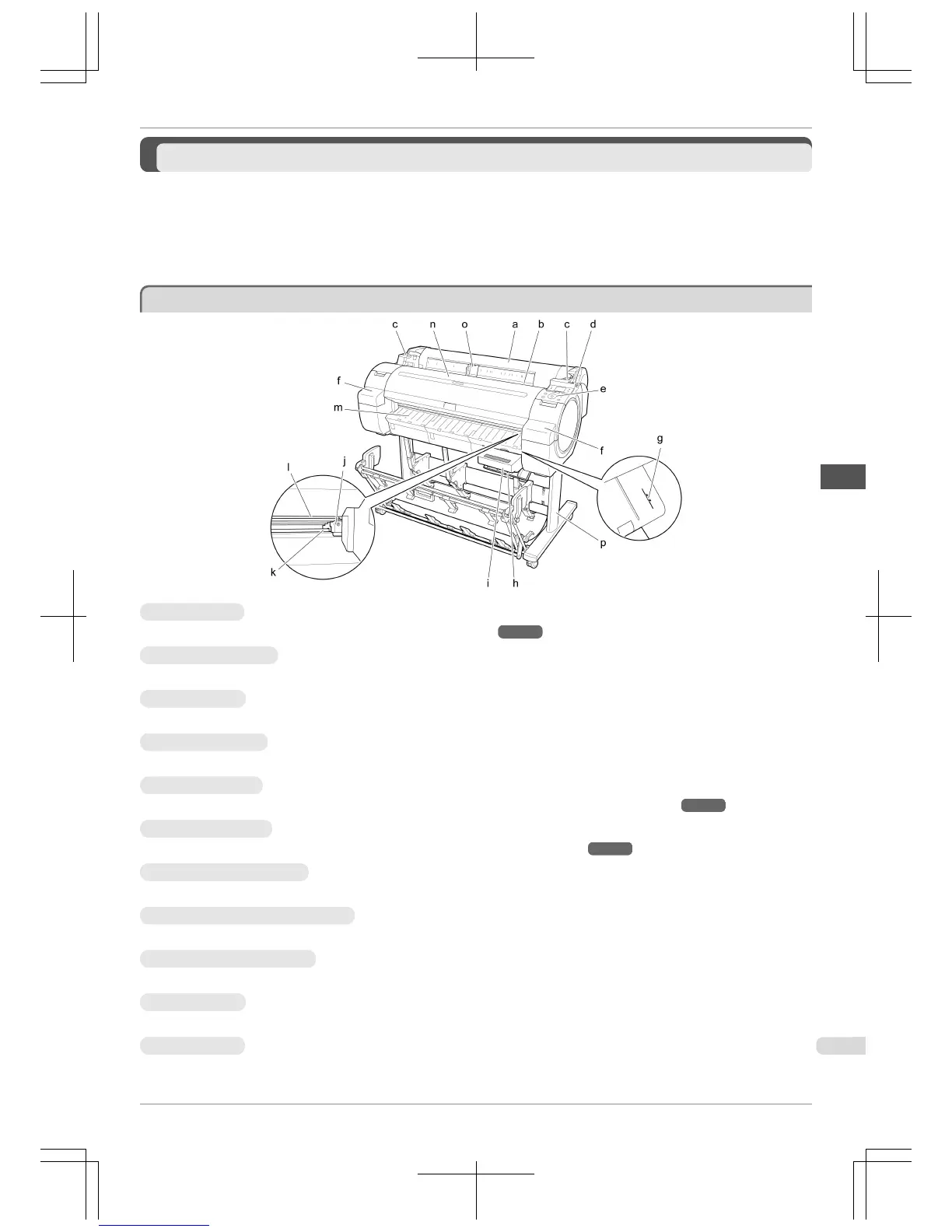

Front
Front
a
Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).") →P.58
b
Paper Feed Slot
When loading paper, insert it here.
c
Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d
Release Lever
When releasing the Paper Retainer, push this lever back.
e
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") →P.43
f
Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") →P.59
g
Paper Alignment Line
An orange line for alignment of paper.
h
Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge.
i
Maintenance Cartridge
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the cartridge when it is full.)
j
Cutter Unit
A round-bladed cutter for automatic roll cutting.
k
Cutter Rail
The Cutter Unit passes over this rail to cut paper.
iPF765
Front
Basic Guide
Printer Parts Printer parts
55
