• 1:
To make monitoring tone of the phone line from the speaker from the start of communication until the completion.
• 2:
Not used
• 3 (OFF):
There will be no monitoring tone of the phone line from the speaker.
007: ATT transmission level
Set the transmission level (ATT).
Increase the transmission level (make it closer to 8) in the case of frequent errors caused by line status at the time of
communication.
NOTE:
Error codes caused by line status at the time of transmission
##100, ##101, ##102, ##104, ##201, ##280, ##281, ##282, ##283, ##284, ##750, ##752, ##754, ##755, ##757, ##759, ##760,
##762, ##764, ##765, ##767, ##769, ##770, ##772, ##774, ##775, ##777, ##779, ##780, ##782, ##784, ##785, ##787, ##789
Error codes caused by line status at the time of reception
##103, ##106, ##107, ##201, ##793
008: Upper limit for V.34 modulation speed
Select the upper limit of the modulation speed (baud rate) in the V.34 primary channel.
When 4 (2743 baud) is selected, the communication is actually performed at 2400 baud.
009: Upper limit of V.34 data speed
Select an upper limit of data transmission speed in the V.34 primary channel in the range between 2.4k and 33.6kbps at 2400bps
intervals (0: 2.4 kbps to 13: 33.6 kbps).
010: Pseudo CI signal frequency
Set pseudo CI signal frequency.
Depending on the type of external phones, there is no ring tone when the FAX/TEL switching function is working. Change the
pseudo CI signal frequency when there is no ring tone.

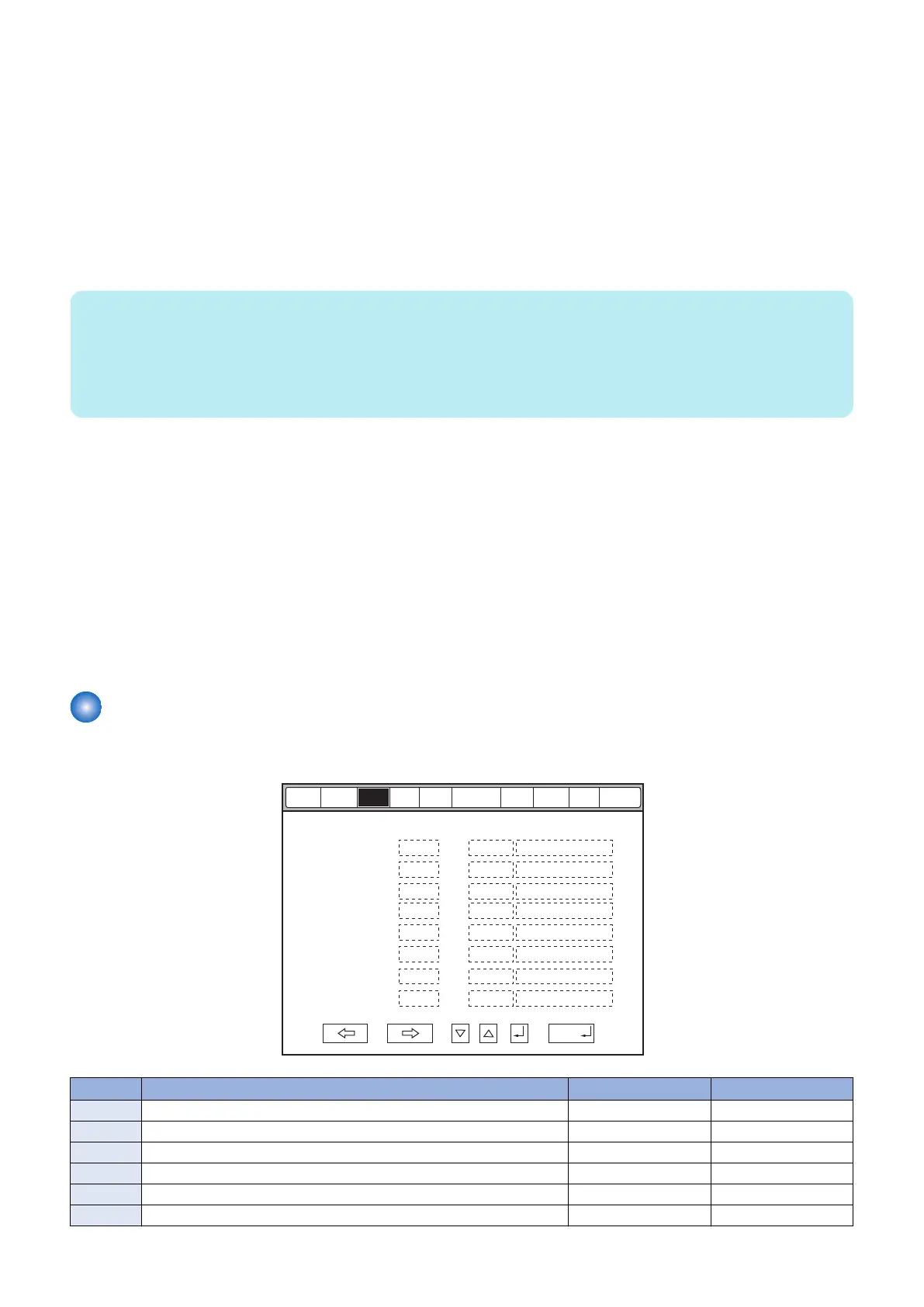

Setting of Numeric Parameter (NUMERIC Param.)
■ Configuration of Numeric Parameters
<1/10> <READY>
ReportSssw Menu
Num Ncu Type
IPFAX Print Clear Test
OK
001
002
003
004
005
006
007
008
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
xxxxx
←㸦yyyyy㸧{aaaaa㹼bbbbb}
←㸦yyyyy㸧{aaaaa㹼bbbbb}
←㸦yyyyy㸧{aaaaa㹼bbbbb}
←㸦yyyyy㸧{aaaaa㹼bbbbb}
←㸦yyyyy㸧{aaaaa㹼bbbbb}
←㸦yyyyy㸧{aaaaa㹼bbbbb}
←㸦yyyyy㸧{aaaaa㹼bbbbb}
←㸦yyyyy㸧{aaaaa㹼bbbbb}
No. Function Setting range Default value
002 RTN transmission condition (1) 1 to 99% 10
003 RTN transmission condition (2) 2 to 99 times 15
004 RTN transmission condition (3) 1 to 99 lines 12
005 NCC pause time (before ID code) 1 to 60 sec 4
006 NCC pause time (after ID code) 1 to 60 sec 4
007 Prepose time at the time of making a call 0 to 9999 (x 10 ms) 0
