Canon imageRUNNER ADVANCE C2020 Service Manual

4
4
4-87
4-87
Parts Replacement and Cleaning > Disassembly/Assembly - Pickup Feed System - > Removing the Multi-purpose Tray Pickup Roller
Parts Replacement and Cleaning > Disassembly/Assembly - Pickup Feed System - > Removing the Multi-purpose Tray Pickup Roller

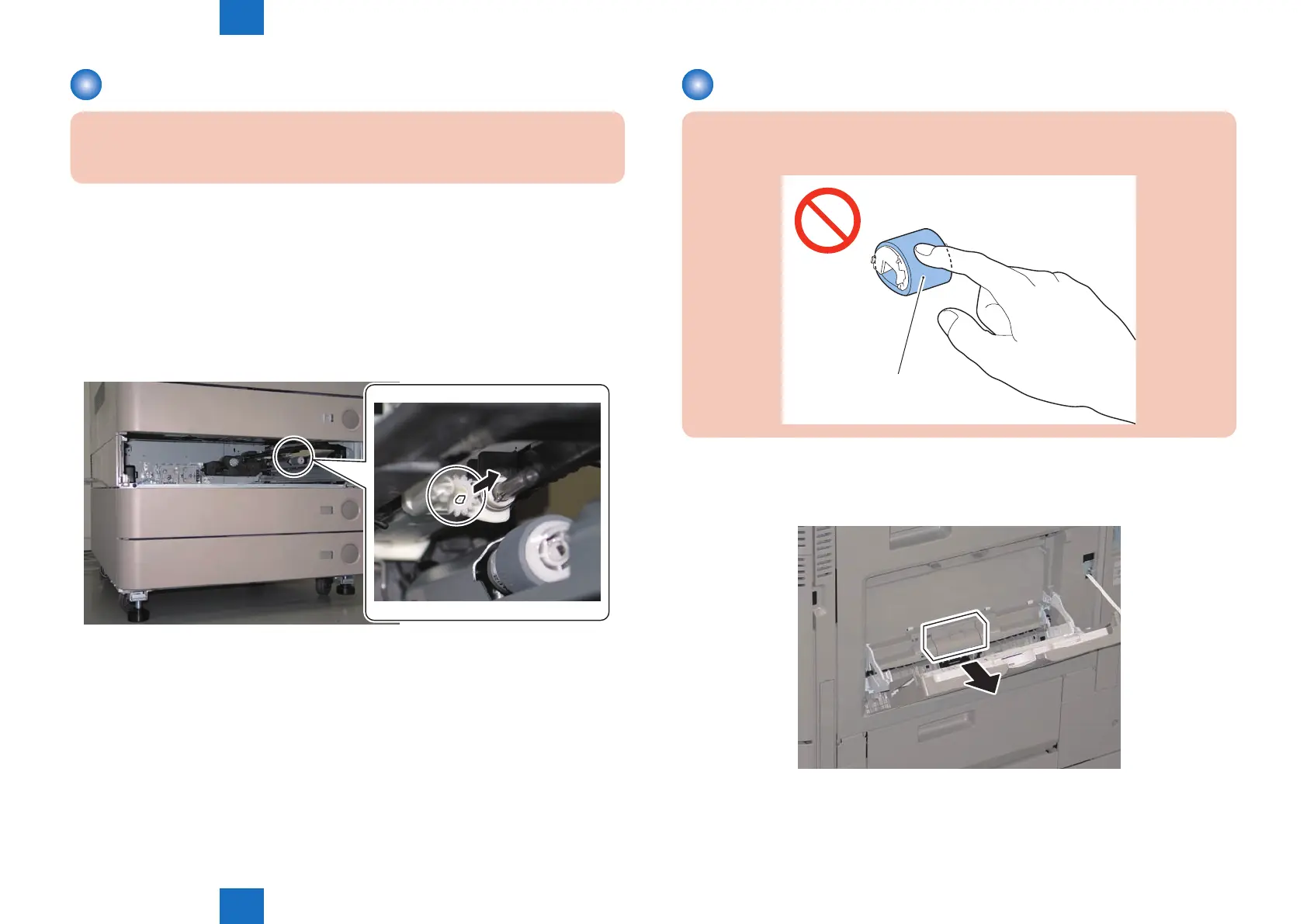

Removing the Pickup Assembly Idler Gear
CAUTION:
Do not touch the roller surface of the Pickup Roller, Feed Roller, and Separation Roller.
Preparation
• Remove the Cassette 2.
• Remove the Cassette 2 Pickup Roller.
• Remove the Cassette 2 Feed Roller.
Procedure
1) Remove the Cassette 2 Pickup Assembly Idler Gear.
• 1 Pin
• 1 Tab
F-4-166
Removing the Multi-purpose Tray Pickup Roller
CAUTION:
Do not touch the surface of the Multi-purpose Tray Pickup Roller.
Roller surface
F-4-167
Procedure
1) Open the Multi-purpose Tray.
2) Remove the Multi-purpose Tray Pickup Roller Cover.
F-4-168

Canon imageRUNNER ADVANCE C2020 Specifications

General

Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity (Standard)	550 sheets
Monthly Duty Cycle	50, 000 pages
Duplex Printing	Yes
Hard Disk Drive	80 GB
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan
Paper Sizes Supported	A3, A4, A5
Operating System Compatibility	Windows, Mac, Linux
Print Speed	20 ppm (black/color)
Dimensions	565 x 680 x 1125 mm
Weight	approx. 89 kg
