Canon IMAGERUNNER ADVANCE C5030 Technical Workbook

68

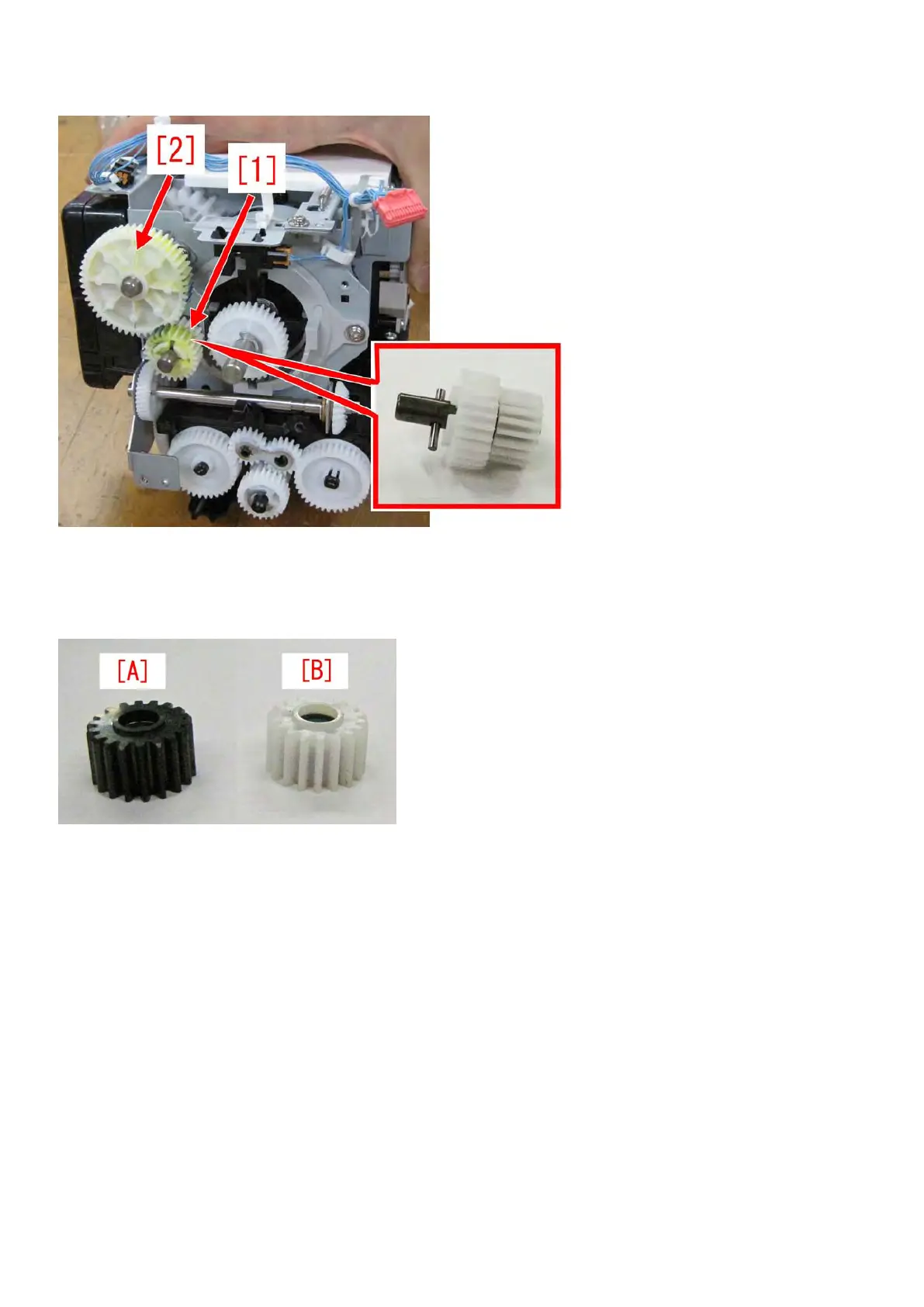

c-36) Remove the one-way gear unit [1]. Check if there is no breakage or the parallel pins are securely fitted.
There are 2 parallel pins. Remove the one-way gear unit [1] and 50T gear [2] to check them.
c-37) If the one-way gear has a crack, prepare a new type 18T one-way gear (FU6-0584-000) with increased
strength, and replace the old one with the new type. Photo [A] is a new type whereas [B] is an old type.
c-38) Assemble the parts in reverse order from step c-36) to c-1).
Symptom
E025-0x20 due to the small door left open and no detection of the toner insertion entrance cover sensor

Canon IMAGERUNNER ADVANCE C5030 Specifications

General

Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Print Speed	30 ppm (black/color)
Copy Speed	30 cpm (black/color)
Fax Resolution	400 x 400 dpi
Connectivity	Ethernet, USB 2.0
Type	Color Laser
Supported Paper Sizes	A4, A5, B5, Legal, Letter
Display	8.4-inch SVGA Full Color TFT Screen
Paper Capacity	Standard: 1, 200 sheets; Maximum: 5, 000 sheets
