Canon IMAGERUNNER ADVANCE C5030 Technical Workbook

82
Field Remedy
Replace the right deck.
- FM3-9829 1.1K RIGHT PAPER DECK ASS'Y
Symptom
020F Jam Code due to operation failure of the exchange flapper
Description
020F Jam occurred.
- 020F: Fixing Wrap Sensor Delay Jam
Cause

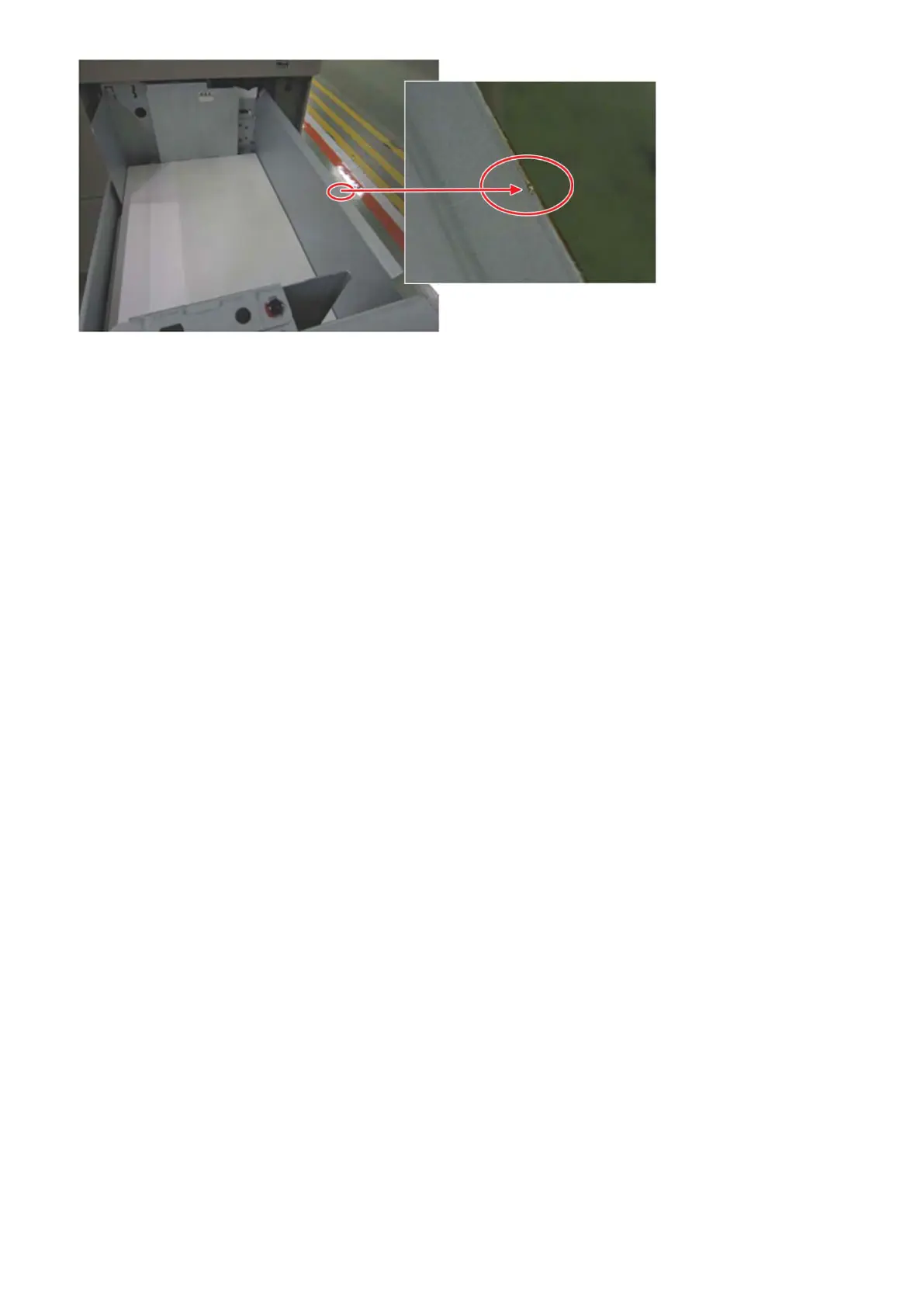

The exchange flapper arm [2] that operates the exchange flapper (delivery flapper) [1] was chipped off and
thus could not operate the exchange flapper correctly, which caused a paper jam. Fig. [A] shows the state in
which the flapper operates correctly, while Fig. [B] shows the state in which the flapper stops in the middle of
paper feed path.
