Canon iR2018 Series User Manual

Chapter 9
9-1

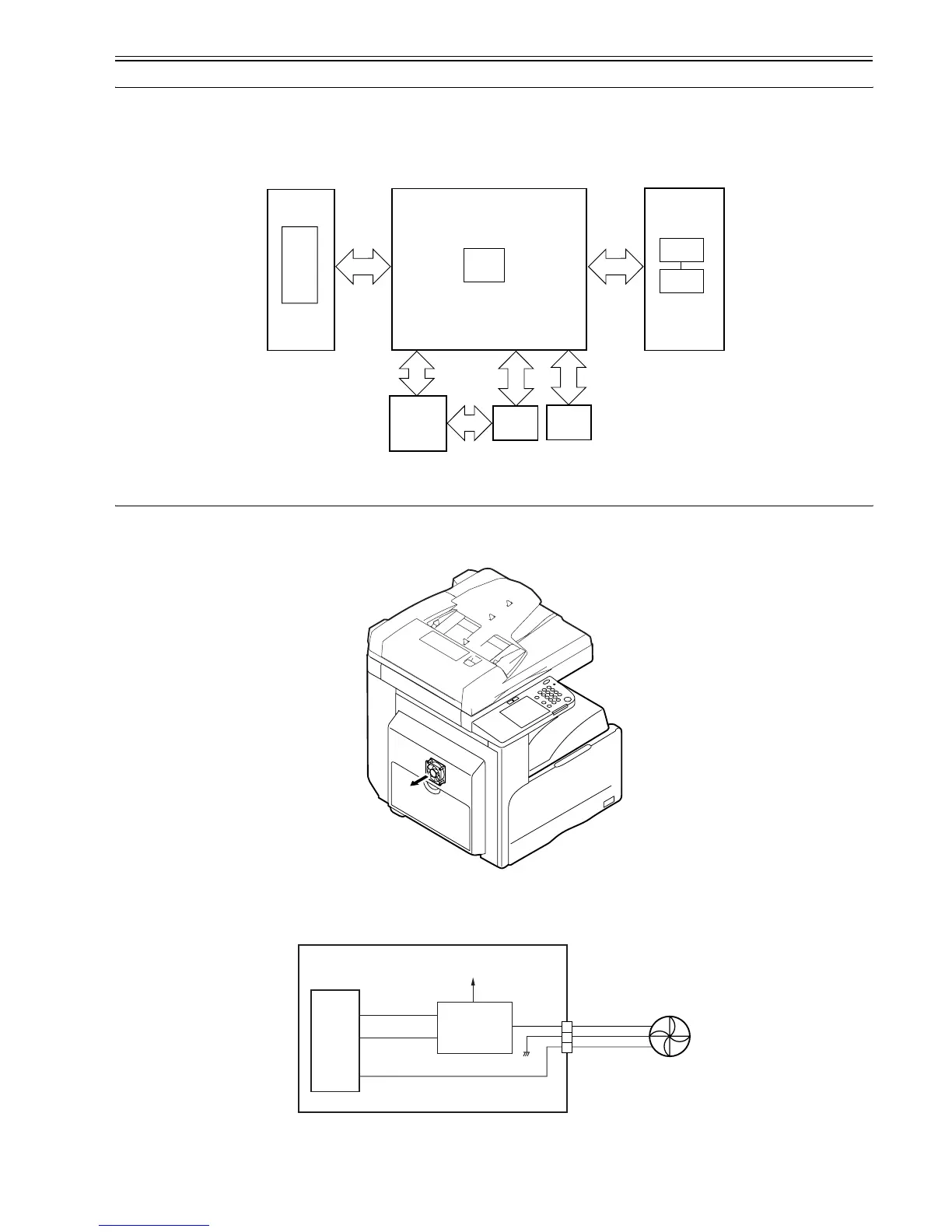

9.1 Control Panel
9.1.1 Overview (iR2030i/iR2030/iR2025i/iR2025/iR2022K/iR2022i/iR2018i)
0017-5479
The machine's control panel consists of the following PCBs, and is controlled by the ASIC of the image processor PCB.
F-9-1
9.2 Fans
9.2.1 Overview (iR2030i/iR2030/iR2025i/iR2025/iR2022K/iR2022i/iR2018i)
0017-5481
This machine is provided with a fan to cool the fixing unit.
F-9-2
9.2.2 Fan Control
0017-5482
The fan motor control circuit is shown below.
F-9-3
ASIC
CPU
Image processor
PCB
Control panel CPU PCB
Panel switch
PCB
LED
Key SW
LCD
Control
panel
inverter
PCB
Touch
panel
FM1
J219
+24V
FM1
FANDRV
GND
FAN_LOCK
Fan drive
voltage
switching circuit
CPU
DC Controller PCB
3
2
1
FAN FULL
FAN HALF

Canon iR2018 Series Specifications

General

Duplex Printing	Manual
Copy Resolution	600 x 600 dpi
Type	Monochrome Laser Multifunctional
Print Speed	18 ppm
Print Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Paper Output	100 sheets
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	18 cpm
Multiple Copy	Up to 99 copies
Scan Resolution	600 x 600 dpi
Scan to	USB
Interface	USB 2.0
Supported OS	Windows, Mac
Warm-up Time	Less than 15 seconds
