Canon iR2420 series User Manual

Chapter 8
8-5

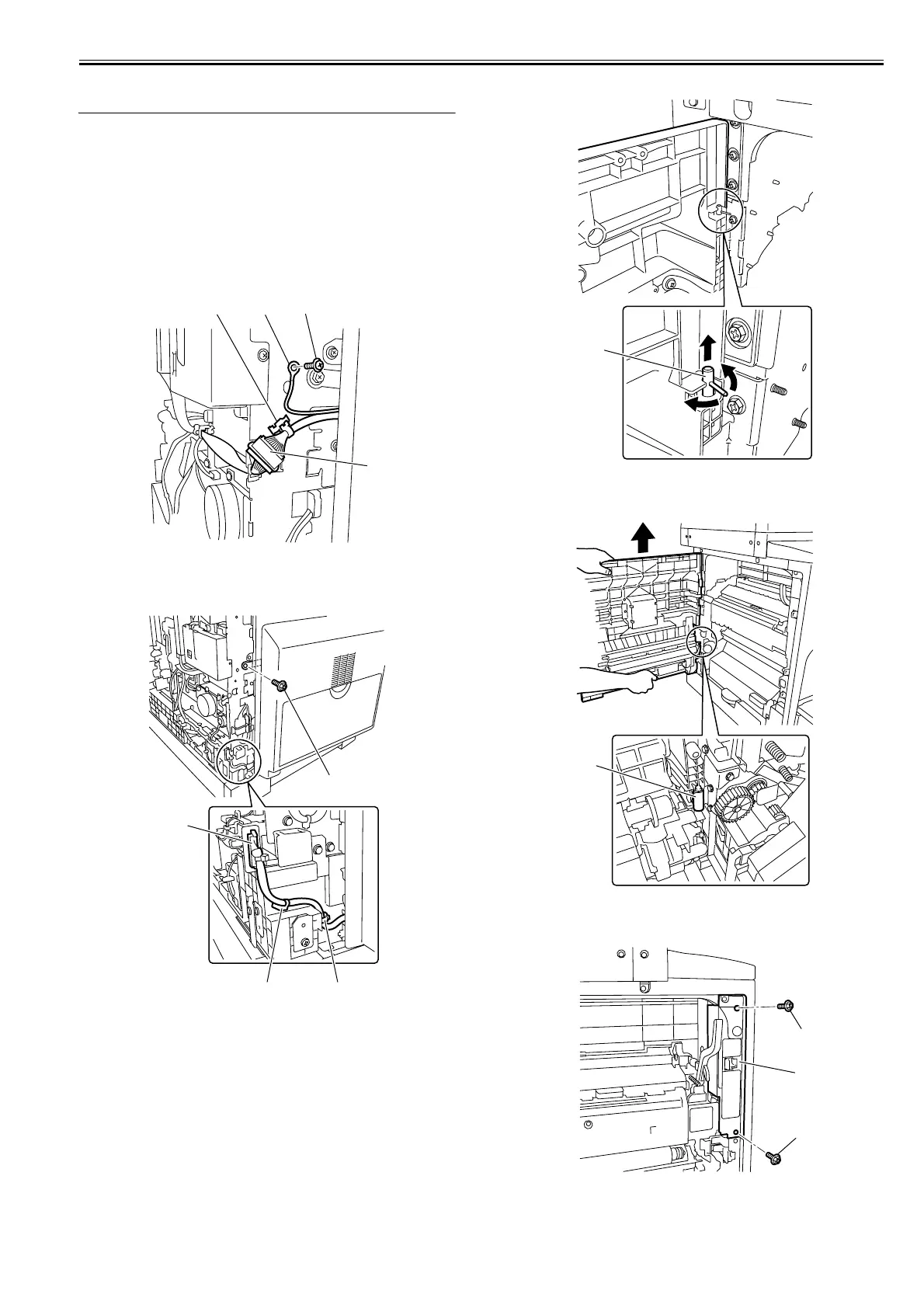

8.3 Parts Replacement Procedure
8.3.1 Fixing Unit
8.3.1.1 Removing the Fixing Unit
0020-4445
1) Draw out the drum unit.
2) Remove the rear cover.
3) Remove the left cover (rear).
4) Disconnect the connector [1] of the junction harness and remove the reus-
able band [2], then remove the earth wire [3].
- Screw [4] 1 pc.
F-8-5
5) Remove the screw [1] securing the door support band. Remove the con-
nector [2] and reusable band [3], and release the duplex unit harness from
the wire saddle [4].
F-8-6
6) Open the left door until it sops and pull out the hinge shaft [1].
F-8-7
7) Lift the left door with both hands to release it from the door rotation shaft
[1], and then remove the left door.
F-8-8
8) Detach the inner cover [1] at the upper front.
- Screws [2] 2 pcs.
F-8-9
[3] [4]
[1]
[2]
[1]
[2]
[3] [4]
[1]
[1]
[1]
[2]
[2]
