Canon iR2422 series User Manual

Chapter 6
6-12
7) Select "BitSwitch14" using the arrow key, and hen press the OK key.
8) Select "SW-14-1" using the arrow key, and hen press the OK key.
9) Select "On" using the arrow key, and hen press the OK key.
10) Press the Reset key to exit the service mode.
11) Close the front cover. The machine will run in the developer idling mode
for about 1 minute.
12) When the machine stops, the idling mode ends.
Install, the toner cartridge following the above-mentioned procedure.

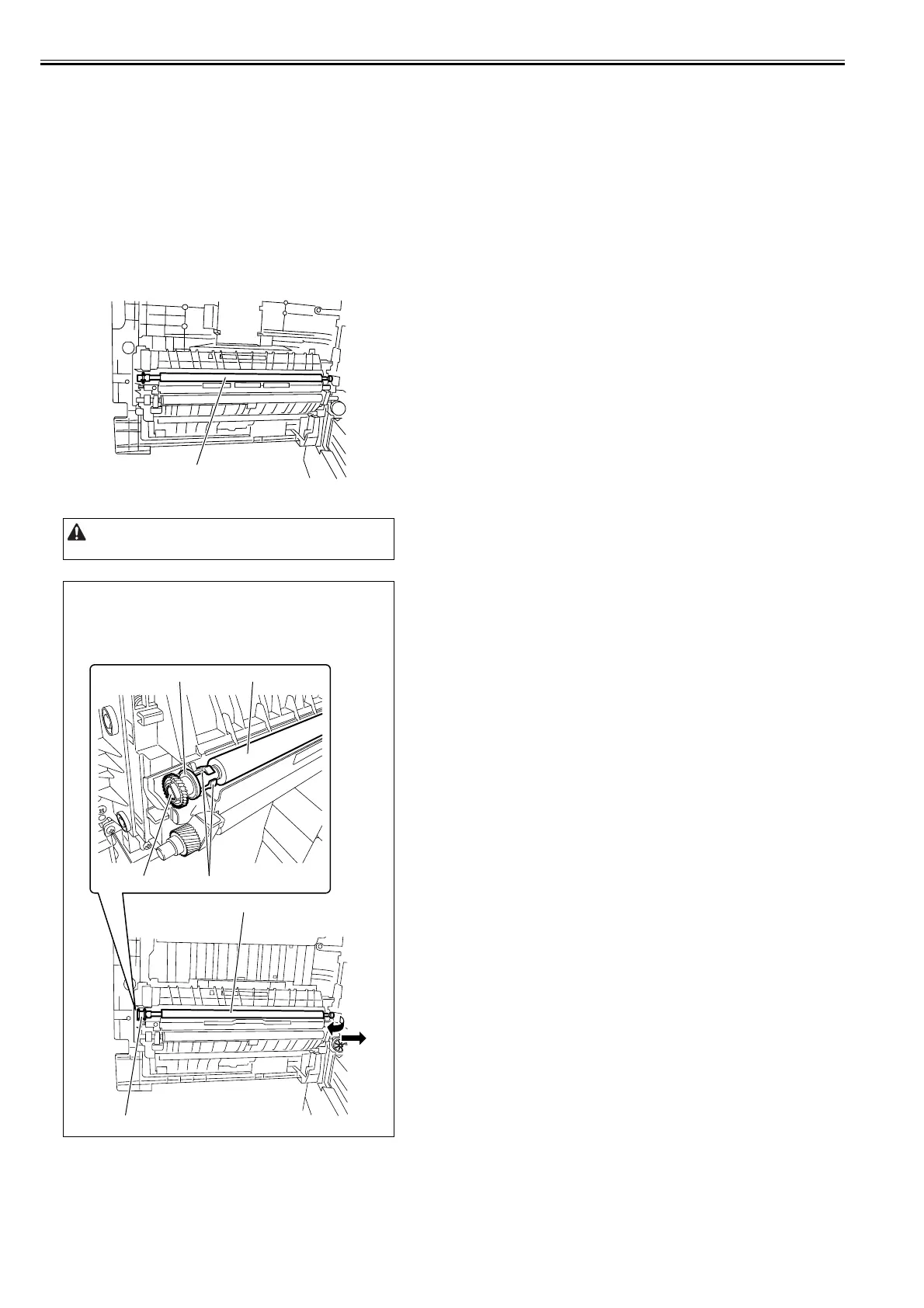

6.10.3 Transfer Charging Roller
6.10.3.1 Removing the Transfer Charging Roller
0020-4416
1) Open the left door.
2) Remove the transfer charging roller [1]
F-6-21
Do not touch the transfer charging roller surface.
MEMO:
The transfer charging roller bearing [1] could be the same shape as the
figure below. If so, detach the transfer charging roller towards the arrow [3]
and [4]. Gear [5] will come off when detaching the transfer charging roller.
Be careful not to lose the gear [5]. When attaching the transfer charging
roller, apply transfer charging roller D cut[6] to gear [5] D cut.
[1]
[5]
[1][6]
[2]
[2][5]
[3]
[4]

Canon iR2422 series Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Max Paper Size	A4
Connectivity	USB, Ethernet
Paper Output	100 sheets
Functions	Print, Copy, Scan
Print Speed (A4/B/W)	22 ppm
Copy Speed (A4)	Up to 22 ppm (A4)
Scan Resolution	600 x 600 dpi
Scanner Type	Flatbed
Paper Capacity	250 sheets
Interface	USB 2.0, 10/100 Base-TX
Operating System Compatibility	Windows, Mac, Linux
Paper Input (Standard)	250 sheets
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Paper Weight	60 to 163 gsm
Multiple Copy	1-99 copies
Zoom	25-400%
Scan to	USB
