Canon iR2422 series User Manual

Chapter 7
7-4

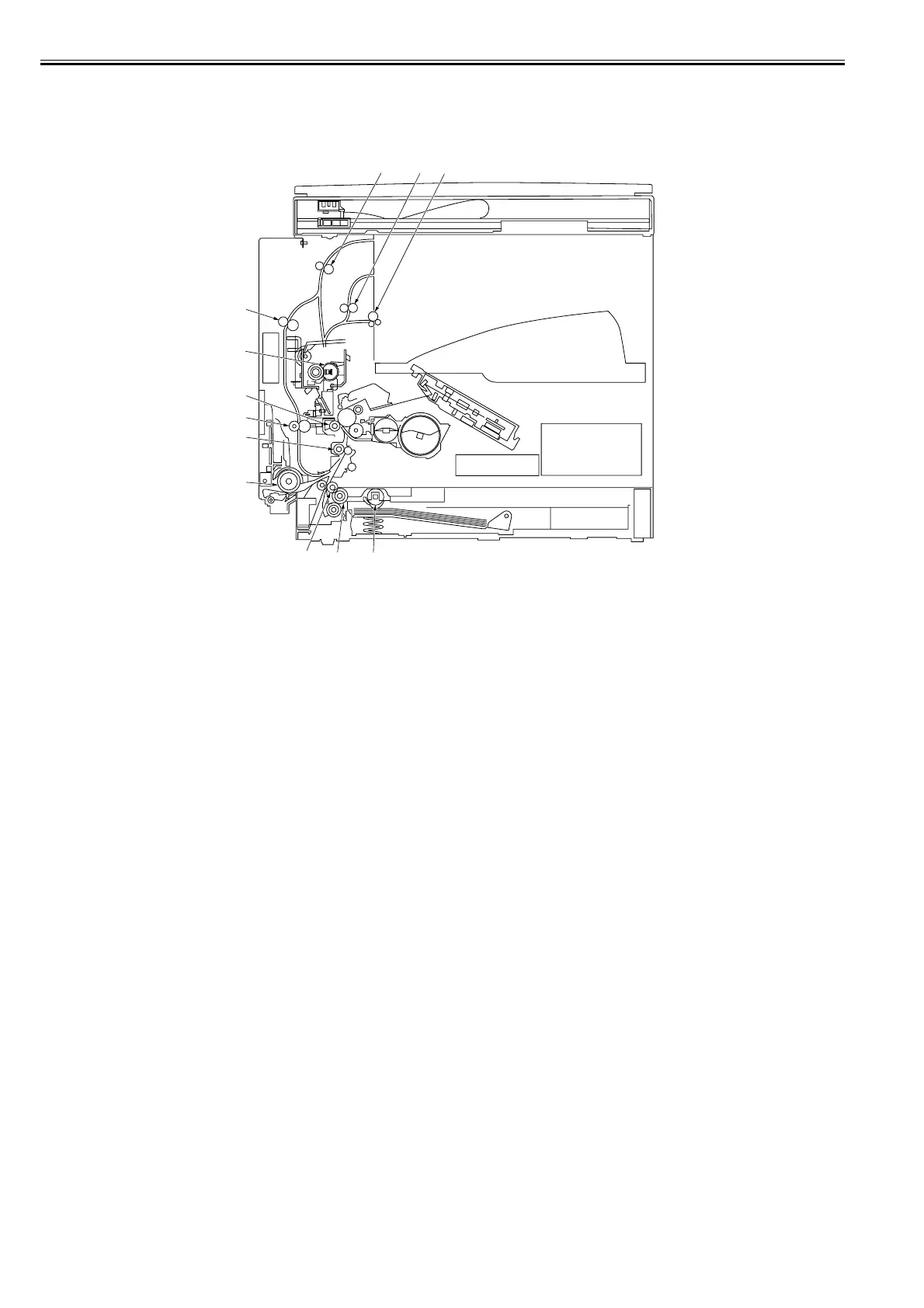

7.1.4 Roller Layout Drawing
0020-4116
The layout of the rollers used in the pickup/feeding system is shown below.
F-7-3
[1] Pickup roller
[2] Cassette pickup roller
[3] Feed roller 1
[4] Multi pickup roller
[5] Registration roller
[6] Duplex print paper feed roller 3
[7] Transfer roller
[8] Fixing roller
[9] Duplex print paper feed roller 2
[10] Duplex print paper feed roller 1
[11] Second delivery roller
[12] First delivery roller
7.1.5 Paper Path Drawing(Printer on its own)
0020-4117
[12]
[11]
[10]
[9]
[4]
[5]
[1]
[7]
[6]
[8]
[2][3]

Canon iR2422 series Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Max Paper Size	A4
Connectivity	USB, Ethernet
Paper Output	100 sheets
Functions	Print, Copy, Scan
Print Speed (A4/B/W)	22 ppm
Copy Speed (A4)	Up to 22 ppm (A4)
Scan Resolution	600 x 600 dpi
Scanner Type	Flatbed
Paper Capacity	250 sheets
Interface	USB 2.0, 10/100 Base-TX
Operating System Compatibility	Windows, Mac, Linux
Paper Input (Standard)	250 sheets
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Paper Weight	60 to 163 gsm
Multiple Copy	1-99 copies
Zoom	25-400%
Scan to	USB
