Canon MP540 - Screw & Washer List

(56/58)

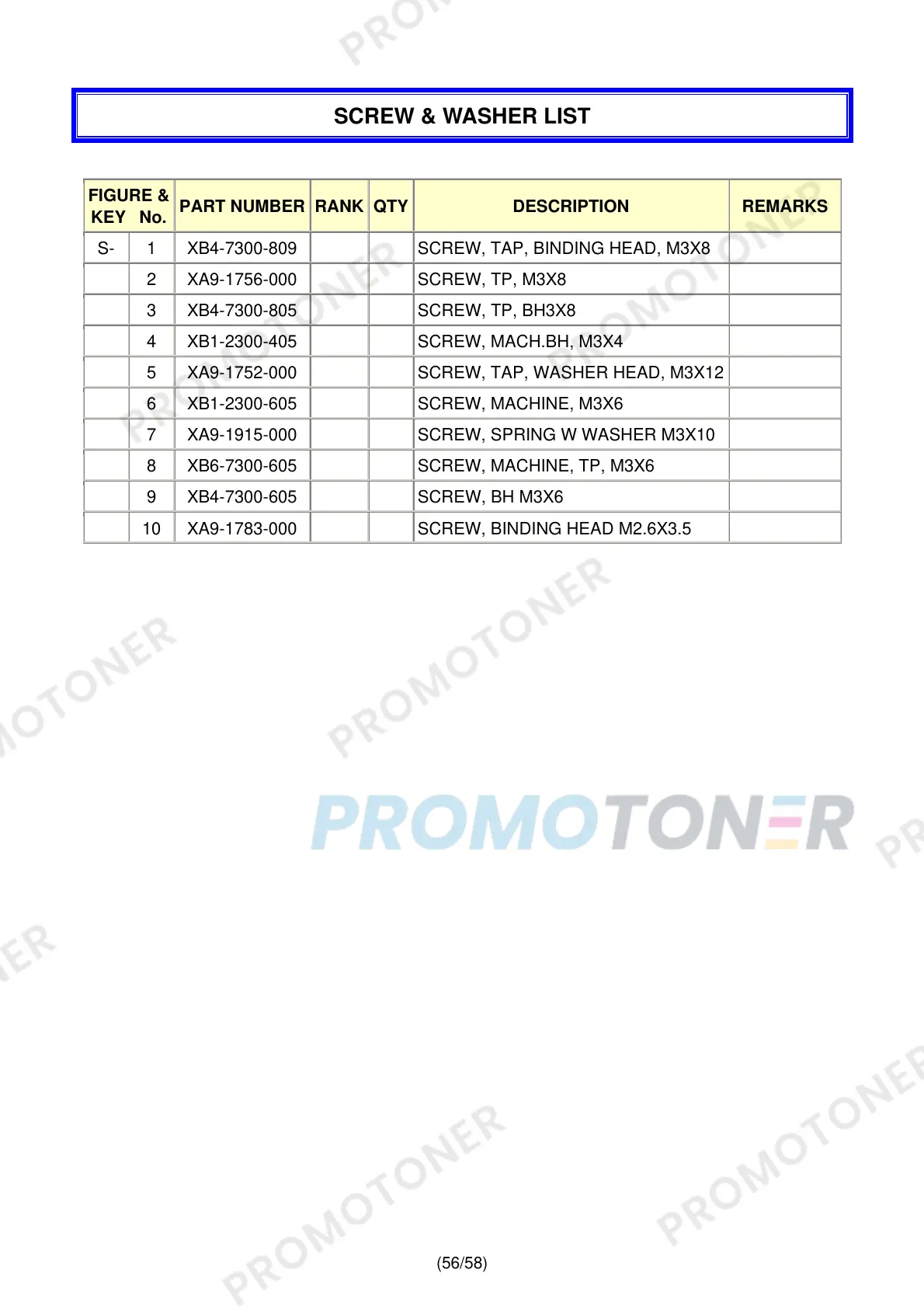

SCREW & WASHER LIST
FIGURE &
KEY No.
PART NUMBER RANK QTY DESCRIPTION REMARKS
S- 1 XB4-7300-809 SCREW, TAP, BINDING HEAD, M3X8
2 XA9-1756-000 SCREW, TP, M3X8
3 XB4-7300-805 SCREW, TP, BH3X8
4 XB1-2300-405 SCREW, MACH.BH, M3X4
5 XA9-1752-000 SCREW, TAP, WASHER HEAD, M3X12
6 XB1-2300-605 SCREW, MACHINE, M3X6
7 XA9-1915-000 SCREW, SPRING W WASHER M3X10
8 XB6-7300-605 SCREW, MACHINE, TP, M3X6
9 XB4-7300-605 SCREW, BH M3X6
10 XA9-1783-000 SCREW, BINDING HEAD M2.6X3.5
