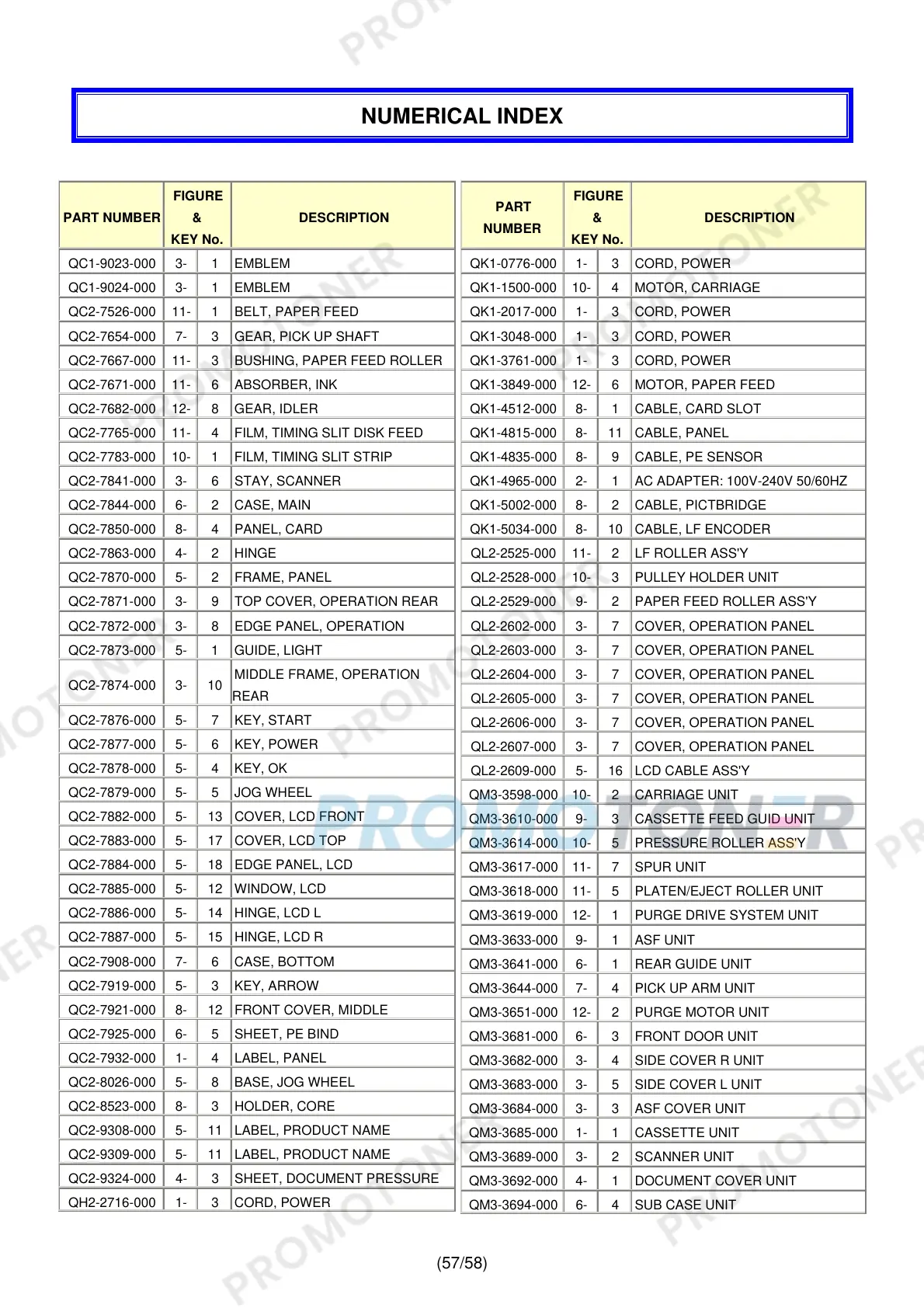

NUMERICAL INDEX
PART NUMBER
FIGURE
&
KEY No.
DESCRIPTION
QC1-9023-000 3- 1 EMBLEM
QC1-9024-000 3- 1 EMBLEM
QC2-7526-000 11- 1 BELT, PAPER FEED
QC2-7654-000 7- 3 GEAR, PICK UP SHAFT
QC2-7667-000 11- 3 BUSHING, PAPER FEED ROLLER
QC2-7671-000 11- 6 ABSORBER, INK
QC2-7682-000 12- 8 GEAR, IDLER
QC2-7765-000 11- 4 FILM, TIMING SLIT DISK FEED
QC2-7783-000 10- 1 FILM, TIMING SLIT STRIP
QC2-7841-000 3- 6 STAY, SCANNER
QC2-7844-000 6- 2 CASE, MAIN
QC2-7850-000 8- 4 PANEL, CARD
QC2-7863-000 4- 2 HINGE
QC2-7870-000 5- 2 FRAME, PANEL
QC2-7871-000 3- 9 TOP COVER, OPERATION REAR
QC2-7872-000 3- 8 EDGE PANEL, OPERATION
QC2-7873-000 5- 1 GUIDE, LIGHT
QC2-7874-000 3- 10
MIDDLE FRAME, OPERATION
REAR
QC2-7876-000 5- 7 KEY, START
QC2-7877-000 5- 6 KEY, POWER
QC2-7878-000 5- 4 KEY, OK
QC2-7879-000 5- 5 JOG WHEEL
QC2-7882-000 5- 13 COVER, LCD FRONT
QC2-7883-000 5- 17 COVER, LCD TOP
QC2-7884-000 5- 18 EDGE PANEL, LCD
QC2-7885-000 5- 12 WINDOW, LCD
QC2-7886-000 5- 14 HINGE, LCD L
QC2-7887-000 5- 15 HINGE, LCD R
QC2-7908-000 7- 6 CASE, BOTTOM
QC2-7919-000 5- 3 KEY, ARROW
QC2-7921-000 8- 12 FRONT COVER, MIDDLE
QC2-7925-000 6- 5 SHEET, PE BIND
QC2-7932-000 1- 4 LABEL, PANEL
QC2-8026-000 5- 8 BASE, JOG WHEEL
QC2-8523-000 8- 3 HOLDER, CORE
QC2-9308-000 5- 11 LABEL, PRODUCT NAME
QC2-9309-000 5- 11 LABEL, PRODUCT NAME
QC2-9324-000 4- 3 SHEET, DOCUMENT PRESSURE
Q
H2-2716-000 1- 3 CORD
,
POWER
PART
NUMBER
FIGURE
&
KEY No.
DESCRIPTION
QK1-0776-000 1- 3 CORD, POWER
QK1-1500-000 10- 4 MOTOR, CARRIAGE
QK1-2017-000 1- 3 CORD, POWER
QK1-3048-000 1- 3 CORD, POWER
QK1-3761-000 1- 3 CORD, POWER
QK1-3849-000 12- 6 MOTOR, PAPER FEED
QK1-4512-000 8- 1 CABLE, CARD SLOT
QK1-4815-000 8- 11 CABLE, PANEL
QK1-4835-000 8- 9 CABLE, PE SENSOR
QK1-4965-000 2- 1 AC ADAPTER: 100V-240V 50/60HZ
QK1-5002-000 8- 2 CABLE, PICTBRIDGE
QK1-5034-000 8- 10 CABLE, LF ENCODER
QL2-2525-000 11- 2 LF ROLLER ASS'Y
QL2-2528-000 10- 3 PULLEY HOLDER UNIT
QL2-2529-000 9- 2 PAPER FEED ROLLER ASS'Y
QL2-2602-000 3- 7 COVER, OPERATION PANEL
QL2-2603-000 3- 7 COVER, OPERATION PANEL
QL2-2604-000 3- 7 COVER, OPERATION PANEL
QL2-2605-000 3- 7 COVER, OPERATION PANEL
QL2-2606-000 3- 7 COVER, OPERATION PANEL
QL2-2607-000 3- 7 COVER, OPERATION PANEL
QL2-2609-000 5- 16 LCD CABLE ASS'Y
QM3-3598-000 10- 2 CARRIAGE UNIT
QM3-3610-000 9- 3 CASSETTE FEED GUID UNIT
QM3-3614-000 10- 5 PRESSURE ROLLER ASS'Y
QM3-3617-000 11- 7 SPUR UNIT
QM3-3618-000 11- 5 PLATEN/EJECT ROLLER UNIT
QM3-3619-000 12- 1 PURGE DRIVE SYSTEM UNIT
QM3-3633-000 9- 1 ASF UNIT
QM3-3641-000 6- 1 REAR GUIDE UNIT
QM3-3644-000 7- 4 PICK UP ARM UNIT
QM3-3651-000 12- 2 PURGE MOTOR UNIT
QM3-3681-000 6- 3 FRONT DOOR UNIT
QM3-3682-000 3- 4 SIDE COVER R UNIT
QM3-3683-000 3- 5 SIDE COVER L UNIT
QM3-3684-000 3- 3 ASF COVER UNIT
QM3-3685-000 1- 1 CASSETTE UNIT
QM3-3689-000 3- 2 SCANNER UNIT
QM3-3692-000 4- 1 DOCUMENT COVER UNIT
Q
M3-3694-000 6- 4 SUB CASE UNIT
