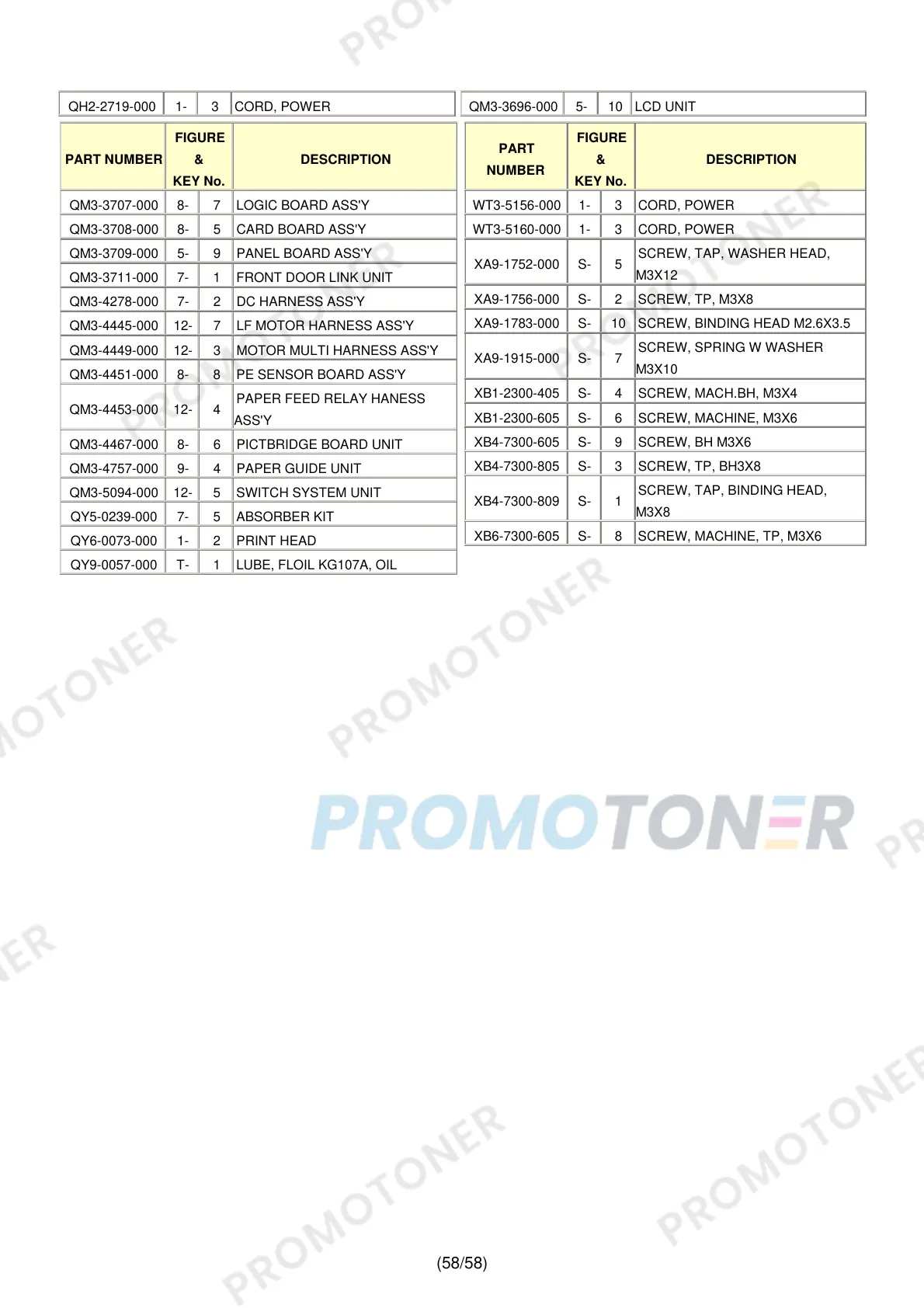

QH2-2719-000 1- 3 CORD, POWER QM3-3696-000 5- 10 LCD UNIT
PART NUMBER
FIGURE
&
KEY No.
DESCRIPTION
QM3-3707-000 8- 7 LOGIC BOARD ASS'Y
QM3-3708-000 8- 5 CARD BOARD ASS'Y
QM3-3709-000 5- 9 PANEL BOARD ASS'Y
QM3-3711-000 7- 1 FRONT DOOR LINK UNIT
QM3-4278-000 7- 2 DC HARNESS ASS'Y
QM3-4445-000 12- 7 LF MOTOR HARNESS ASS'Y
QM3-4449-000 12- 3 MOTOR MULTI HARNESS ASS'Y
QM3-4451-000 8- 8 PE SENSOR BOARD ASS'Y
QM3-4453-000 12- 4
PAPER FEED RELAY HANESS
ASS'Y
QM3-4467-000 8- 6 PICTBRIDGE BOARD UNIT
QM3-4757-000 9- 4 PAPER GUIDE UNIT
QM3-5094-000 12- 5 SWITCH SYSTEM UNIT
QY5-0239-000 7- 5 ABSORBER KIT
QY6-0073-000 1- 2 PRINT HEAD
QY9-0057-000 T- 1 LUBE, FLOIL KG107A, OIL
PART
NUMBER
FIGURE
&
KEY No.
DESCRIPTION
WT3-5156-000 1- 3 CORD, POWER
WT3-5160-000 1- 3 CORD, POWER
XA9-1752-000 S- 5
SCREW, TAP, WASHER HEAD,
M3X12
XA9-1756-000 S- 2 SCREW, TP, M3X8
XA9-1783-000 S- 10 SCREW, BINDING HEAD M2.6X3.5
XA9-1915-000 S- 7
SCREW, SPRING W WASHER
M3X10
XB1-2300-405 S- 4 SCREW, MACH.BH, M3X4
XB1-2300-605 S- 6 SCREW, MACHINE, M3X6
XB4-7300-605 S- 9 SCREW, BH M3X6
XB4-7300-805 S- 3 SCREW, TP, BH3X8
XB4-7300-809 S- 1
SCREW, TAP, BINDING HEAD,
M3X8
XB6-7300-605 S- 8 SCREW, MACHINE, TP, M3X6
