3-2. Special Notes on Repair Servicing
(Click on the image to enlarge it.)
Be sure to protect the machine from static electricity in repair servicing, especially the LCD, operation panel board, scanner
unit, logic board, card board, and IrDA board.
(1) External housing, scanner unit, and document cover removal
MP970 TABLE OF CONTENTS
1) Remove the cassette.

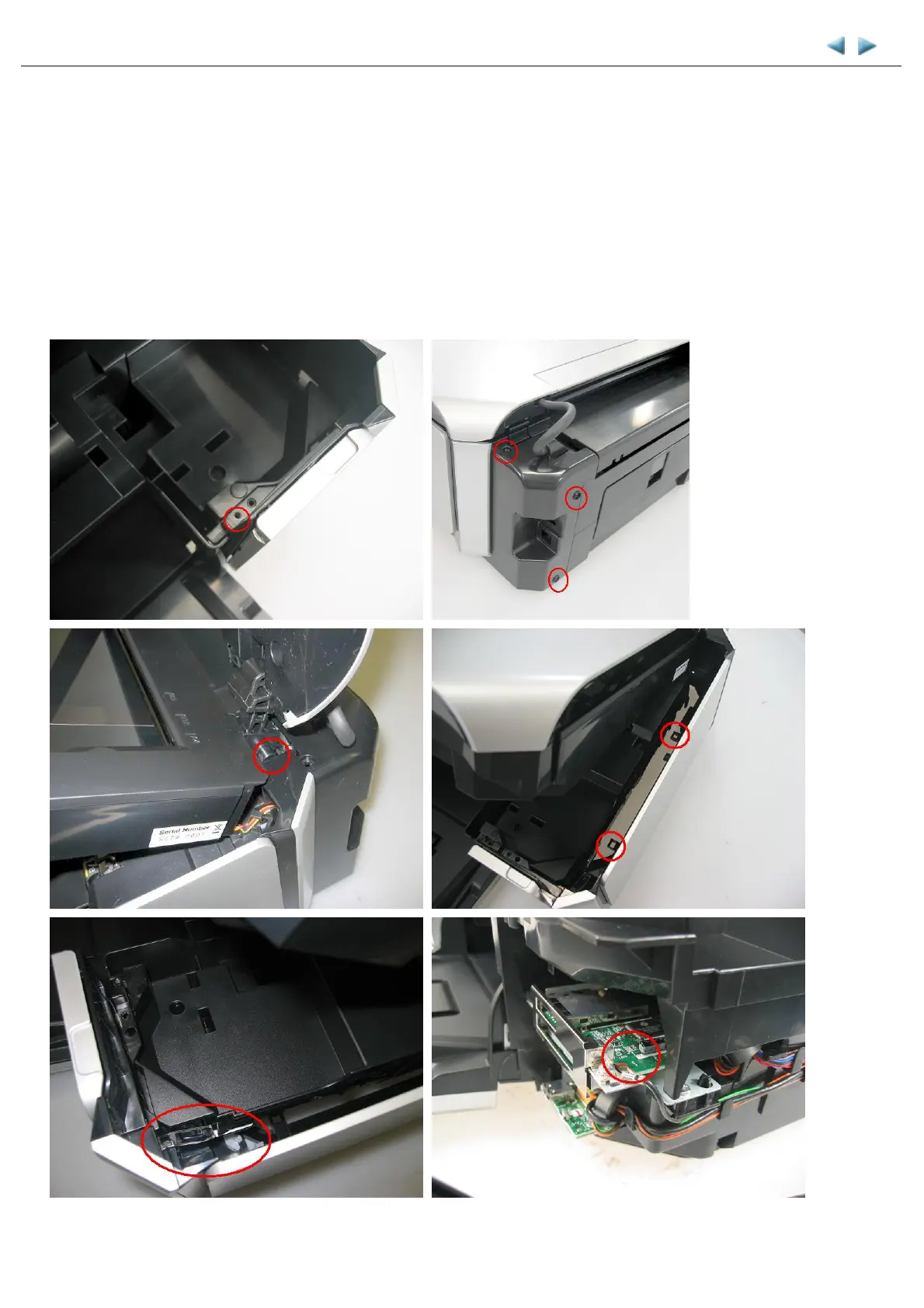

2) Open the front door and scanner unit, then remove the side cover R (4 screws).
<While slightly pulling up the back of the scanner unit, remove the side cover R. The side cover R holds the
scanner unit hinge.>
<Be cautious not to damage the LED guide and the card board (LED part)>
(See How to remove the side cover R.)
