Sufficient
Naedle
4
Insufficient
(Need
to
replace)

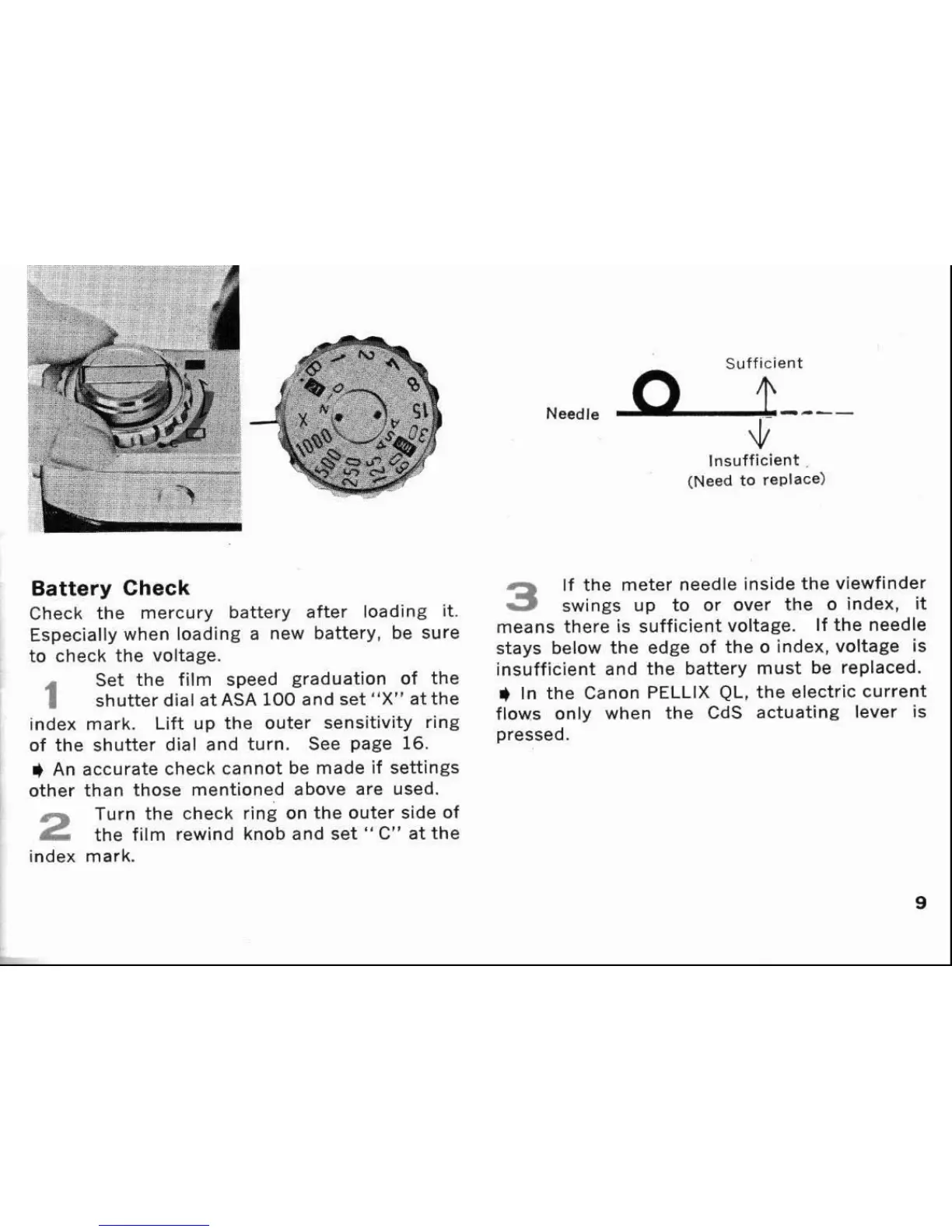

Battnrv
Check
If the meter needle inside the viewfinder
.
-
--
Check the mercury battery after loading
it.
Especially when loading a new battery, be sure
to check the voltage.
Set the
film speed graduation of the
1
shutter dial at ASA
100
and set "X" at the
index mark. Lift up the outer sensitivity ring
a
swings
up
to or over the o index,
it
means there is sufficient voltage. If the needle
stays below the edge of the o index, voltage is
insufficient and the battery must be replaced.
I)
In the Canon PELLIX QL, the electric current
flows only when the CdS actuating lever is
------A
of the shutter dial and turn. See page
16.
"leD>LiU.
I)
An accurate check cannot be made if settings
other than those mentioned above
are
used.
Turn the check ring on the outer side of
2
the film rewind knob and set
"C"
at the
index mark.
