Canon SELPHY CP770 User Manual

2
1.3 Adjustment Procedure

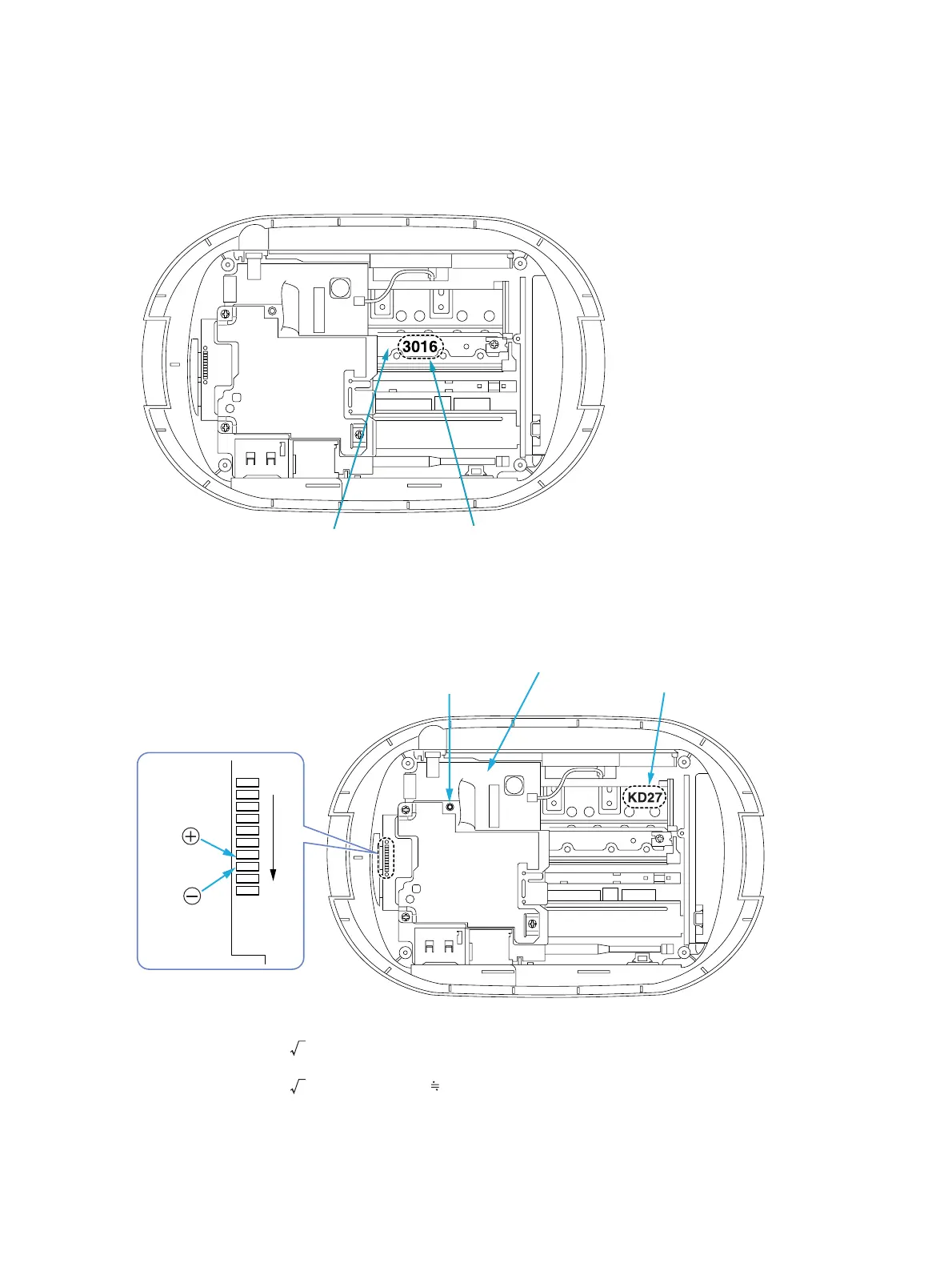

(1) Read the resistance value (Ω) at the specified position in the illustration below.
Resistance value indication position
Headunit
(2) Calculate the Voltage value as below.
Note: The calculation formula differs depending on the identification number indicated on the
head unit.
There are two identification codes, KD27.
Test point
M7
M1
M10
M8
Identification code
MAIN PCB ASS’Y
VR
■ Identification code: KD27
Voltage value = (Resistance value x 0.0845)
For example, when the resistance value is 3016 Ω
Voltage value = (3016 Ω x 0.0845) 15.964V

Canon SELPHY CP770 Specifications

General

Type	Compact Photo Printer
Print Technology	Dye-sublimation
Maximum Resolution	300 x 300 dpi
Print Speed (4 x 6)	47 seconds
Paper Sizes	4 x 6 inches
Connectivity	USB
Power Source	AC adapter
LCD Screen	2.5-inch color LCD
