The network name (SSID) for Wireless Direct appears while in Wireless Direct.
C: Search...
The Detected Wireless Routers screen is displayed to select a wireless router to connect to.
For a wireless router already connected to the computer, Available is displayed on
Communication Status.
If you select a wireless router with Not Connected on Communication Status from the list,
clicking Set displays the WPA/WPA2 or WEP setting screen for a wireless router.
If WEP Details Screen Appears
If WPA/WPA2 Details Screen Appears
D: Encryption Type:
Displays the encryption method used over the Wi-Fi.
•

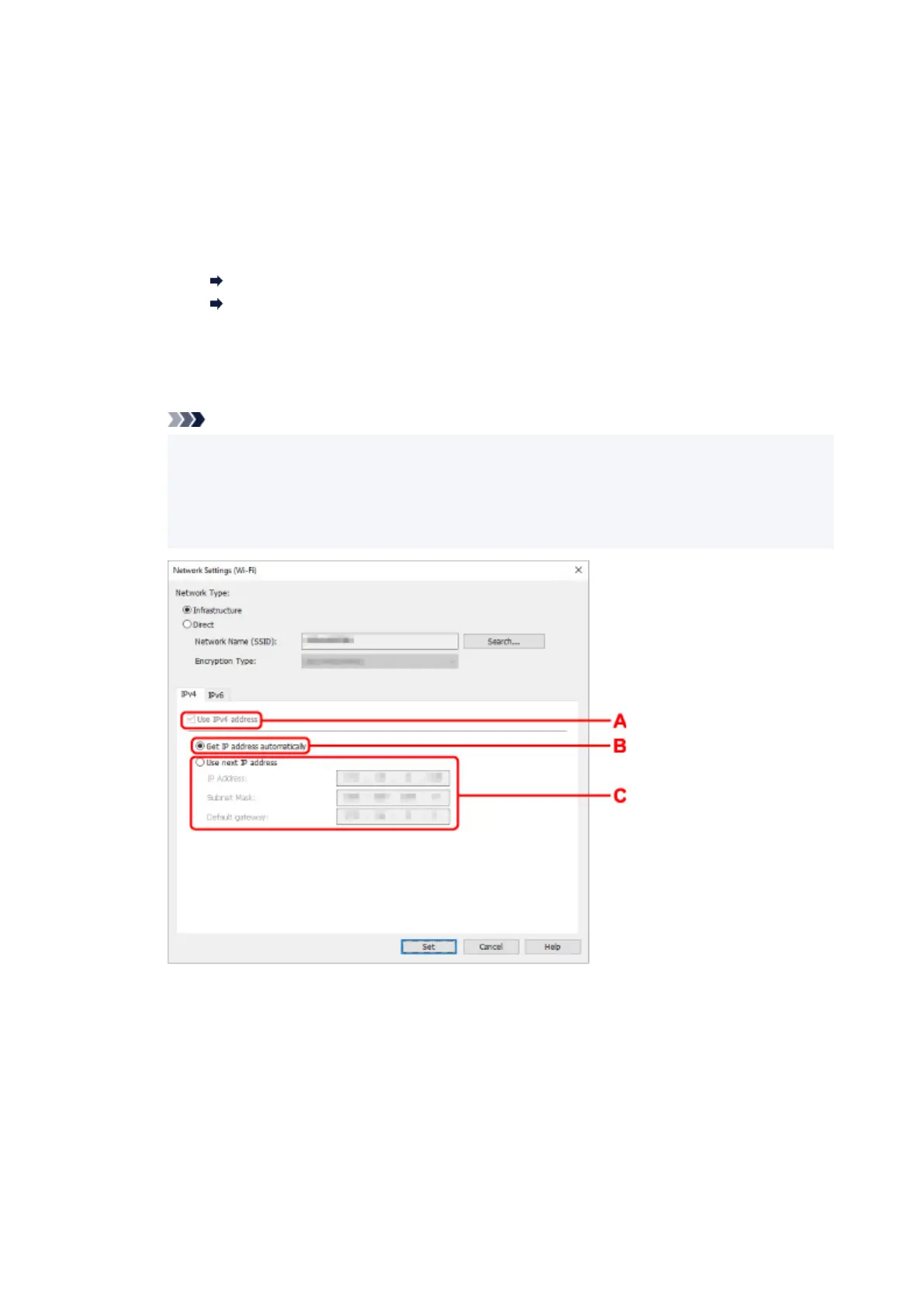

IPv4 settings
Note
•
The setting items below are available only when Infrastructure is selected for Network
Type:.
If Direct is selected, all items are displayed in a gray out status and you cannot perform any
settings.
A: Use IPv4 address
Always selected. (displayed in a gray out state)
B: Get IP address automatically
Select this option to use an IP address automatically assigned by a DHCP server. DHCP
server functionality must be enabled on your wireless router.
C: Use next IP address
Select this option if no DHCP server functionality is available in your setup where you use the
printer, or you want to use a fixed IP address.
66

Canon TR7660 Specifications

General

Print Technology	Inkjet
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	15 ipm
Print Speed (Color)	10 ipm
Scanner Type	Flatbed & ADF
Max Scan Resolution	1200 x 2400 dpi
Duplex Printing	Yes
Functions	Print, Scan, Copy, Fax
Fax Resolution	300 x 300 dpi
Automatic Document Feeder	Yes
Connectivity	Wi-Fi, USB, Ethernet
Paper Sizes	A4, A5, B5, Letter, Legal
Mobile Printing	Apple AirPrint, Canon PRINT app
Display	4.3-inch LCD touchscreen
