Canon XL H1 User Manual

10
Components Guide
XL H1
External control mode
VCR/PLAY mode
Power off
Auto
Shutter-Priority
Aperture-Priority
Manual
Spotlight
Night
Easy Recording

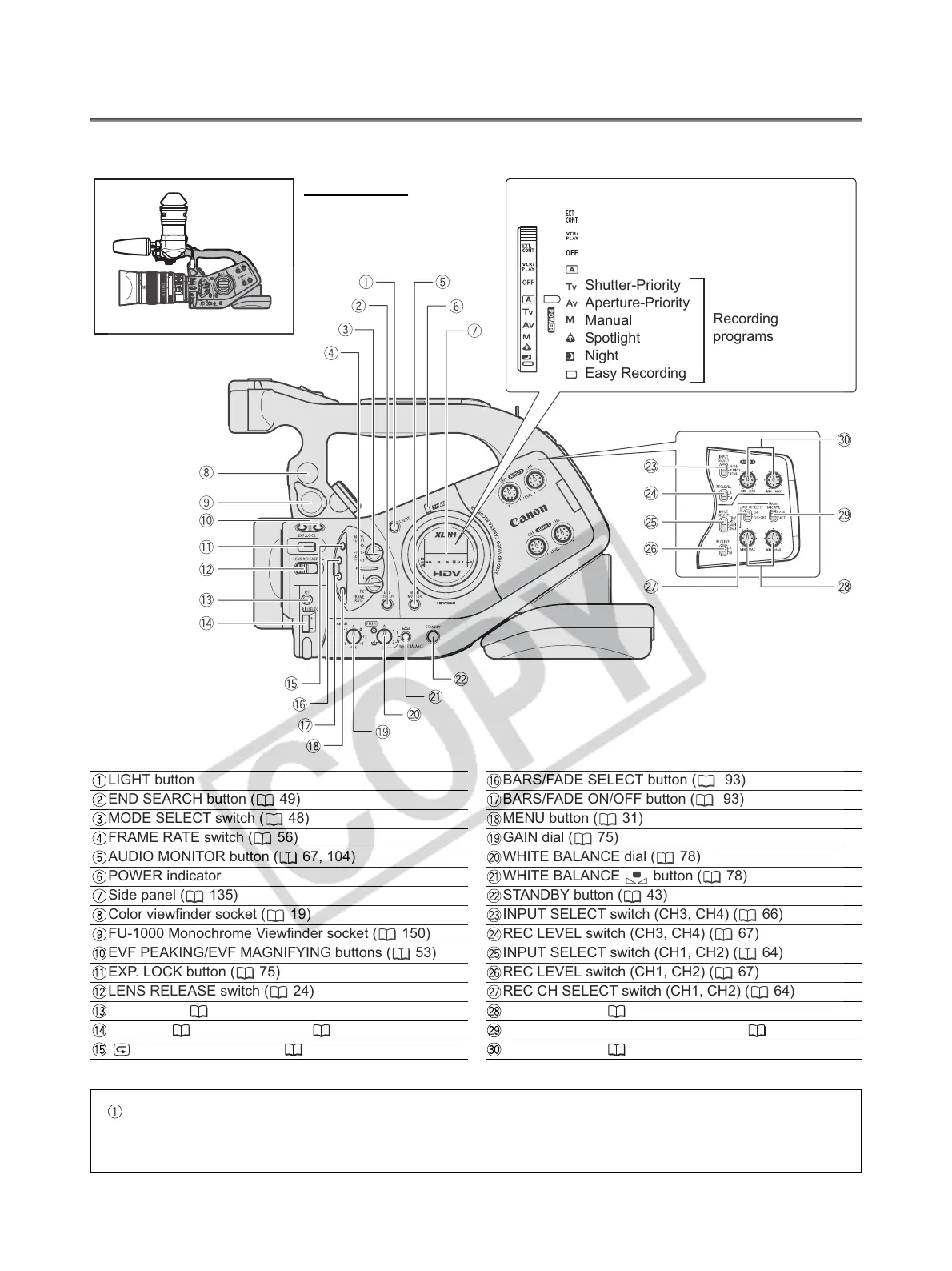

Left side view
Recording
programs
POWER dial
LIGHT button
END SEARCH button ( 49)
MODE SELECT switch ( 48)
FRAME RATE switch ( 56)
AUDIO MONITOR button ( 67, 104)
POWER indicator
Side panel ( 135)
Color viewfinder socket ( 19)
FU-1000 Monochrome Viewfinder socket ( 150)
EVF PEAKING/EVF MAGNIFYING buttons ( 53)
EXP. LOCK button ( 75)
LENS RELEASE switch ( 24)
SET button ( 31)
IRIS dial ( 73)/SELECT dial ( 31)
(record review) button ( 46)
BARS/FADE SELECT button ( 93)
BARS/FADE ON/OFF button ( 93)
MENU button ( 31)
GAIN dial ( 75)
WHITE BALANCE dial ( 78)
WHITE BALANCE button ( 78)
STANDBY button ( 43)
INPUT SELECT switch (CH3, CH4) ( 66)
REC LEVEL switch (CH3, CH4) ( 67)
INPUT SELECT switch (CH1, CH2) ( 64)
REC LEVEL switch (CH1, CH2) ( 67)
REC CH SELECT switch (CH1, CH2) ( 64)
CH1/CH2 dials ( 67)
FRONT MIC ATT. switch (CH1, CH2) ( 64)
CH3/CH4 dials ( 67)
LIGHT Button
Press the LIGHT button to illuminate the side panel for approximately 10 seconds. Keep the button pressed for at
least 3 seconds, to keep the panel illuminated until you press the LIGHT button once more to turn the backlight off.

Canon XL H1 Specifications

General

Filter size	72 mm
Optical zoom	20 x
Image stabilizer	Yes
Focal length (35mm film equivalent)	38.9 - 778 mm
Sensor type	-
Total megapixels	1.67 MP
Effective megapixels (movie)	- MP
Focus	Auto/Manual
I/O ports	- IEEE1394 - EVF - SD in/out - S-Video - Headphone
Power consumption (typical)	7.8 W
Display diagonal	2.4 \
Maximum frame rate	25 fps
Camcorder tape type	Mini-DV
Compatible memory cards	MMC, SD
Firewire (IEEE 1394) ports	2
Product color	Black
Battery life (max)	5 h
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	496 mm
Width	226 mm
Height	220 mm
Weight	3750 g
