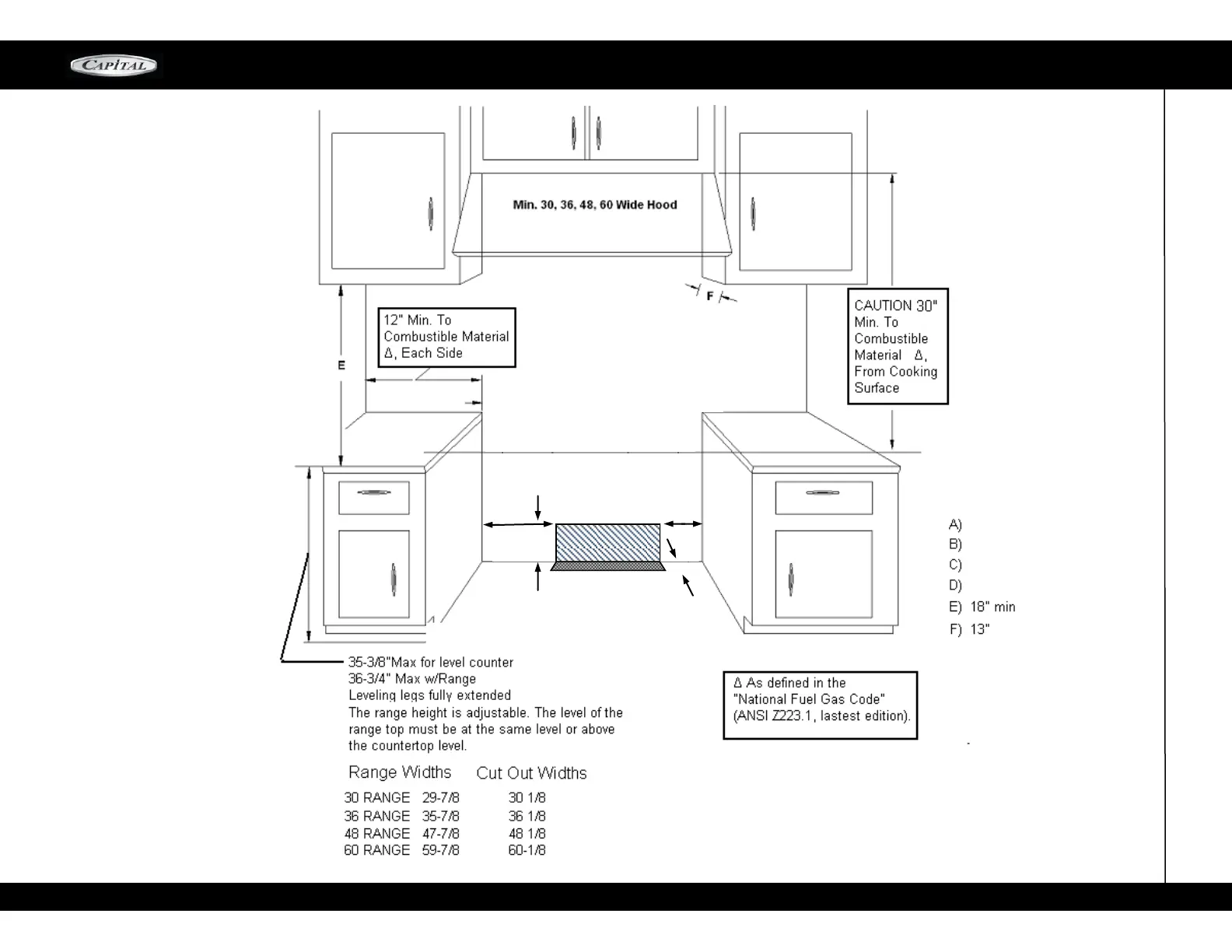

CABINET INSTALL DRAWING / FRONT VIEW
FIG 1A. Cabinet Clearances:
MCOR-SERIES
ELECTRICAL AND GAS
SUPPLY
A
B
10”
4”
10”
2-1/2”
D
C
min
