Capital PSGR244 - Cabinet Clearances

6
step 3a: cabinet preparation (cont.)

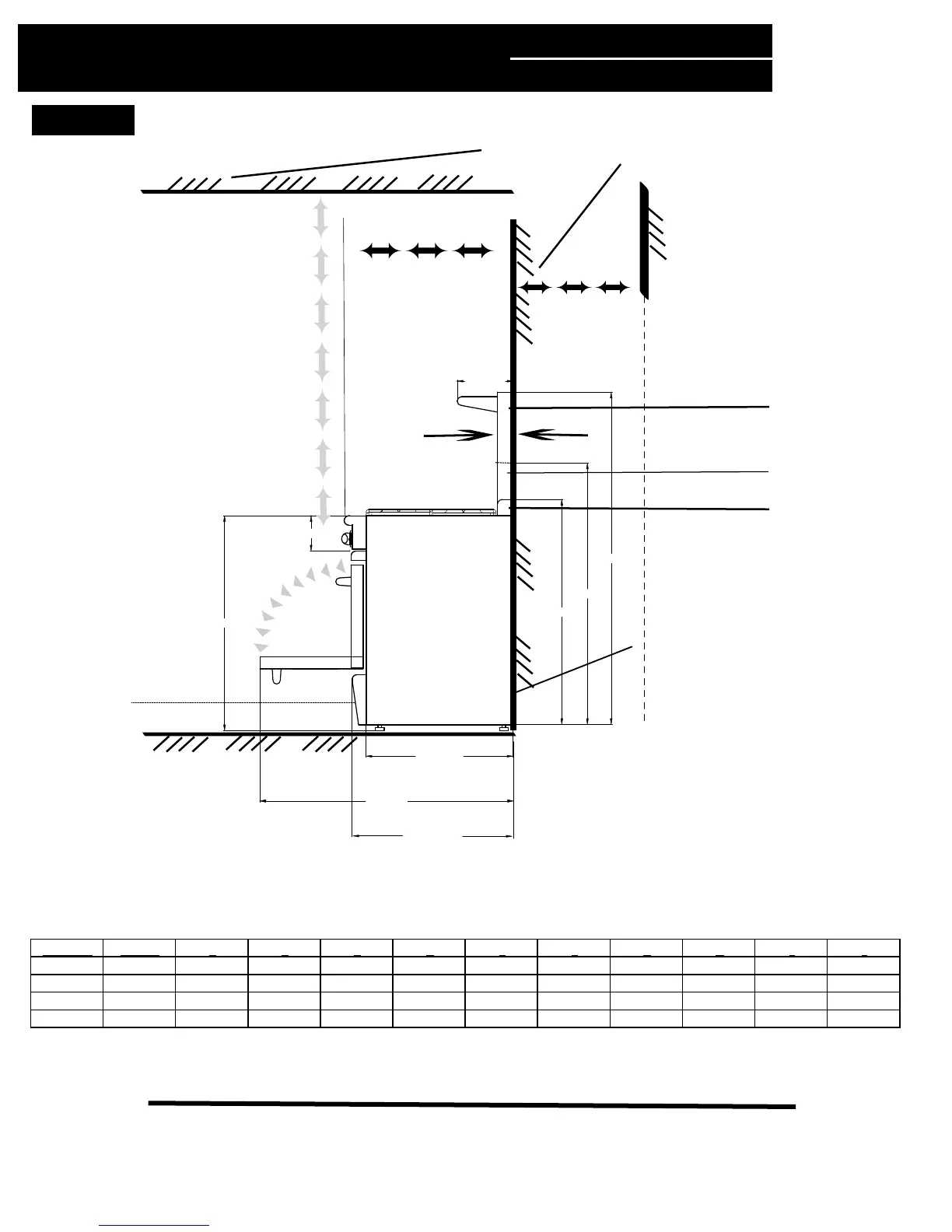

Fig. 2
10-3/4"
wall
O" Clearance
G
H
40" Min. to
Combustibles
Combustible Materials
LOW BACK 12"
ISLAND TRIM
HIGH SHELF 22"
KICKPLATE
A
B
J
D
E
F
I
C
12" Min. to
Combustibles
without backguard
MODEL # WIDTH A B C D E F G H I J
PSGR24 23-7/8" 25" 43-1/4" 27-3/8" 38-5/8" 44-1/2" 58-1/2" 1-5/16" 28-1/4" 6" 36-1/2"
PSGR30 29-7/8" 25" 43-1/4" 27-3/8" 38-5/8" 44-1/2" 58-1/2" 1-5/16" 28-1/4" 6" 36-1/2"
PSGR36 35-7/8" 25" 43-1/4" 27-3/8" 38-5/8" 44-1/2" 58-1/2" 1-5/16" 28-1/4" 6" 36-1/2"
PSGR48 47-7/8" 25" 43-1/4" 27-3/8" 38-5/8" 44-1/2" 58-1/2" 1-5/16" 28-1/4" 6" 36-1/2"
