29Instruction manual C981G & C1081GPlease keep this instruction manual for future reference
GAS CONVERSION AND ADJUSTMENTS
If the appliance is prearranged for a type of gas different from the available type, the burner
nozzles must be changed and the control card must be set up with the parameters relative to the
new configuration.
CHANGING THE NOZZLES:
Choose the required nozzles with reference to the following “Technical Specifications” table.
Proceed as follows:
› Remove the pan stands and burners from the hob.

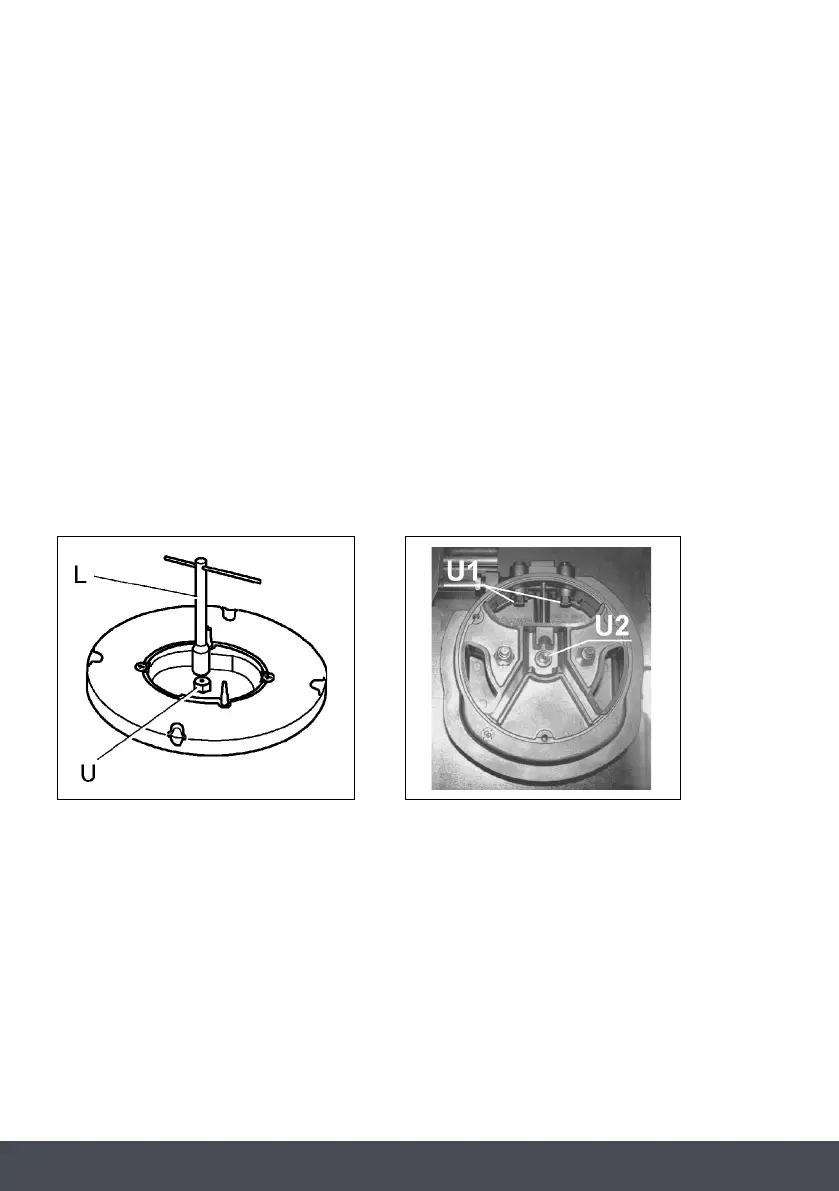

› Unscrew nozzles U (Fig.5) and U1/U2 (Fig.6) using a socket spanner (L), and replace with the
correct nozzle for the available gas type.
› Secure the nozzle without over-tightening.
G A S CONVERSION AND ADJUSTMENTS
If the appliance is prearranged for a type of gas different from the available type, the burner nozzles
must be changed and the control card must be set up with the parameters relative to the new
configuration.
C H A NG I N G THE NOZZLES:
Choose the required nozzles with reference to the following “Technical Specifications” table.
Proceed as follows:
› Remove the pan stands and burners from the hob.
› Unscrew nozzles U (Fig.5) and U1/U2 (Fig.6) using a socket spanner (L),
and replace with the correct nozzle for the available gas type.
› Secure the nozzle without over-tightening.
Fig.5
Fig.6
G A S CONVERSION AND ADJUSTMENTS
If the appliance is prearranged for a type of gas different from the available type, the burner nozzles
must be changed and the control card must be set up with the parameters relative to the new
configuration.
C H A NG I N G THE NOZZLES:
Choose the required nozzles with reference to the following “Technical Specifications” table.
Proceed as follows:
› Remove the pan stands and burners from the hob.
› Unscrew nozzles U (Fig.5) and U1/U2 (Fig.6) using a socket spanner (L),
and replace with the correct nozzle for the available gas type.
› Secure the nozzle without over-tightening.
Fig.5
Fig.6
FIG.5 FIG.6
