ELECTRICAL CONNECTION OF THE HOB
Monophase 220-240V (UK installation):

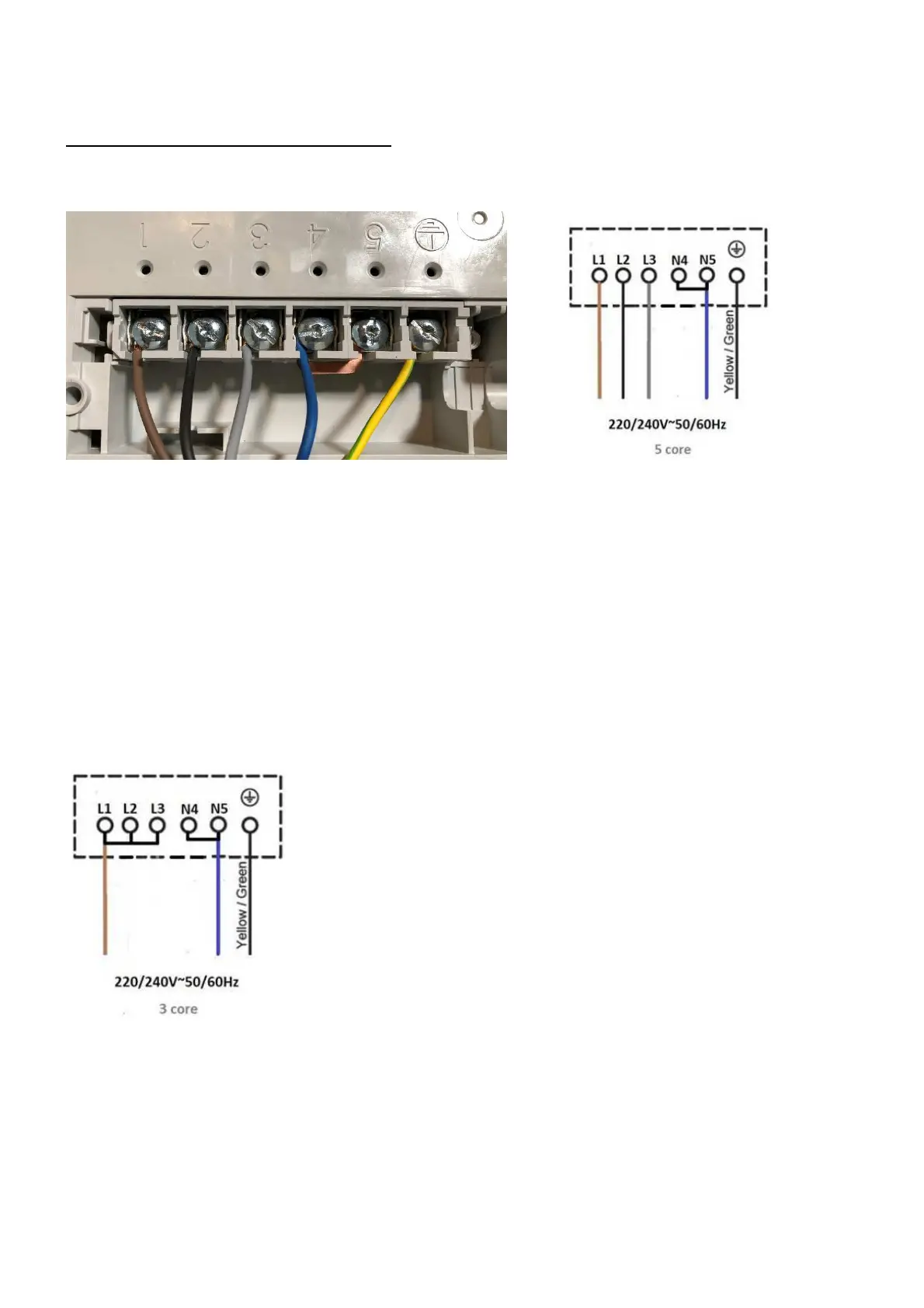

The hob is supplied as a 5-core connection as per the below images:
1, 2 & 3 = Live
4 & 5 = Neutral
Earth = Earth
Live wires 1, 2 & 3 will all need to be connected to the mains live supply.
Alternatively, you can change the configuration of the electrical connection in the hob to 3 cores
as shown below (hob not supplied with 3 core cable).
WARNING: Ensure a suitably qualified person completes this, and in compliance to any local
regulations and standards in force.
