Caple CM111 - Fitting the Appliance; Dimensions

Instruction manual CM111, CM111SS & CM111GM12
Please keep this instruction manual for future reference

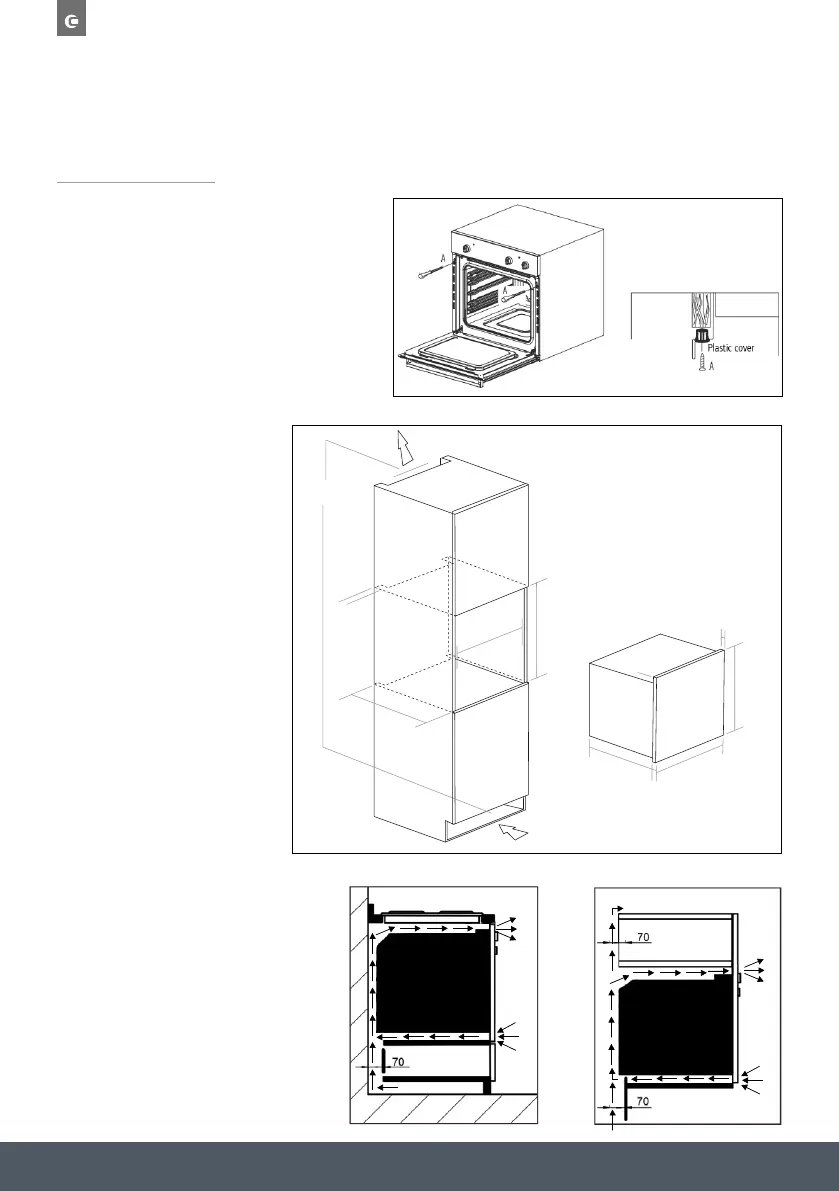

Fit the appliance into its surround (beneath
a worktop or above another appliance in a
tall housing) by inserting screws and plastic
covers into the 4 holes (A - fig.3) that can
be seen in the frame of the oven when the
door is open.
For the most efficient air
circulation, the microwave
oven should be fitted
according to the dimensions
shown in fig.1.
DIMENSIONS
min. 550mm
565mm
450mm
70mm
Ventilation Slot
70mm
547.4mm
22mm
8.6mm
453.6mm
21.6mm
595mm
Fig 5.Fig 4.
The rear panel of the cabinet must
be removed so that air can circulate
freely. The panel to which the
microwave oven is fitted should have
a gap of at least 70 mm at the rear
for ventilation (fig.4 & fig.5).
Fig 1.
Fig 3.
FITTING THE APPLIANCE
